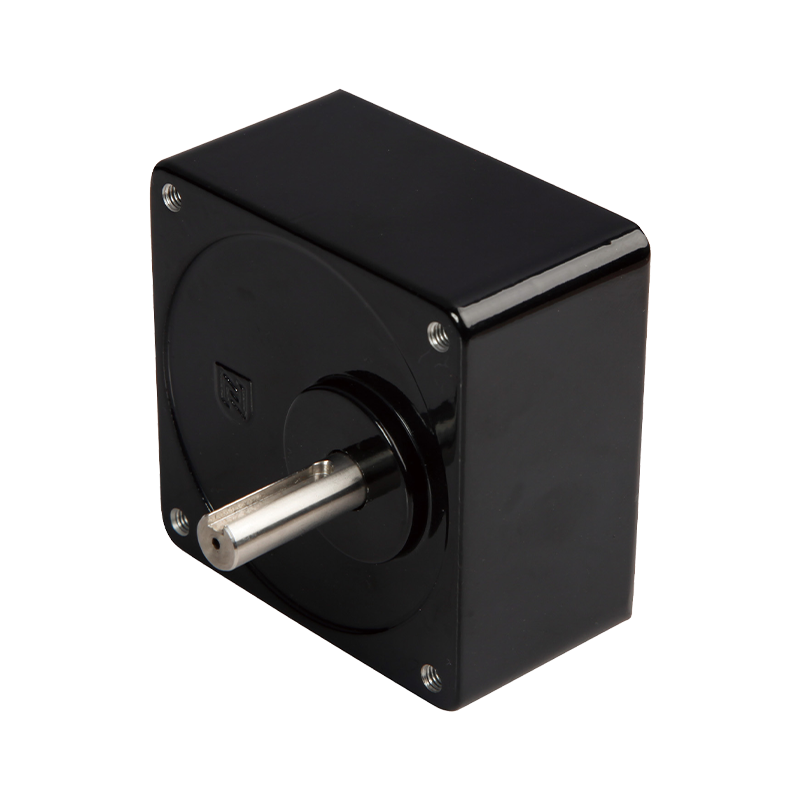

80JB100K 80mm Reinforce Spur Gear Gearbox

80JB100K 80mm Reinforce Spur Gear Gearbox

The 80JB100K is a high-performance square gear reducer for a variety of applications requiring precise torque control.
Parallel gear box can be selected according to different load requirements, suitable gear module, tooth width and material. By increasing the modulus and tooth width of the gear, the load carrying capacity of the gear can be improved, so that it can withstand large torque and load. For heavy-duty applications, high-strength alloy steel can be used to manufacture gears, and appropriate heat treatment, such as quenching, carburizing, etc., to improve the tooth surface hardness and core strength of the gear, so as to meet the requirements of large machinery, mining machinery, etc., for high load capacity.

  • 80JB100K 80mm Reinforce Spur Gear Gearbox
Download Product Inquiry
PREV：90CJB400K 90mm 12V/24V Spur Gear Gearbox
NEXT：80CJB250K 80mm Durable Spur Gear Gearbox

+86 0579-86817938-836

[email protected]

80mm Spur Gear Gearbox 80JB100K

80mm Spur Gearbox,

Permissible Load Range: 10N.m

Spur Gearbox

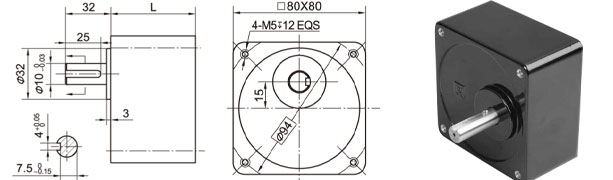

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

5 ~ 18

32

Stage2

20 ~ 50

43

Stage3

60 ~ 200
Parameter

Parameter

Stage2

Stage3

Stage4

Transmission efficiency

81%

73%

66%

Rated tolerance torque

3N.m

5N.m

10N.m

Input and output direction

Same direction

Reverse direction

Same direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃ ~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤150N

Max. shaft axial load

≤50N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤ 0.4mm

Backlash at no-load

≤ 3°

Shaft press fit force, max

≤200N
