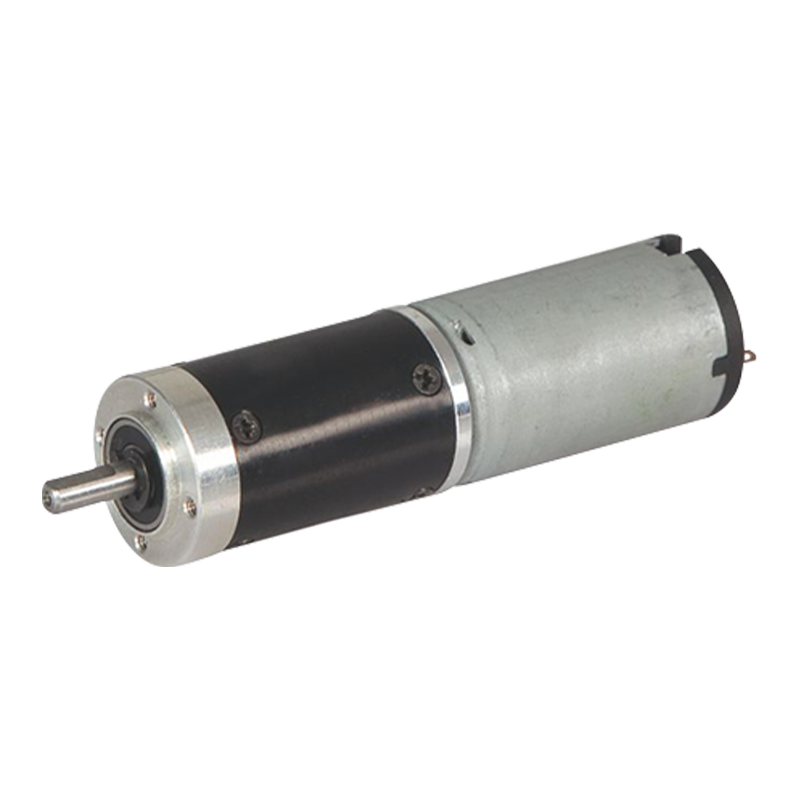

22JN10K/22ZY38 22mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

22JN10K/22ZY38 22mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

The inner gear ring of the 22JN10K/22ZY38 permanent magnet DC planetary gear motor is made of metal material, with an outer diameter of 22mm. It supports dual voltages of 12V and 24V, has a no-load speed of 3000-6000 rpm, and is suitable for various scenarios.
This product combines the simple drive characteristics of DC brushed motors with the high torque amplification capability of planetary gear systems. Its core performance features include high starting torque, low cost, easy control, and strong maintenance flexibility.

  • 22JN10K/22ZY38 22mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

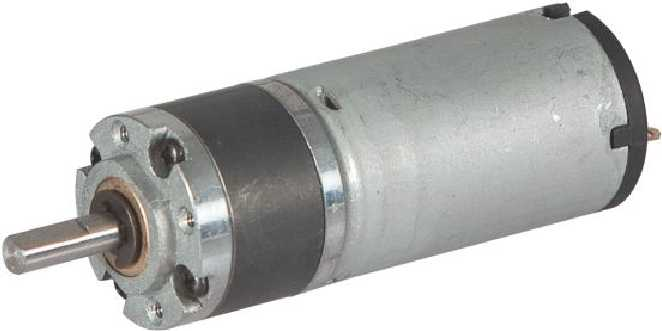

22JN10K/22ZY38

22mm OD Planetary Gearbox,

Permissible Load Range: 0.1N.m~1.0

PM DC Planetary Gear Motor (Ring Gear Material: Powder Metal)

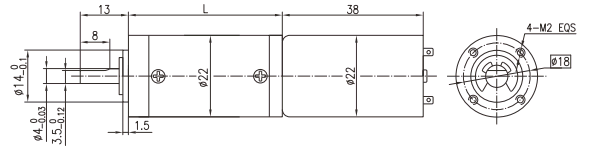

Dimensions

The diameter of the gearbox output shaft can be madeΦ6, the shaft length can be made 20.

Motor Technical Data

Type

Rated

voltage

VDC

No-load

Speed

r/min

No-load

Current

mA

Rated

Speed

r/min

Rated

Torque

mN.m

Output

power

W

Rated

current

mA

Stall

Torque

mN.m

Stall

current

A

22ZY38B-1230

12

3000

70

2200

3

0.7

135

9.3

0.26

22ZY38B-1260

12

6000

100

5000

3

1.56

250

17

0.87

Gear Motor Technical Data

Configure 22ZY38B-1230 (22ZY38B-1230 DC Motor)

Reduction ratio

4

4.75

16

19

22

64

76

90

107

256

304

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

13.0

13.0

16.7

16.7

16.7

20.4

20.4

20.4

20.4

24.1

24.1

No-load speed       r/min

750

632

188

158

136

47

39

33

28

12

10

Rated speed          r/min

550

463

138

116

100

34

29

24

21

8.6

7.2

Rated torque          N.m

0.011

0.013

0.039

0.046

0.053

0.14

0.17

0.20

0.23

0.3

0.3

Max. permissible load in a short time

0.09

0.09

0.45

0.45

0.45

0.75

0.75

0.75

0.75

0.9

0.9

Configure 22ZY38B-1260 (22ZY38B-1260 DC Motor)

Reduction ratio

4

4.75

16

19

22

64

76

90

107

256

304

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

 Length(L) mm

13.0

13.0

16.7

16.7

16.7

20.4

20.4

20.4

20.4

24.1

24.1

No-load speed      r/min

1500

1263

375

316

273

94

79

67

56

23

20

Rated speed         r/min

1250

1035

313

263

227

78

66

56

47

20

16

Rated torque         N.m

0.011

0.013

0.039

0.046

0.053

0.14

0.17

0.20

0.23

0.3

0.3

Max. permissible load in a short time

0.09

0.09

0.45

0.45

0.45

0.75

0.75

0.75

0.75

0.9

0.9

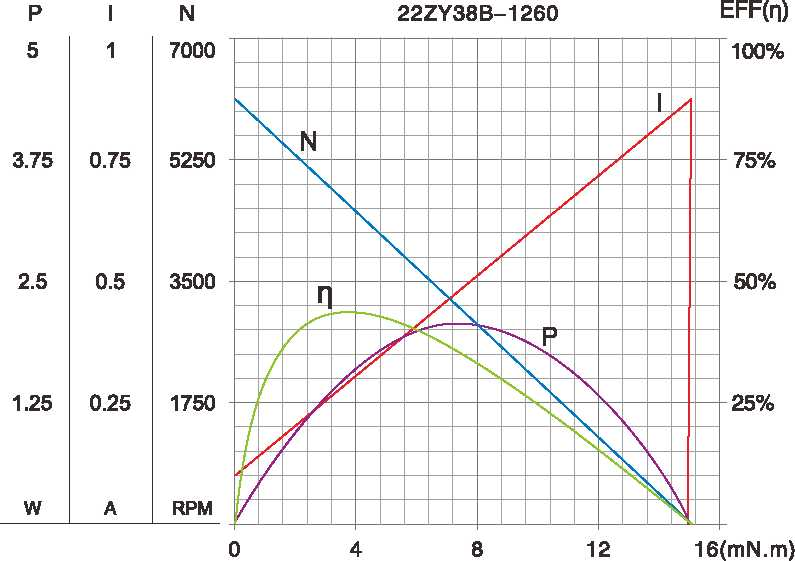

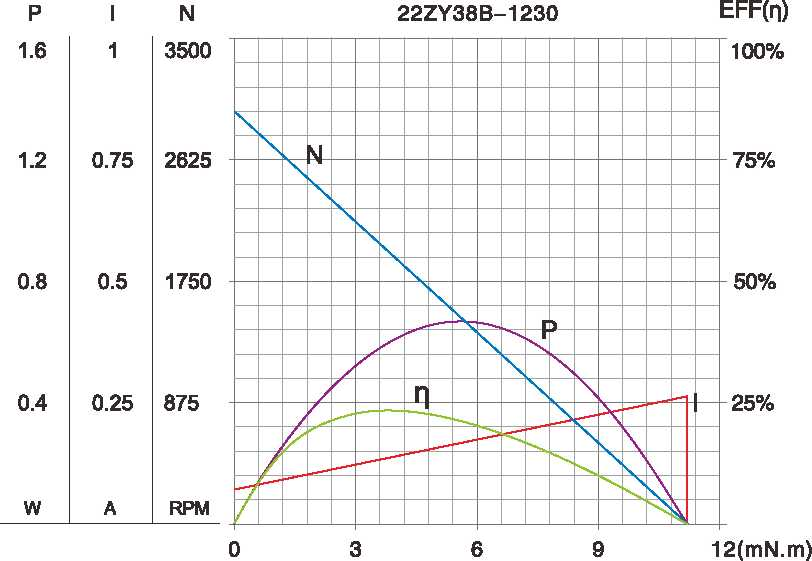

Motor Characteristic Figure

A-1

Technical parameters are subject to change without prior notice.*
