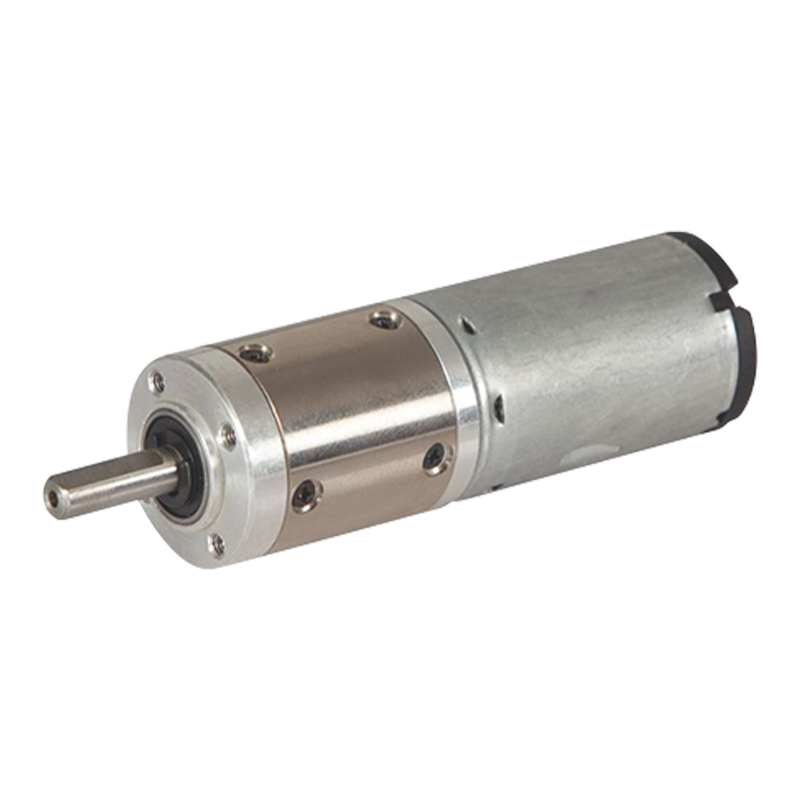

28JN30K/28ZY47 28mm 6000rpm Permanent Magnet DC Brushed Planetary Gear Motor

28JN30K/28ZY47 28mm 6000rpm Permanent Magnet DC Brushed Planetary Gear Motor

The 28JN30K/28ZY47 permanent magnet DC planetary gear motor uses a metal planetary gear structure with an outer diameter of 28 mm, allowing a torque range of 0.3N.m to 3.0N.m. Support 12v/24v dual voltage, no-load speed is 6000rpm.
The product, combined with the appropriate control system, can achieve a high position accuracy, suitable for some position control requirements strict occasions. Within a certain load range, the efficiency is higher, the planetary gear transmission efficiency is higher, and under the right load conditions, the entire motor system can maintain a good energy conversion efficiency and reduce energy consumption.

  • 28JN30K/28ZY47 28mm 6000rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：28JXF10K/28ZY38 28mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：28JN30K/28ZY38 28mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

28JN30K/28ZY47

28mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

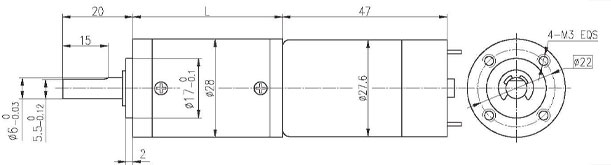

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY47-1260

12

6000

130

5200

7.7

4.2

500

23

1.5

28ZY47-2460

24

6000

80

5140

9.2

5.0

300

28

0.9



Gear Motor Technical Data

Configuration 28ZY47-1260 DC Motor(28ZY47-1260 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

No-load speed r/min

1617

1158

429

316

222

171

118

85

60

43

32

23

16

12

10

Rated speed r/min

1402

1004

371

274

193

149

102

73

52

37

28

20

14

11

8.7

Rated torque N.m

0.026

0.036

0.087

0.12

0.17

0.22

0.29

0.4

0.56

0.78

0.95

1.3

1.8

2.5

3

Max. permissible load in a short time N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6
Configuration 28ZY47-2460 DC Motor(28ZY47-2460 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

No-load speed r/min

1617

1158

429

316

222

171

118

85

60

43

32

23

16

12

10

Rated speed r/min

1385

992

367

271

190

147

101

72

51

37

27

19

14

10

8.6

Rated torque N.m

0.031

0.043

0.104

0.14

0.2

0.26

0.34

0.48

0.67

0.93

1.1

1.6

2.2

3

3

Max. permissible load in a short time N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6

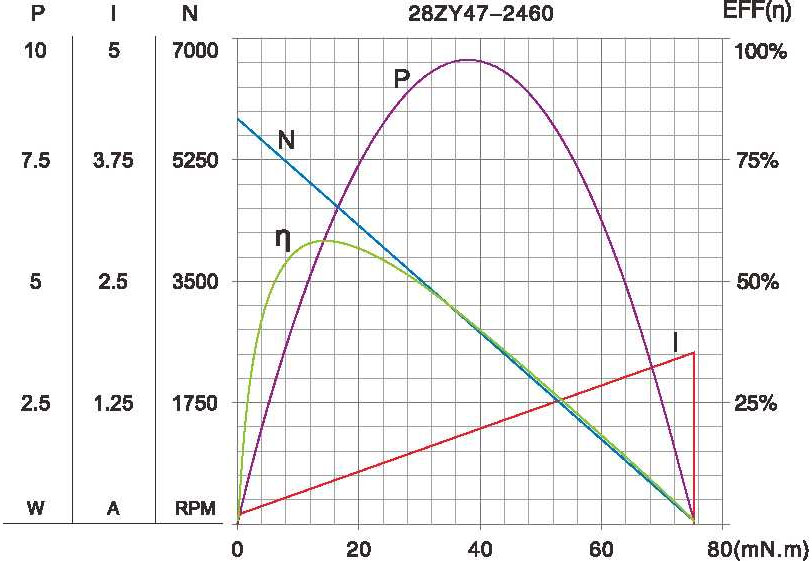

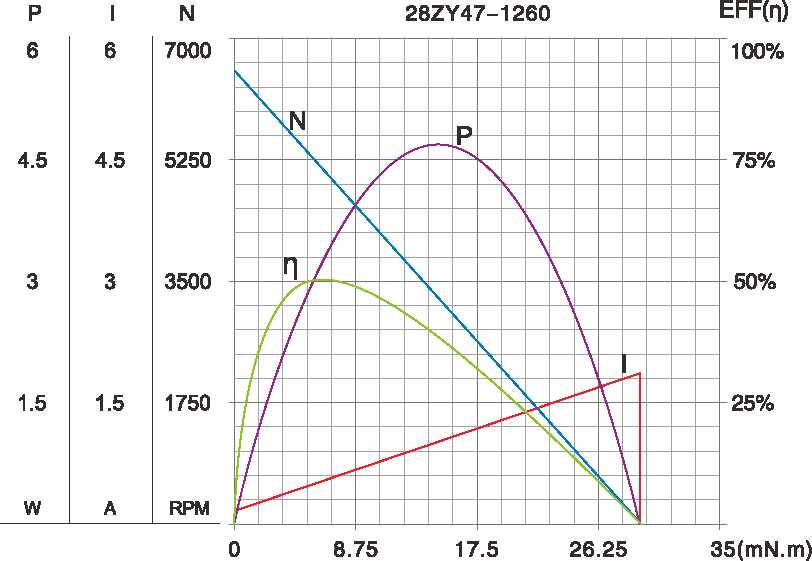

Motor Characteristic Figure

A-6

Technical parameters are subject to change without prior notice.*
