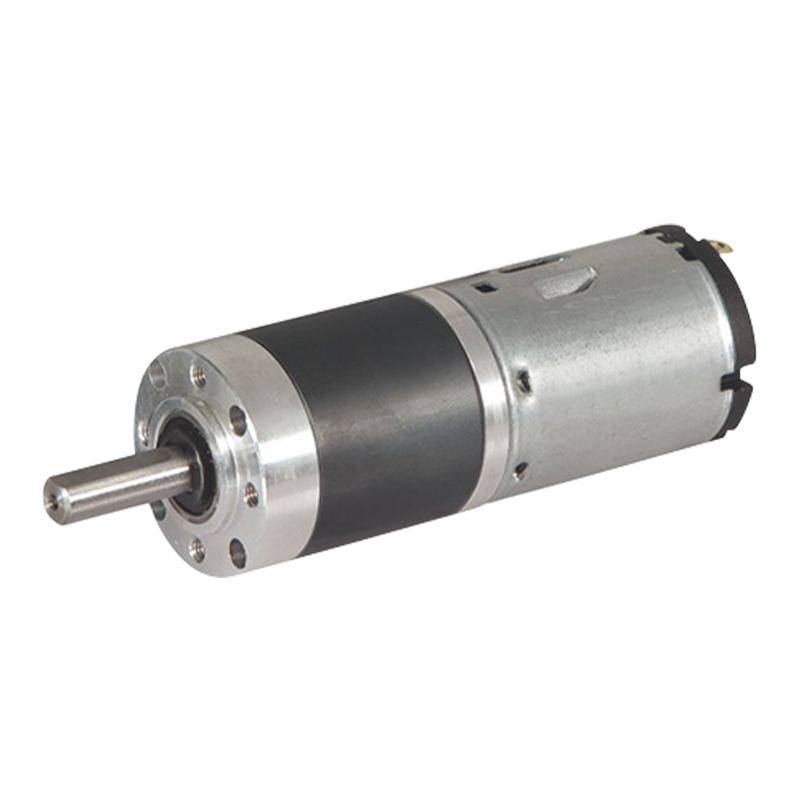

28JXF10K/28ZY38 28mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

28JXF10K/28ZY38 28mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 28JXF10K/28ZY38 permanent magnet DC planetary gear motor uses a metal planetary gear structure with an outer diameter of 28 mm, allowing a torque range of 0.1N.m to 1.0N.m. Support 12v/24v dual voltage, no-load speed is up to 4000-5000rpm.
The 28JXF10K/28ZY38 combines the simple drive characteristics of a DC brush motor with the high torque amplification capabilities of a planetary gear system. The planetary gear is compact and durable, takes up little space, and the gear is precision machined and well lubricated, with high wear resistance and reliability, and can run stably for a long time.

  • 28JXF10K/28ZY38 28mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：30JN30K/28ZY47P 30mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：28JN30K/28ZY47 28mm 6000rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

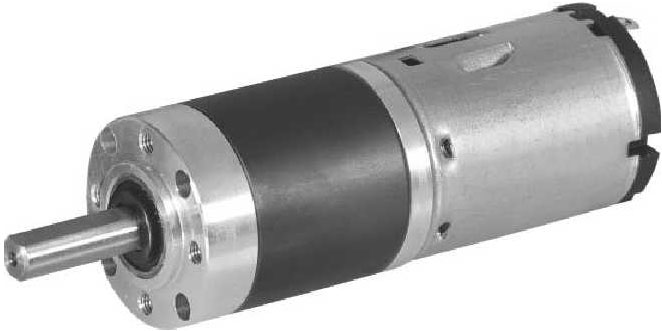

28JXF10K/28ZY38

28mm OD Planetary Gearbox,

Permissible Load Range: 0.1N.m~1.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Powder Metal)

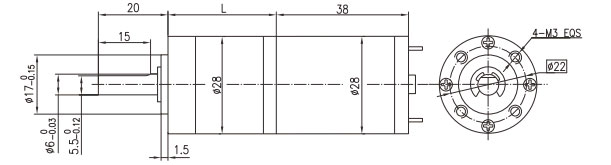

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY38-1240

12

4000

80

2600

7

1.86

350

20

0.75

28ZY38-1250

12

5000

100

3450

7

2.48

370

21.5

0.9

28ZY38-2450

24

5000

60

4000

6.9

2.87

200

22

0.6

Gear Motor Technical Data

Configuration 28ZY38-1240 DC Motor(28ZY38-1240 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

22.6

22.6

29.2

29.2

29.2

35.6

35.6

35.6

35.6

42

42

42

No-load speed r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated speed r/min

701

502

186

137

96

51

37

26

19

14

10

7

Rated torque N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.4

2.4

2.4

2.4

3

3

3
Configuration 28ZY38-1250 DC Motor(28ZY38-1250 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

22.6

22.6

29.2

29.2

29.2

35.6

35.6

35.6

35.6

42

42

42

No-load speed r/min

1348

965

357

263

185

98

70

50

36

26

19

14

Rated speed r/min

930

666

246

182

128

68

49

35

25

18

13

9.3

Rated torque N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.4

2.4

2.4

2.4

3

3

3
Configure 28ZY38-2450 DC Motor(28ZY38-2450 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

22.6

22.6

29.2

29.2

29.2

35.6

35.6

35.6

35.6

42

42

42

No-load speed r/min

1348

965

357

263

185

98

70

50

36

26

19

14

Rated speed r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated torque N.m

0.023

0.032

0.078

0.11

0.15

0.26

0.36

0.5

0.7

0.85

1

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.4

2.4

2.4

2.4

3

3

3
