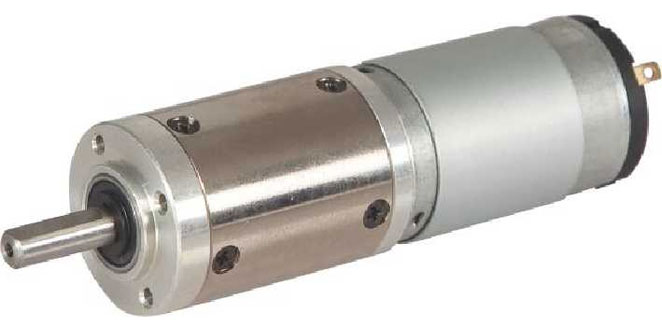

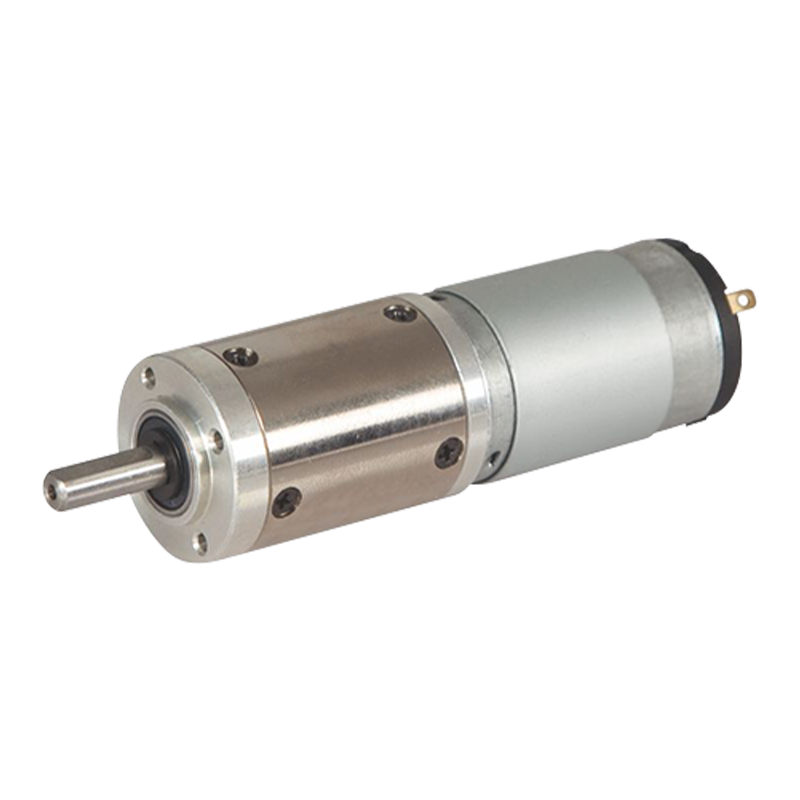

30JN30K/28ZY47P 30mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

30JN30K/28ZY47P 30mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

30JN30K/28ZY47P permanent magnet DC planetary gear motor inner ring made of metal material, outer diameter 30 mm. Support 12V/24V dual voltage, no-load speed 7300rpm, allowing a torque range of 0.3N.m~3.0N.m.

The planetary gear mechanism of the product has a good torque amplification effect, which can double the output torque of the motor to meet the high load demand. For example, in the joint drive of industrial robots, the robot arm can be easily driven to complete various actions.

The product can adjust the speed in a wide range by changing the input voltage or using the speed control controller to adapt to different working scenarios. As in electric vehicles, the motor speed can be adjusted flexibly according to the driving speed requirements.

  • 30JN30K/28ZY47P 30mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：32JXE20K/28ZY38P 32mm 0.2-2N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：28JXF10K/28ZY38 28mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

30JN30K/28ZY47P

30mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

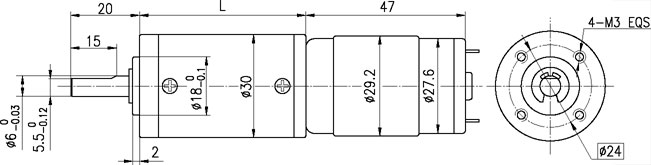

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY47P-1273

12

7300

150

5950

10.8

6.7

900

32

2.7

28ZY47P-2473

24

7300

80

6160

12.7

8.2

500

38

1.5

Gear Motor Technical Data

Configuration 28ZY47P-1273 DC Motor(28ZY47P-1273 DC Motor)

Reduction ratio

3

5.2

14

19

27

35

51

71

100

139

189

264

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

28

21

15

12

Rated speed r/min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated torque N.m

0.036

0.05

0.12

0.17

0.24

0.31

0.4

0.56

0.79

1.1

1.3

1.9

2.5

3

3

Max. permissible load in a short time N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6
Configuration 28ZY47P-2473 DC Motor(28ZY47P-2473 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

28

21

15

12

Rated speed r/min

1660

1189

440

324

228

176

121

87

62

44

33

23

17

12

10

Rated torque N.m

0.042

0.059

0.14

0.2

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2.2

2.9

3

3

Max. permissible load in a short time N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6

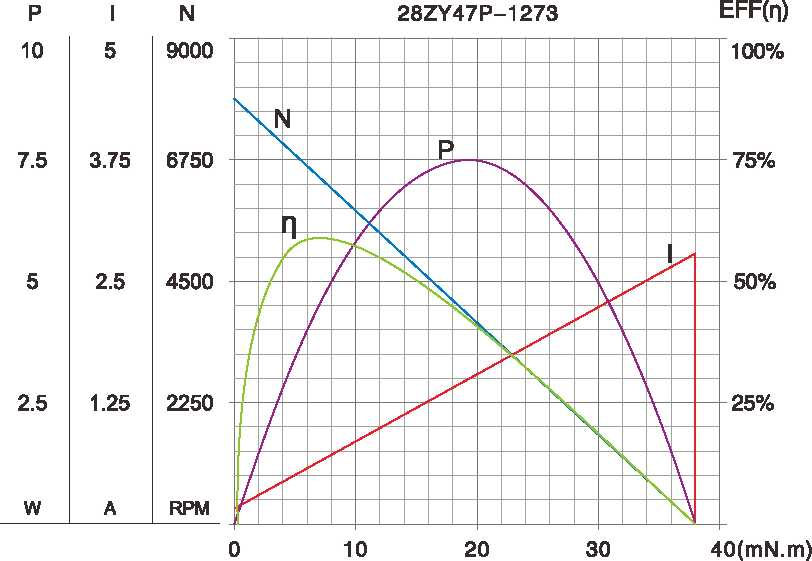

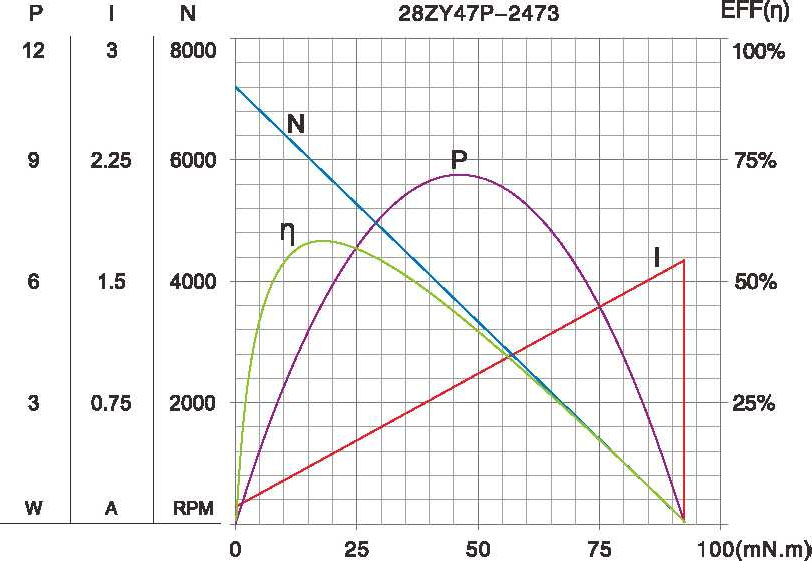

Motor Characteristic Figure

A-8

Technical parameters are subject to change without prior notice.*
