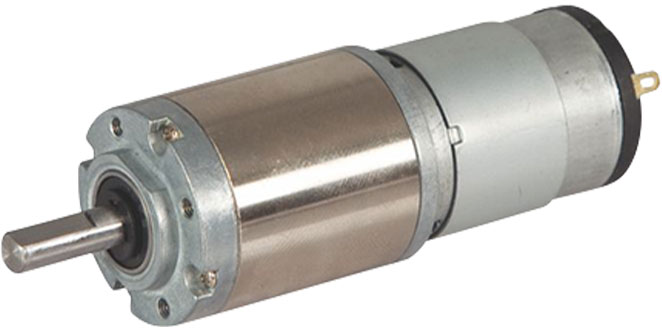

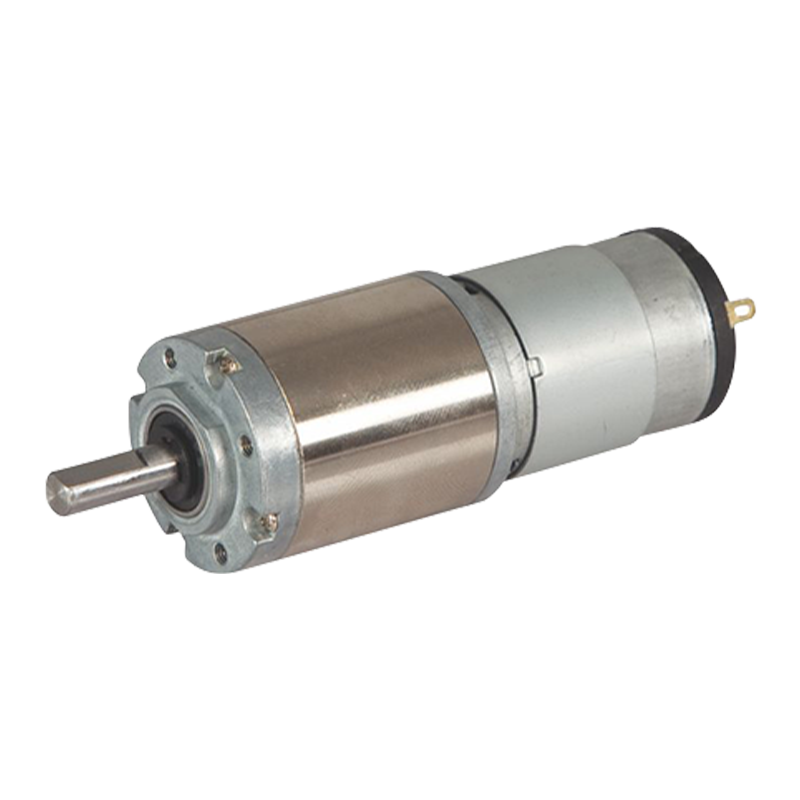

32JXE20K/28ZY38P 32mm 0.2-2N.m Permanent Magnet DC Brushed Planetary Gear Motor

32JXE20K/28ZY38P 32mm 0.2-2N.m Permanent Magnet DC Brushed Planetary Gear Motor

32JXE20K/28ZY38P permanent magnet DC planetary gear motor inner ring made of metal material, outer diameter 32 mm. Support 12V/24V dual voltage, allowable torque range: 0.2N.m~2.0N.m, no-load speed 6500 rpm.
Products have efficient transmission capacity, planetary gear transmission structure is compact, high transmission efficiency, generally up to 90%-95%. This means that in the process of energy transfer, energy loss is small, energy can be effectively used, and battery life is extended, which has obvious advantages in battery-powered devices such as handheld power tools.
The planetary gear mechanism of the planetary gear motor is evenly distributed by a number of gears, which jointly bear the load, making the whole transmission system strong and able to withstand greater impact force and vibration. It can still operate stably in some harsh working environments, such as mines and construction sites.

  • 32JXE20K/28ZY38P 32mm 0.2-2N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：32JXE20K/28ZY47P 32mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：30JN30K/28ZY47P 30mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

32JXE20K/28ZY38P

32mm OD Planetary Gearbox,

Permissible Load Range: 0.2N.m~2.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

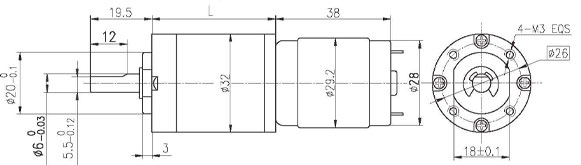

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY38P-1265

12

6500

150

5250

7.6

4.2

530

38

2.65

28ZY38P-2465

24

6500

85

5250

7.6

4.2

250

38

1.25

Gear Motor Technical Data

Configuration 28ZY38P-1265 DC Motor(28ZY38P-1265 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

516

721

939

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

4

Length(L) mm

20.7

20.7

27.3

27.3

27.3

27.3

33.6

33.6

33.6

33.6

39.9

39.9

39.9

39.9

39.9

39.9

No-load speed r/min

1752

1255

464

342

241

186

127

92

65

47

34

25

18

13

9

6.9

Rated speed r/min

1415

1014

375

276

194

150

103

74

53

38

28

20

14

10

7.3

5.6

Rated torque N.m

0.025

0.035

0.086

0.12

0.17

0.22

0.28

0.39

0.55

0.77

0.93

1.3

1.8

2

2

2

Max. permissible load in a short time N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8
Configuration 28ZY38P-2465 DC Motor(28ZY38P-2465 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

516

721

939

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

4

Length(L) mm

20.7

20.7

27.3

27.3

27.3

27.3

33.6

33.6

33.6

33.6

39.9

39.9

39.9

39.9

39.9

39.9

No-load speed r/min

1752

1255

464

342

241

186

127

92

65

47

34

25

18

13

9

6.9

Rated speed r/min

1415

1014

375

276

194

150

103

74

53

38

28

20

14

10

7.3

5.6

Rated torque N.m

0.025

0.035

0.086

0.12

0.17

0.22

0.28

0.39

0.55

0.77

0.93

1.3

1.8

2

2

2

Max. permissible load in a short time N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

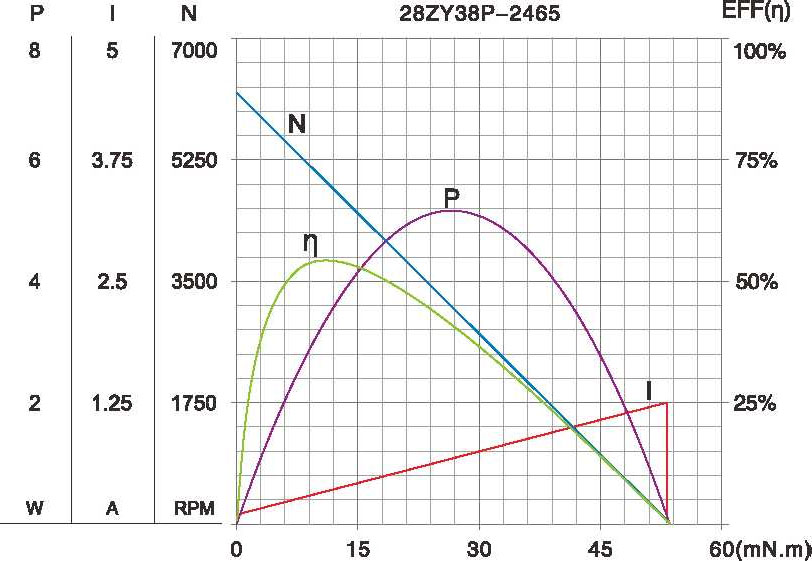

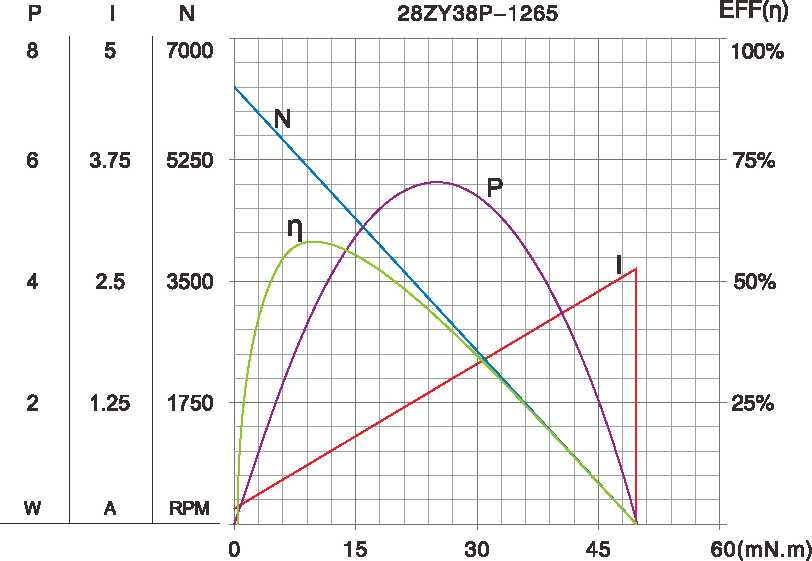

Motor Characteristic Figure

A-9

Technical parameters are subject to change without prior notice.*
