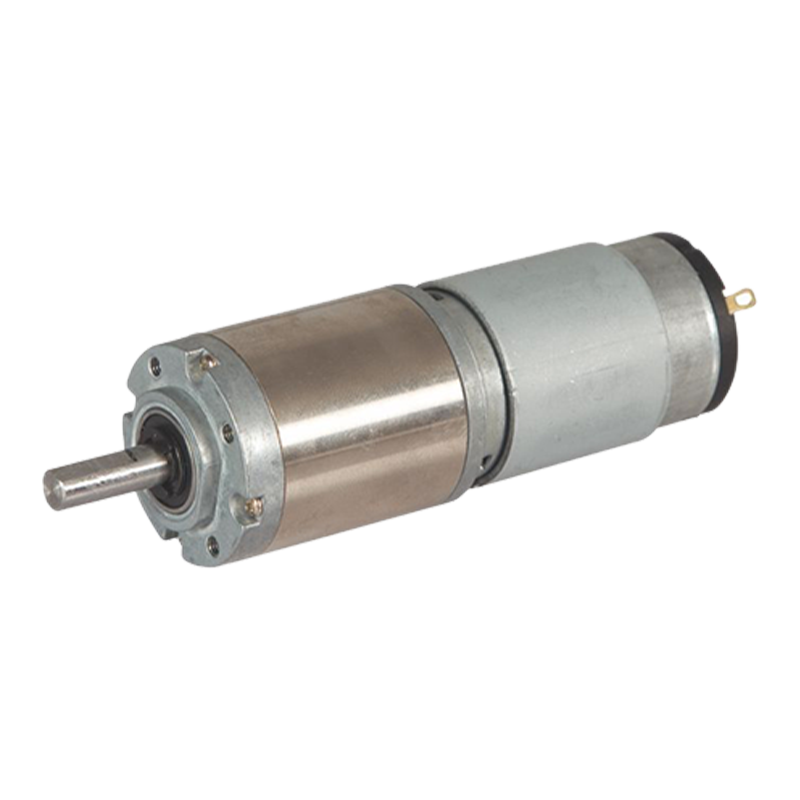

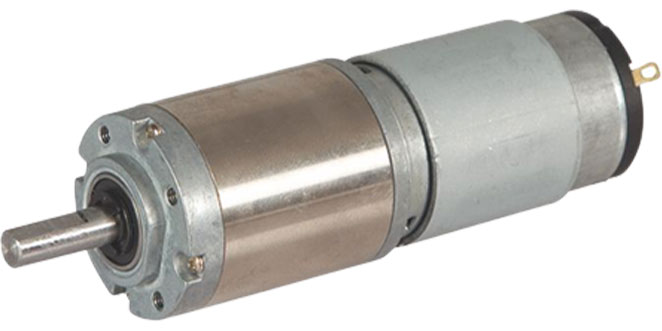

32JXE20K/28ZY47P 32mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

32JXE20K/28ZY47P 32mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

32JXE20k/28ZY47p permanent magnet DC planetary gear motor inner ring made of metal material, outer diameter 32 mm. Support 12v/24v dual voltage, no-load speed 7300rpm.

Product 32JXE20K/28ZY47P planetary gear drive smooth, low noise. The meshing between the gears is more uniform, the vibration and impact are small, and the noise is reduced. In some places with high noise requirements, such as office equipment, household robots, etc., it can provide a quiet working environment.

32jxe20k/28zy47p rapid response, the brush motor itself has a good dynamic response characteristics, combined with the stable transmission of the planetary gear mechanism, so that the brush planetary gear motor can quickly and accurately adjust the speed and torque after receiving the control signal, to achieve accurate control. In the positioning control of automated production lines, the movement position of mechanical components can be precisely controlled.

  • 32JXE20K/28ZY47P 32mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：32JXE30K/28ZY47P 32mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：32JXE20K/28ZY38P 32mm 0.2-2N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

32JXE20K/28ZY47P

32mm OD Planetary Gearbox,

Permissible Load Range: 0.2N.m~2.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

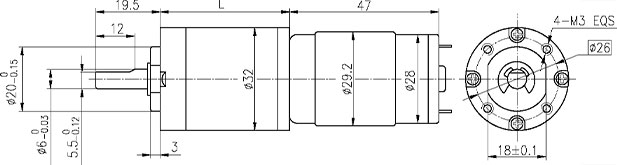

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY47P-1273

12

7300

150

5950

10.8

6.7

900

32

2.7

28ZY47P-2473

24

7300

85

6160

12.7

8.2

500

38

1.5

Gear Motor Technical Data

Configuration 28ZY47P-1273 DC Motor(28ZY47P-1273 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed r/min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated torque N.m

0.036

0.05

0.12

0.17

0.24

0.31

0.4

0.56

0.79

1.1

1.3

1.8

2

2

2

Max. permissible load in a short time N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8
Configuration 28ZY47P-2473 DC Motor(28ZY47P-2473 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed r/min

1660

1189

440

324

228

176

121

87

62

44

33

24

17

12

10

Rated torque N.m

0.042

0.059

0.14

0.2

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2

2

2

2

Max. permissible load in a short time N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

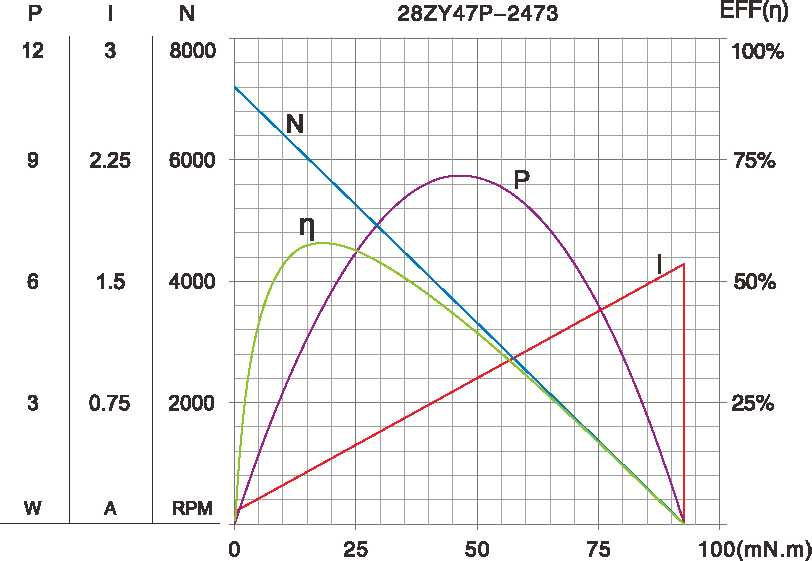

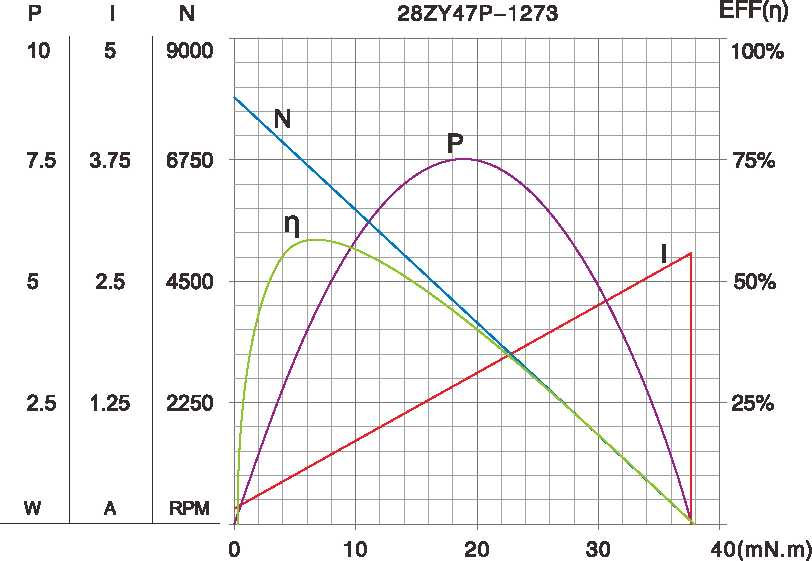

Motor Characteristic Figure

A-10

Technical parameters are subject to change without prior notice.*
