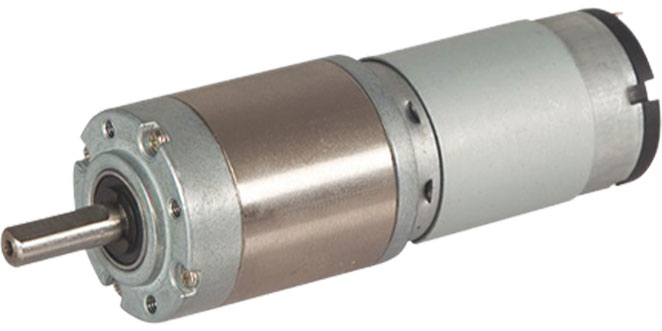

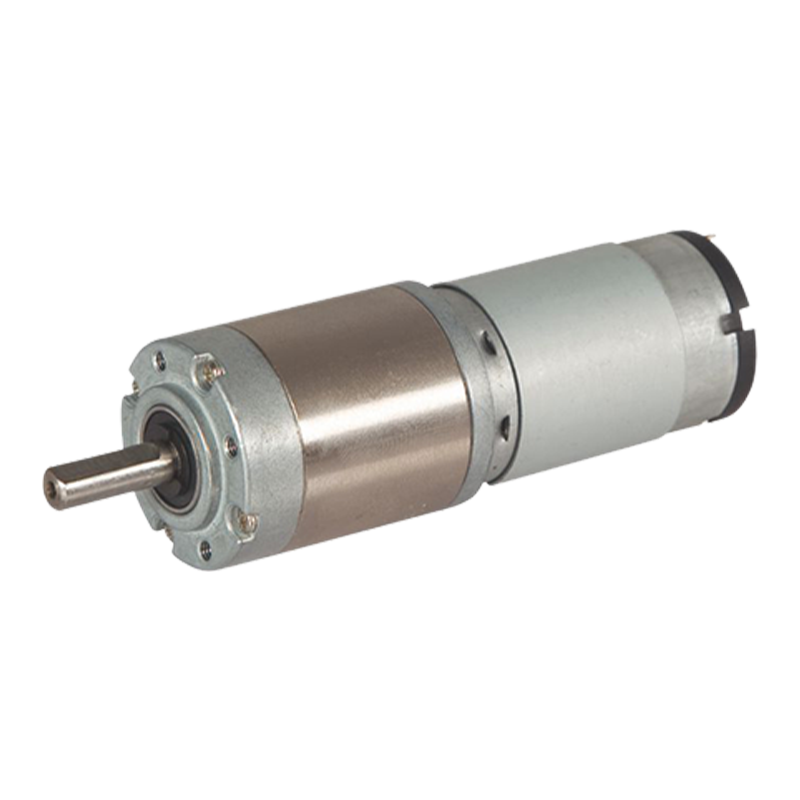

32JXE30K/28ZY47P 32mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

32JXE30K/28ZY47P 32mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

32JXE30K/28ZY47P(Permanent magnet DC planetary gear motor with a metal planetary gear structure with an outer diameter of 32 mm, both compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
With a suitable position sensor, high position control accuracy can be achieved. For example, in a 3D printer, the movement position of the print head can be precisely controlled to ensure print quality.
32JXE30K/28ZY47P compact and lightweight, the compact design of the planetary gear mechanism makes the brushed planetary gear motor smaller and lighter at the same power output. It is easy to install in equipment with limited space, such as drones, small medical devices, etc., which facilitates the miniaturization and lightweight design of the equipment.

  • 32JXE30K/28ZY47P 32mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：32JXE30K/28ZY47P 32mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：32JXE20K/28ZY47P 32mm 7300rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

32JXE30K/28ZY47P(1)

32mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

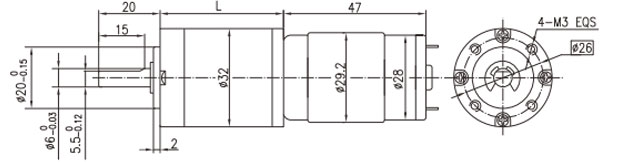

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY47P-1265

12

6500

150

5290

7.6

4.2

530

23

1.6

28ZY47P-2465

24

6500

85

5250

7.3

4

250

23

0.8

Gear Motor Technical Data

Configuration 28ZY47P-1265 DC Motor(28ZY47P-1265 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1756

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed r/min

1426

1021

378

278

196

151

104

75

53

38

28

21

15

11

8.9

Rated torque N.m

0.025

0.035

0.086

0.12

0.17

0.22

0.28

0.39

0.55

0.77

0.93

1.3

1.7

2.4

2.9

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
Configuration 28ZY47P-2465 DC Motor(28ZY47P-2465 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1752

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed r/min

1415

1014

375

276

194

150

103

74

53

38

28

21

15

11

8.8

Rated torque N.m

0.024

0.034

0.083

0.11

0.16

0.21

0.27

0.38

0.53

0.74

0.9

1.2

1.7

2.3

2.8

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

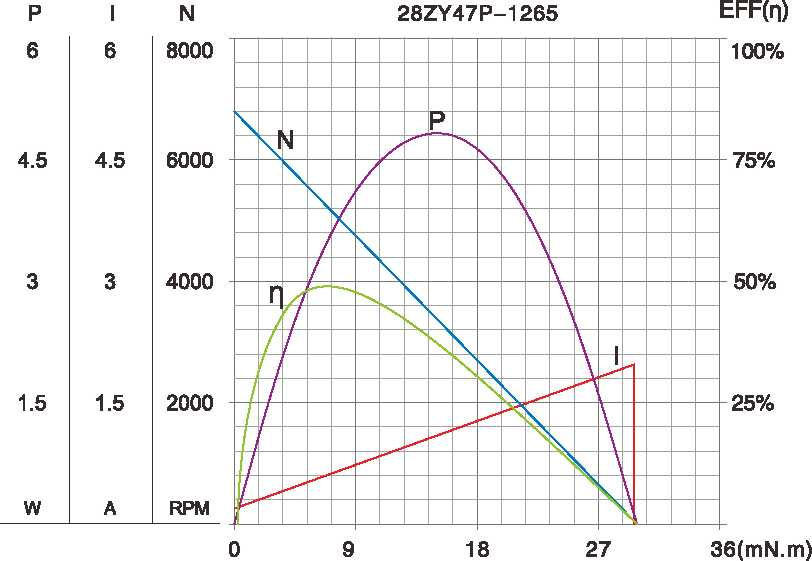

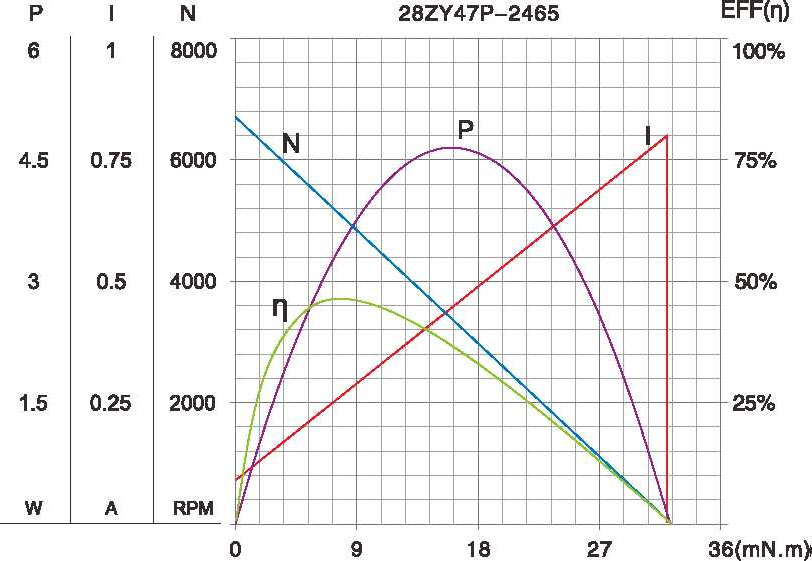

Motor Characteristic Figure

A-11

Technical parameters are subject to change without prior notice.*
