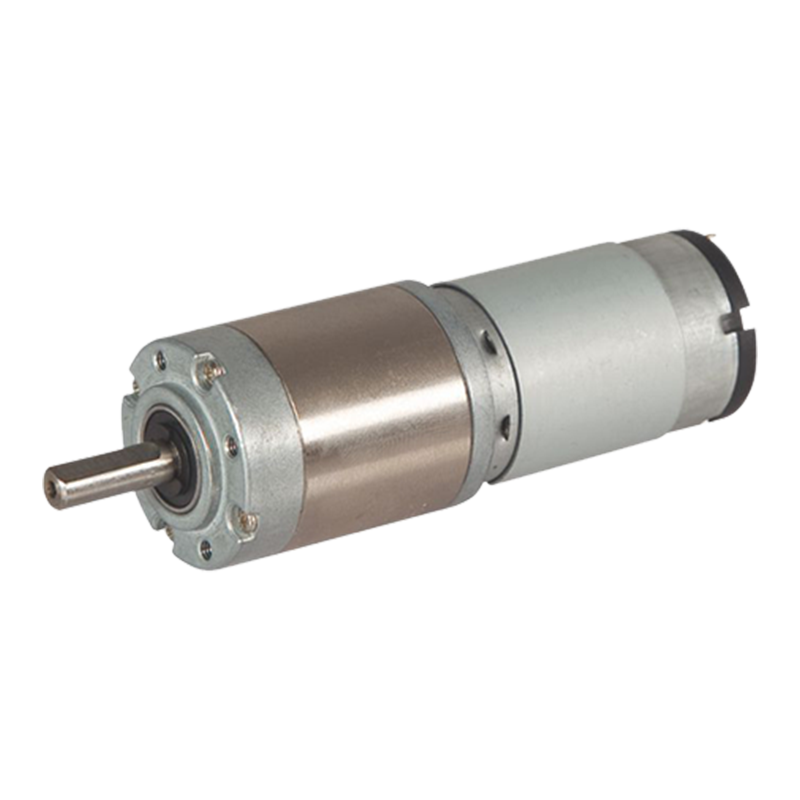

32JXE30K/28ZY47P 32mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

32JXE30K/28ZY47P 32mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

The 32JXE30K/28ZY47P permanent magnet DC planetary gear motor uses a metal planetary gear structure with an outer diameter of 32 mm, combining compact and high torque output. Allowable torque range: 0.3N.m~3.0N.m, support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The gear transmission structure of the product has a good torque transmission ability, which can effectively amplify the torque of the motor to meet the needs of high load work. For example, in some small robots or power tools that require a large torque to drive, a brushed planetary gear motor can provide enough power to drive the load.
Product speed adjustment range is wide, the brush motor itself can be more convenient by changing the voltage and other ways to adjust the speed, combined with the planetary gear reducer different transmission ratio combination, so that the brush planetary gear motor can achieve speed adjustment in a wide range to adapt to different working scenarios.

  • 32JXE30K/28ZY47P 32mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JX30K/36ZY85P 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：32JXE30K/28ZY47P 32mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

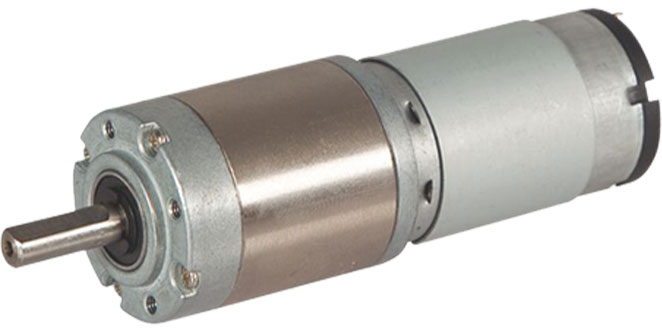

32JXE30K/28ZY47P(2)

32mm OD Planetary Gearbox,

Permissible Load Range:0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

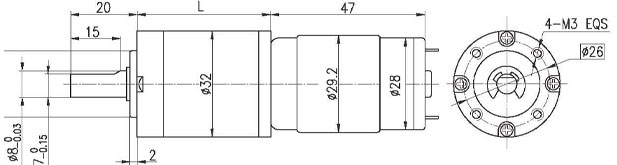

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

28ZY47P-1273

12

7300

150

5950

10.8

6.7

900

32

2.7

28ZY47P-2473

24

7300

85

6160

12.7

8.2

500

38

1.5

Gear Motor Technical Data

Configuration 28ZY47P-1273 DC Motor(28ZY47P-1273 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed r/min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated torque N.m

0.036

0.05

0.12

0.17

0.24

0.31

0.4

0.56

0.79

1.1

1.3

1.8

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
Configuration 28ZY47P-2473 DC Motor(28ZY47P-2473 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed r/min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated speed r/min

1660

1189

440

324

228

176

121

87

62

44

33

24

17

12

10

Rated torque N.m

0.042

0.059

0.14

0.2

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2.1

2.9

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

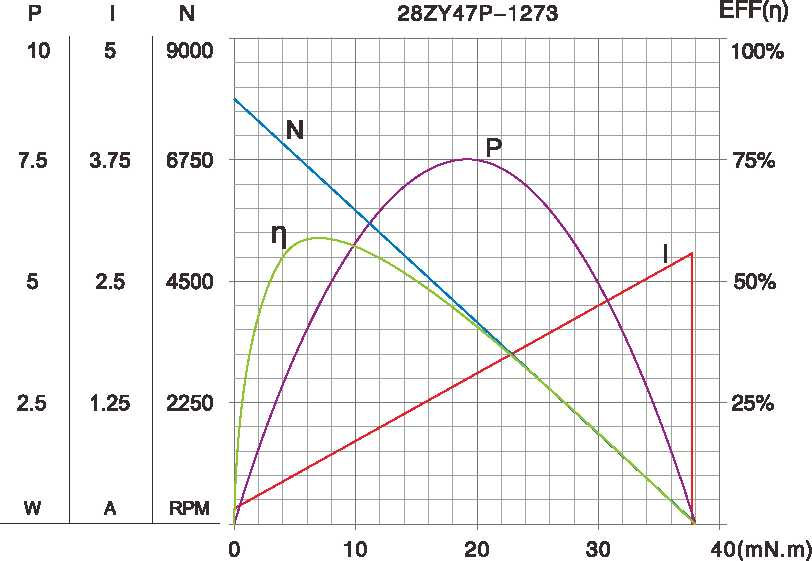

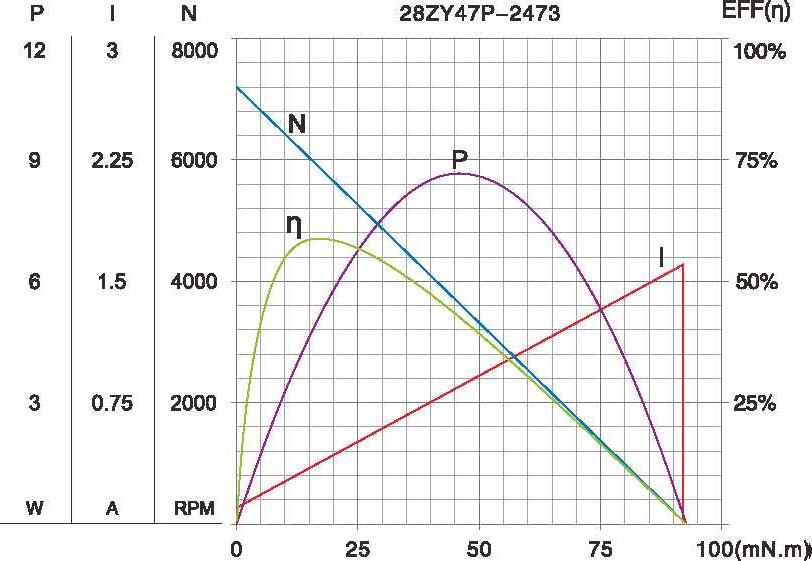

Motor Characteristic Figure

A-12

Technical parameters are subject to change without prior notice.*
