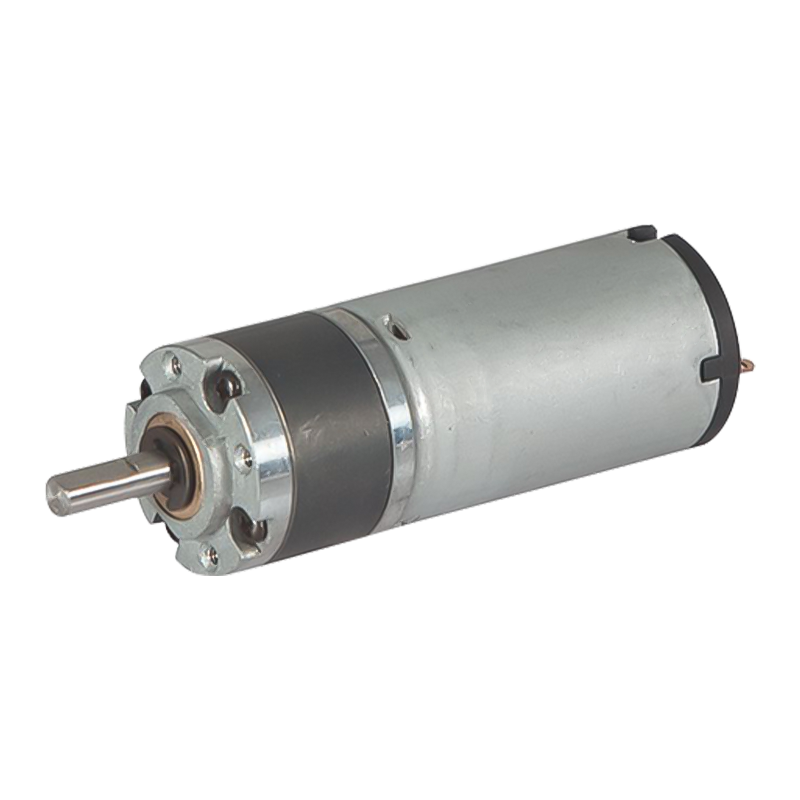

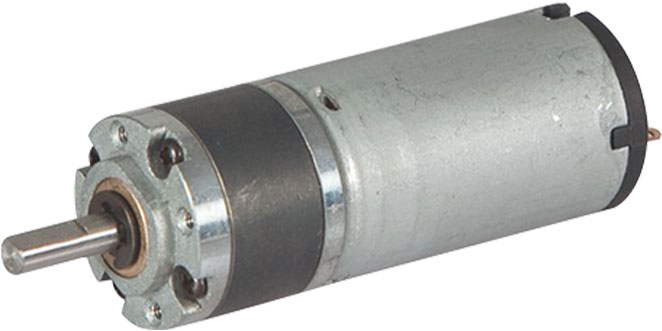

22JXF3K/22ZY38 22mm 0.03-0.3N.m Permanent Magnet DC Brushed Planetary Gear Motor

22JXF3K/22ZY38 22mm 0.03-0.3N.m Permanent Magnet DC Brushed Planetary Gear Motor

The inner gear ring of the 22JXF3K/22ZY38 permanent magnet DC planetary gear motor is made of metal, with an outer diameter of 22mm. It supports dual voltages of 12V and 24V, and has a no-load speed of 3000-6000 rpm, making it suitable for various applications. This product features high starting torque and instantaneous overload capacity. The brushes directly contact the commutator, providing 2-3 times the rated torque at startup, making it ideal for scenarios requiring frequent starts and stops or sudden load increases (such as power tools and roller shutter door drives). Additionally, the output torque is further amplified through the reduction ratio, meeting the demands of heavy loads (such as industrial valve control).

  • 22JXF3K/22ZY38 22mm 0.03-0.3N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：24JN10K/24ZY30 24mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：22JN10K/22ZY38 22mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

22JXF3K/22ZY38

22mm OD Planetary Gearbox,

Permissible Load Range: 0.03N.m~0.3N.m

PM DC Planetary Gear Motor (Ring Gear Material: Powder Metal)

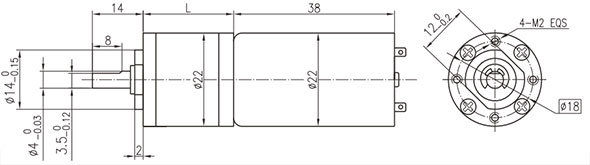

Dimensions

Motor Technical Data

Type

Rated

Voltage

VDC

No-load

Speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

torquem

N.m

Output

Power

W

Rated

current

mA

Stall

torque

mN.m

Stall

Current

A

22ZY38B-1230

12

3000

70

2200

3

0.7

135

9.3

0.26

22ZY38B-1260

12

6000

100

5000

3

1.56

250

17

0.87



Gear Motor Technical Data

Configuration 22ZY38B-1230 DC Motor(22ZY38B-1230 DC Motor)

Reduction ratio

4

4.75

16

19

22

64

76

90

107

256

304

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

13

13

16.7

16.7

16.7

20.4

20.4

20.4

20.4

24.1

24.1

No-load speed r/min

750

632

188

158

136

47

39

33

28

12

10

Rated speed r/min

550

463

138

116

100

34

29

24

21

8.6

7.2

Rated torque N.m

0.011

0.013

0.039

0.046

0.053

0.14

0.17

0.2

0.23

0.3

0.3

Max. permissible load in a short time, N.m

0.09

0.09

0.45

0.45

0.45

0.75

0.75

0.75

0.75

0.9

0.9
Configuration 22ZY38B-1260 DC Motor(22ZY38B-1260 DC Motor)

Reduction ratio

4

4.75

16

19

22

64

76

90

107

256

304

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

13

13

16.7

16.7

16.7

20.4

20.4

20.4

20.4

24.1

24.1

No-load speed r/min

1500

1263

375

316

273

94

79

67

56

23

20

Rated speed r/min

1250

1035

313

263

227

78

66

56

47

20

16

Rated torque N.m

0.011

0.013

0.039

0.046

0.053

0.14

0.17

0.2

0.23

0.3

0.3

Max. permissible load in a short time N.m

0.09

0.09

0.45

0.45

0.45

0.75

0.75

0.75

0.75

0.9

0.9

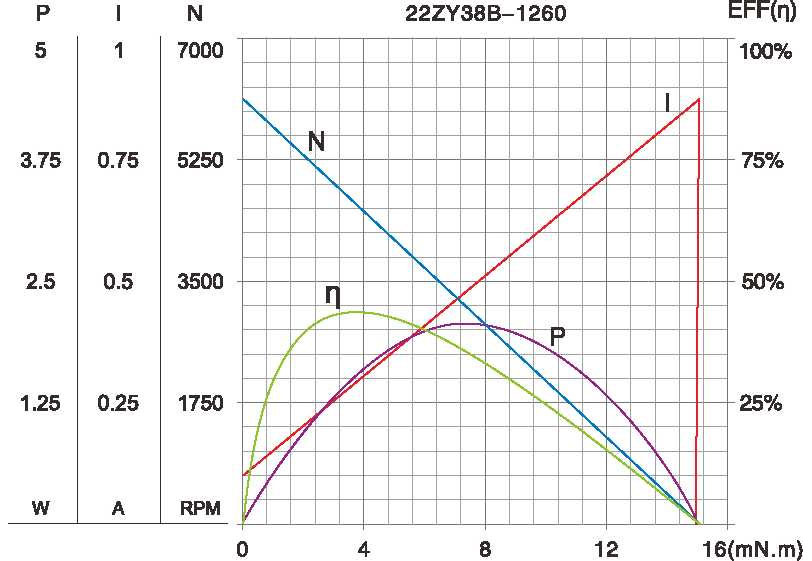

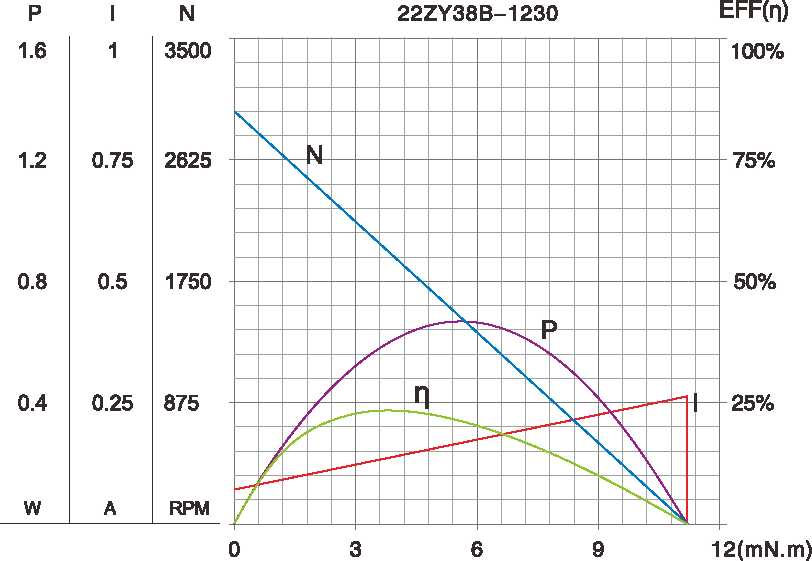

Motor Characteristic Figure

A-2

Technical parameters are subject to change without prior notice.*
