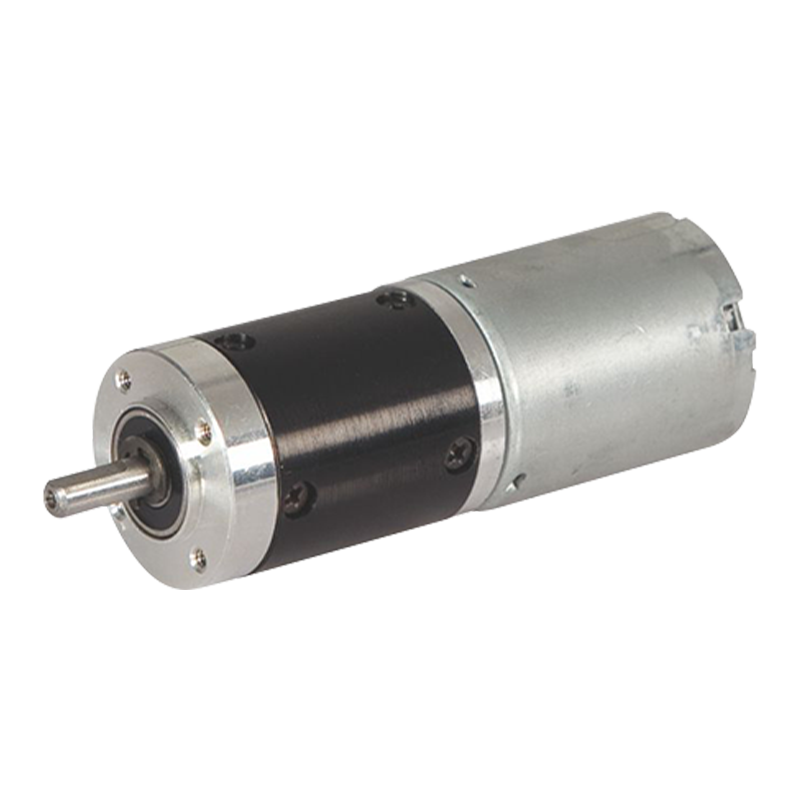

24JN10K/24ZY30 24mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

24JN10K/24ZY30 24mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 24JN10K/24ZY30 permanent magnet DC planetary gear motor uses a metal material inner gear ring with an outer diameter of 24mm. It supports dual voltages of 12V and 24V, and has a no-load speed of 3000-6000 rpm. This product features low cost and high-performance. The structure is simplified without the need for an electronic commutator (such as Hall sensors), and the circuit design is simple. The overall cost is 30% - 50% lower than that of a brushless solution. It is typically applied in household appliances (blenders, vacuum cleaners) and low-cost automation equipment. It is easier to maintain with controllable costs. The brushes can be replaced after wear, avoiding the scrapping of the entire machine.

  • 24JN10K/24ZY30 24mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：24JN10K/24ZY30 24mm 8000-12000rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：22JXF3K/22ZY38 22mm 0.03-0.3N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

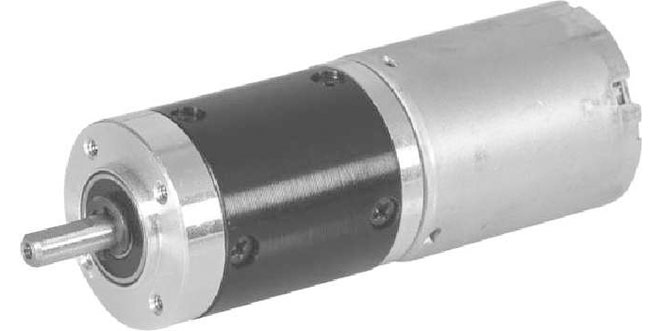

24JN10K/24ZY30(1)

24mm OD Planetary Gearbox,

Permissible Load Range: 0.1N.m~1.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

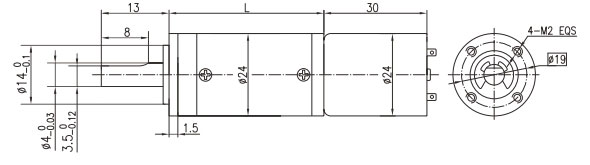

Dimensions

The diameter of the gearbox output shaft can be madeΦ6, the shaft length can be made 20

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

Speed

r/min

Rated

Torque

mN.m

Output

Power

W

Rated

current

mA

Stall

Torque

mN.m

Stall

Current

A

24ZY30-1230

12

3000

40

2400

2

0.5

90

10

0.3

24ZY30-1245

12

4500

60

3600

2.5

0.9

170

12.5

0.5

24ZY30-1260

12

6000

70

4800

3

1.5

240

15

1

Gear Motor Technical Data

Configuration 24ZY30-1230 DC Motor(24ZY30-1230 DC Motor)

Reduction ratio

14

19

27

51

71

100

139

189

264

369

516

720

981

1370

Number of gear trains

2

2

2

3

3

3

3

4

4

4

4

4

5

5

Length(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

44.4

44.4

50.8

50.8

No-load speed r/min

214

158

111

59

42

30

22

16

11

8.1

5.8

4.2

3.1

2.2

Rated speed r/min

171

126

89

47

34

24

17

13

9.1

6.5

4.7

3.3

2.4

1.8

Rated torque N.m

0.023

0.031

0.044

0.074

0.1

0.15

0.2

0.25

0.34

0.48

0.67

0.94

1

1

Max. permissible load in a short time N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3

3

3
Configuration 24ZY30-1245 DC Motor(24ZY30-1245 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25

25

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

44.4

44.4

No-load speed r/min

1213

869

321

237

167

88

63

45

32

24

17

12

8.7

6.3

Rated speed r/min

970

695

257

189

133

71

51

36

26

19

14

9.8

7

5

Rated torque N.m

0.008

0.012

0.028

0.038

0.055

0.093

0.13

0.18

0.25

0.31

0.43

0.6

0.84

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3
Configuration 24ZY30-1260 DC Motor(24ZY30-1260 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

25

25

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

44.4

44.4

No-load speed r/min

1617

1158

429

316

222

118

85

60

43

32

23

16

12

8.3

Rated speed r/min

1294

927

343

253

178

94

68

48

35

25

18

13

9.3

6.7

Rated torque N.m

0.01

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.3

0.37

0.51

0.72

1

1

Max. permissible load in a short time N.m

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3
