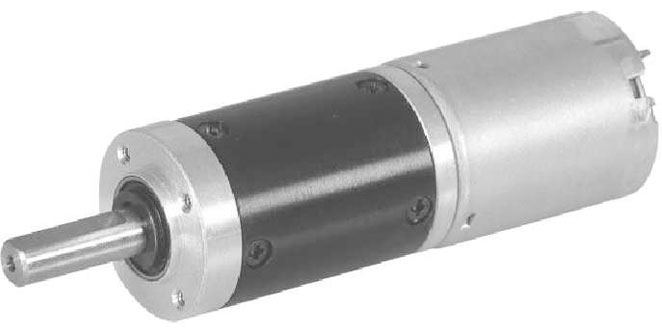

24JN10K/24ZY30 24mm 8000-12000rpm Permanent Magnet DC Brushed Planetary Gear Motor

24JN10K/24ZY30 24mm 8000-12000rpm Permanent Magnet DC Brushed Planetary Gear Motor

The 24JN10K/24ZY30 permanent magnet DC planetary gear motor uses a metal planetary gear structure with an outer diameter of 24 mm and allows a torque range of 0.1N.m to 1.0N.m. Support 12V/24V dual voltage, no-load speed is up to 8000- 12000 rpm.

  • 24JN10K/24ZY30 24mm 8000-12000rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：28JN30K/28ZY38 28mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：24JN10K/24ZY30 24mm 0.1-1N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

24JN10K/24ZY30(2)

24mm OD Planetary Gearbox,

Permissible Load Range: 0.1N.m~1.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

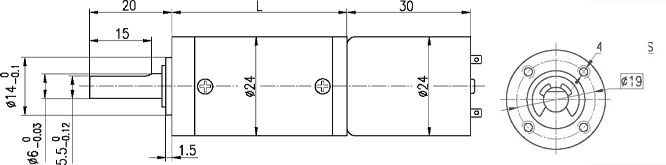

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquem N.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

24ZY30-1280

12

8000

80

6500

3

2

300

16

1.2

24ZY30-12100

12

10000

100

7700

4

3.1

420

16

1.6

24ZY30-24120

24

12000

140

9000

3.5

3.2

300

19

1.2

Gear Motor Technical Data

Configuration 24ZY30-1280 DC Motor(24ZY30-1280 DC Motor)

Reduction ratio

14

19

27

51

71

100

139

189

264

369

516

Number of gear trains

2

2

2

3

3

3

3

4

4

4

4

Length(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

44.4

No-load speed r/min

571

421

296

157

113

80

58

42

30

22

16

Rated speed r/min

464

342

241

127

92

65

47

34

25

18

13

Rated torque N.m

0.034

0.046

0.066

0.11

0.16

0.22

0.3

0.37

0.51

0.72

1

Max. permissible load in a short time N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3
Configuration 24ZY30-12100 DC Motor(24ZY30-12100 DC Motor)

Reduction ratio

14

19

27

51

71

100

139

189

264

369

Number of gear trains

2

2

2

3

3

3

3

4

4

4

Length(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

No-load speed r/min

714

526

370

196

141

100

72

53

38

27

Rated speed r/min

550

405

285

151

108

77

55

41

29

21

Rated torque N.m

0.045

0.062

0.087

0.15

0.21

0.29

0.41

0.49

0.69

0.96

Max. permissible load in a short time N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3
Configuration 24ZY30-24120 DC Motor (24ZY30-24120 DC Motor)

Reduction ratio

14

19

27

51

71

100

139

189

264

369

Number of gear trains

2

2

2

3

3

3

3

4

4

4

Length(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

No-load speed r/min

857

632

444

235

169

120

86

63

45

33

Rated speed r/min

643

474

333

176

127

90

65

48

34

24

Rated torque N.m

0.04

0.054

0.077

0.13

0.18

0.26

0.36

0.43

0.6

0.84

Max. permissible load in a short time N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3
