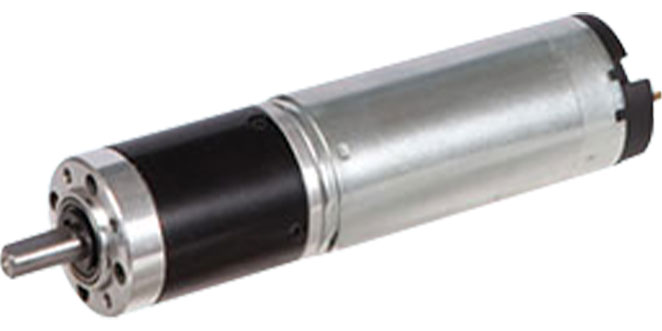

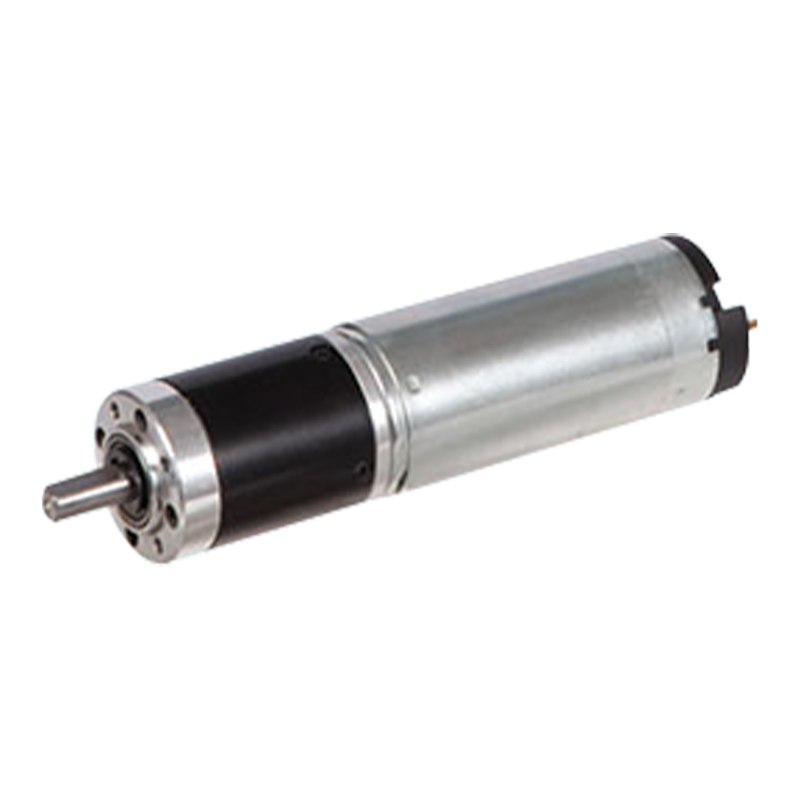

36JX30K/36ZY85P 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

36JX30K/36ZY85P 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 36JX30K/36ZY85P permanent magnet DC planetary gear motor uses a metal planetary gear structure with an outer diameter of 36 mm, combining compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The product has high transmission accuracy, the gear meshing clearance of the planetary gear system is small, and the structure is compact, which can ensure the more accurate transmission ratio. In some equipment with higher position accuracy and motion accuracy requirements, such as the positioning mechanism of the automatic production line, the transmission device of the precision instrument, etc., the brushed planetary gear motor can achieve more accurate motion control.
The 36JX30K/36ZY85P repeatable positioning accuracy is good, due to its high transmission stability and accuracy, in the course of multiple runs, can maintain a good repeatable positioning accuracy, for the need for frequent accurate position adjustment equipment is very important.

  • 36JX30K/36ZY85P 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JX30K/38ZY63 36mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：32JXE30K/28ZY47P 32mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JX30K/36ZY85P

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

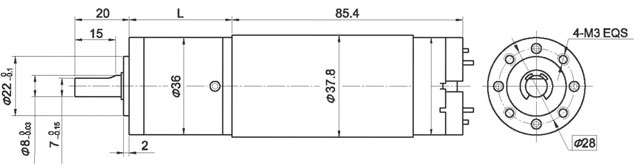

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

36ZY85P-1230

12

3000

250

2400

40

10

1.6

188

6.7

36ZY85P-2430

24

3000

150

2500

40

10

0.85

285

4.2

Gear Motor Technical Data

Configuration 36ZY85P-1230 DC Motor (36ZY85P-1230 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

Number of gear trains

1

1

2

2

2

3

3

3

3

Length(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

No-load speed r/min

809

579

214

157

111

59

42

30

21

Rated speed r/min

649

462

171

126

89

47

34

24

18

Rated torque N.m

0.13

0.19

0.45

0.62

0.87

1.5

2.1

2.9

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

9

9

9
Configuration 36ZY85P-2430 DC Motor (36ZY85P-2430 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

Number of gear trains

1

1

2

2

2

3

3

3

3

Length(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

No-load speed r/min

809

579

214

157

111

59

42

30

21

Rated speed r/min

674

483

179

132

93

49

35

25

19

Rated torque N.m

0.13

0.19

0.45

0.62

0.87

1.5

2.1

2.9

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

9

9

9

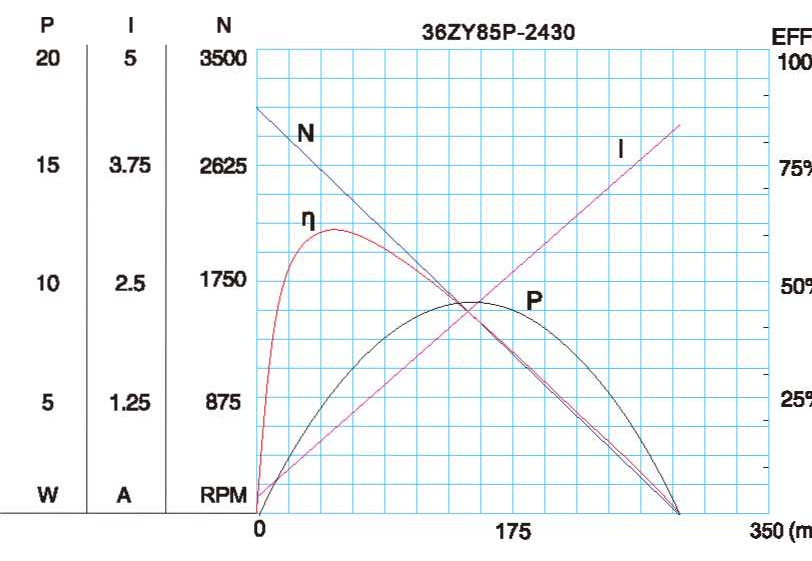

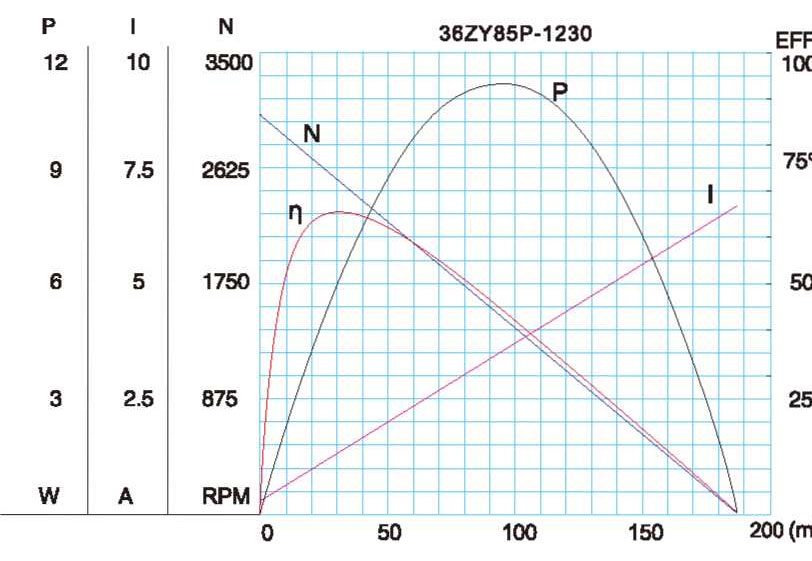

Motor Characteristic Figure

A-13

Technical parameters are subject to change without prior notice.*
