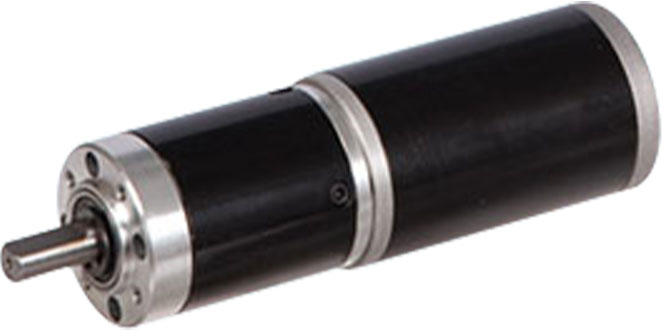

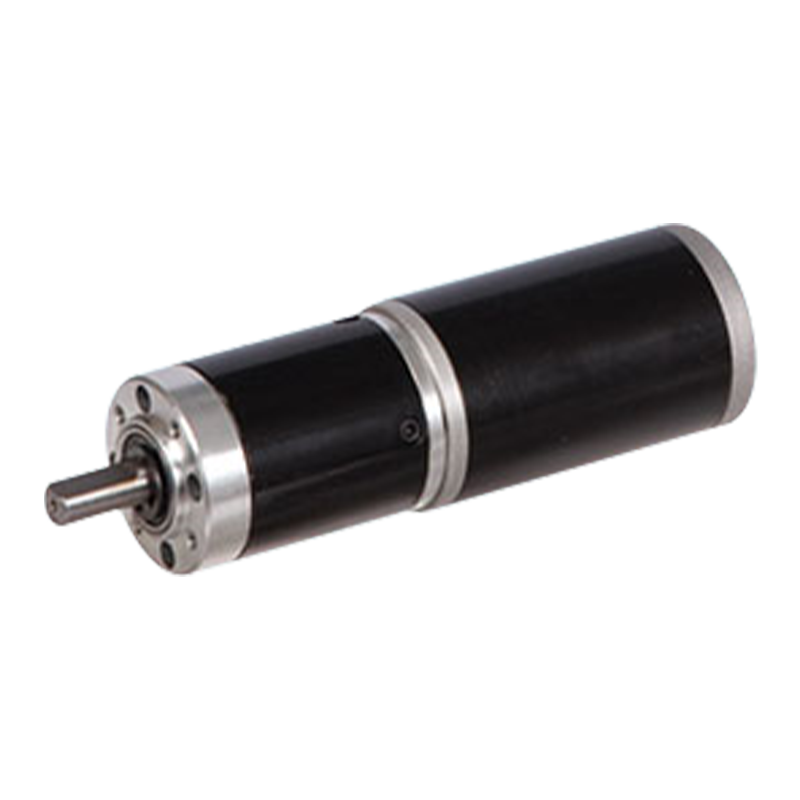

36JX30K/38ZY63 36mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

36JX30K/38ZY63 36mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

36JX30K/38ZY63 permanent magnet DC planetary gear motor inner ring made of metal material, outer diameter 36 mm. Support 12v/24v dual voltage, no-load speed 3000- 4000 rpm.
With high transmission efficiency, planetary gear transmission in the transmission of power, multiple gears mesh at the same time, uniform load distribution, transmission efficiency is relatively high. Under normal circumstances, the brushed planetary gear motor can maintain a high efficiency within the rated load range and reduce energy loss.
The energy conversion efficiency of the product is better, although there is friction loss between the brush and the commutator, the overall energy conversion efficiency can meet the requirements of application scenarios after reasonable matching with the planetary gear reducer, especially in the working conditions of medium and low speed and high torque, the efficiency advantage is more obvious.

  • 36JX30K/38ZY63 36mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/35ZY30 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JX30K/36ZY85P 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JX30K/38ZY63

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

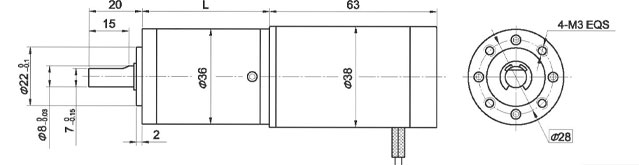

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

38ZY63-2430

24

3000

160

2500

15

3.8

0.35

65

1

38ZY63-2440

24

4000

220

3200

20

6.5

0.6

90

2

Gear Motor Technical Data

Configuration 36ZY85P-1230 DC Motor (36ZY85P-1230 DC Motor)

Reduction ratio

3.7

5.1

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

55.8

55.8

55.8

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

8

Rated speed r/min

670

480

175

130

92

49

35

25

18

13

9.5

7

Rated torque N.m

0.05

0.07

0.17

0.23

0.33

0.56

0.78

1.1

1.5

1.8

2.6

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9
Configuration 36ZY85P-2430 DC Motor (36ZY85P-2430 DC Motor)

Reduction ratio

3.7

5.1

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

55.8

55.8

55.8

No-load speed r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated speed r/min

860

617

228

168

118

62

45

32

23

17

13

10

Rated torque N.m

0.067

0.093

0.23

0.31

0.44

0.74

1

1.5

2

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

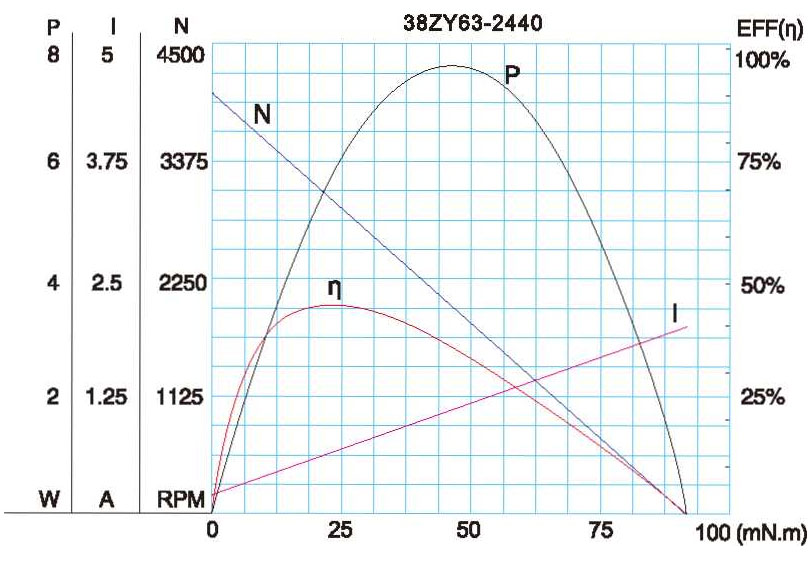

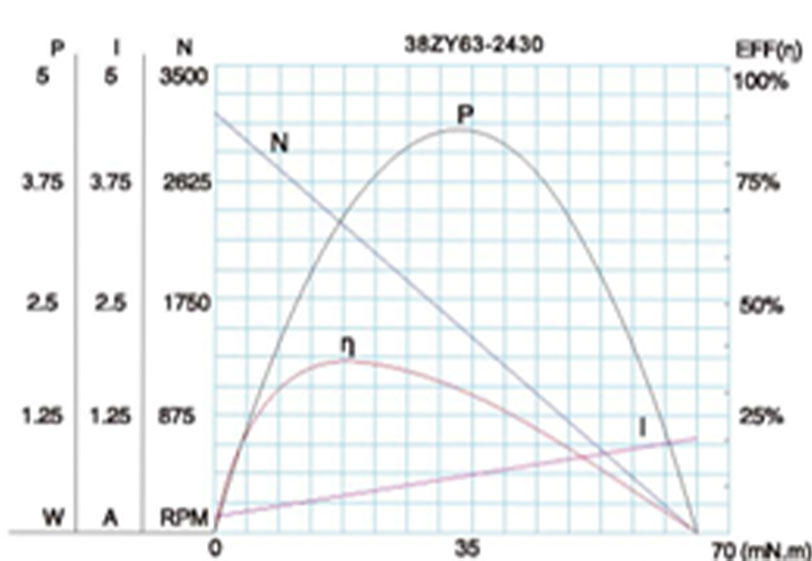

Motor Characteristic Figure

A-14

Technical parameters are subject to change without prior notice.*
