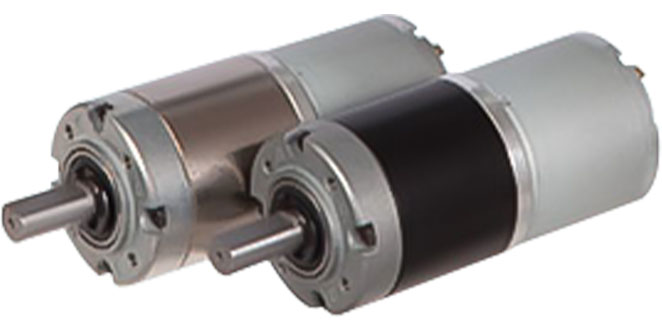

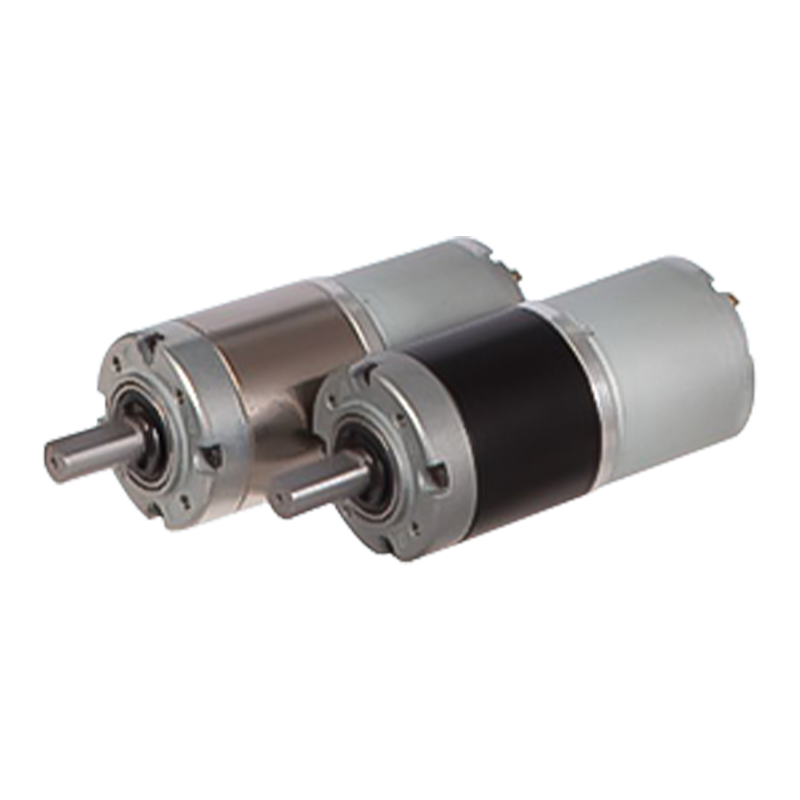

36JXE30K/35ZY30 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

36JXE30K/35ZY30 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

The inner ring of the 36JXE30K/35ZY30 permanent magnet DC planetary gear motor is made of metal material with an outer diameter of 36 mm. Support 12V/24V dual voltage, no-load speed 3000-5000rpm.
Compact and durable product structure, planetary gear reducer compact structure, small size, light weight, can withstand large load and impact. At the same time, brush motor after long-term development and improvement, mature technology, high reliability. After the combination of the two, it can run stably for a long time under normal use and maintenance conditions.
36JXE30K/35ZY30 overload capacity is strong, the planetary gear system can withstand a certain degree of overload, when the load suddenly increases, the planetary gear motor can bear a large load in a short time through its own structural characteristics and the overload capacity of the motor, without immediate failure.

  • 36JXE30K/35ZY30 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/35ZY40 36mm 3000-5000rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JX30K/38ZY63 36mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/35ZY30

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

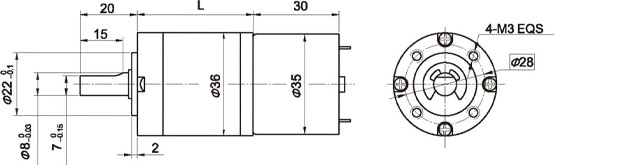

Dimensions

Ring gear can be selected within the two materials: Powder metal (Type:36JXF30K), Metal (Type:36JXE30K)

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

35ZY30-1230

12

3000

50

2400

5

1.2

280

12.2

0.62

35ZY30-1250

12

5000

100

4300

4

1.8

330

24

1.5

Gear Motor Technical Data

Configuration 35ZY30-1230 DC Motor(35ZY30-1230 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

8.1

5.8

4.2

Rated speed r/min

647

463

171

126

89

47

34

24

17

13

8.1

6.5

4.7

3.3

Rated torque N.m

0.017

0.023

0.057

0.077

0.11

0.19

0.26

0.37

0.51

0.61

0.86

1.2

1.7

2.3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
Configure 35ZY30-1250 DC Motor(35ZY30-1250 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed r/min

1348

965

357

263

185

98

70

50

36

26

19

14

10

6.9

Rated speed r/min

1159

830

307

226

159

84

61

43

31

23

16

12

8.3

6

Rated torque N.m

0.013

0.019

0.045

0.062

0.087

0.15

0.21

0.29

0.41

0.049

0.69

1

1.3

1.9

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

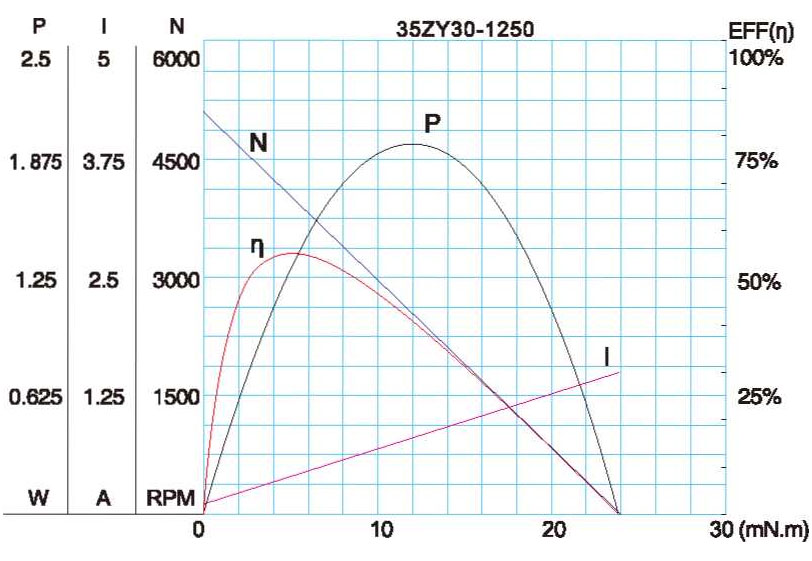

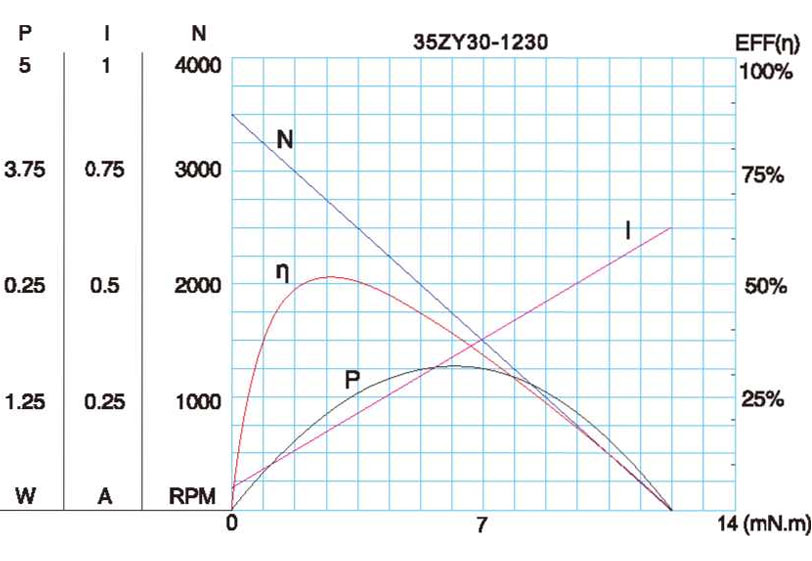

Motor Characteristic Figure

A-15

Technical parameters are subject to change without prior notice.*
