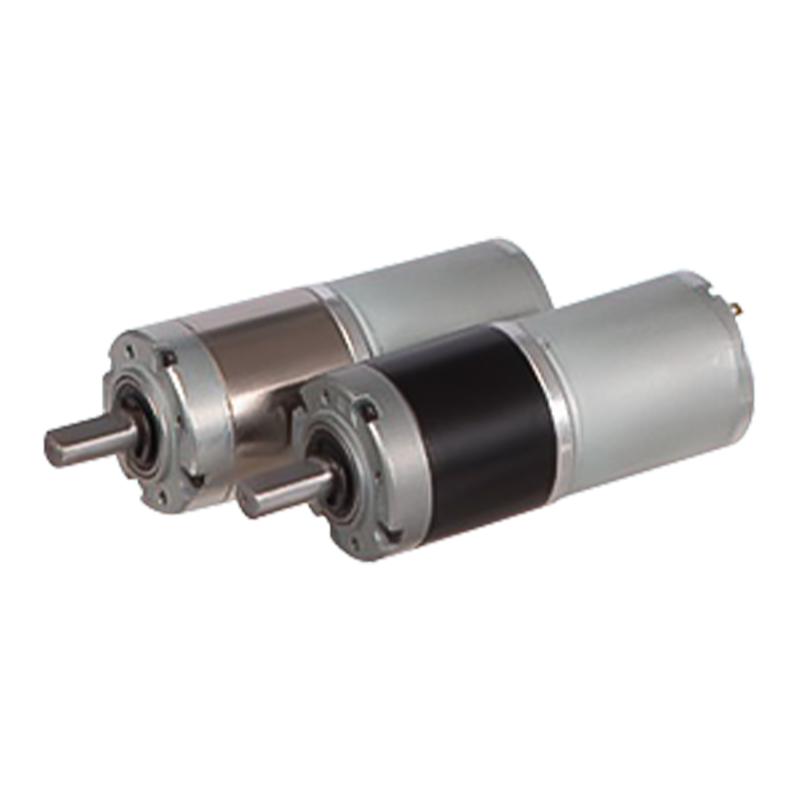

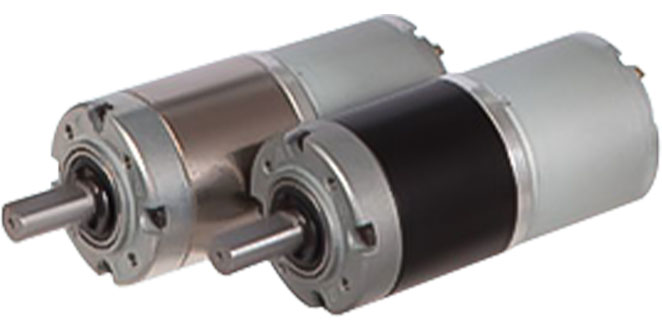

36JXE30K/35ZY40 36mm 3000-5000rpm Permanent Magnet DC Brushed Planetary Gear Motor

36JXE30K/35ZY40 36mm 3000-5000rpm Permanent Magnet DC Brushed Planetary Gear Motor

The inner ring of the 36JXE30K/35ZY40 permanent magnet DC planetary gear motor is made of metal material with an outer diameter of 36 mm. Support 12v/24v dual voltage, no-load speed 3000- 5000 rpm.
Compared with some high-performance brushless motors and their supporting complex control systems, the cost of brushless planetary gear motors is relatively low. Its simple structure, mature manufacturing process, in some cost sensitivity but requires a certain performance of the application field, such as toys, small appliances, etc., has a high cost performance.

  • 36JXE30K/35ZY40 36mm 3000-5000rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZY50 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JXE30K/35ZY30 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/35ZY40

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

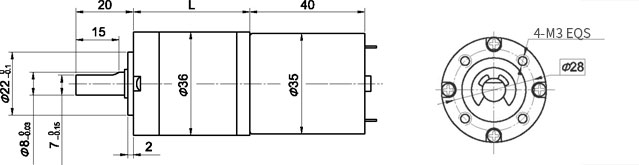

Dimensions

Ring gear can be selected within the two materials: Powder metal (Type:36JXF30K), Metal (Type:36JXE30K)

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

35ZY40-1230

12

3000

90

2300

9

2.1

400

22

0.8

35ZY40-1250

12

5000

110

4300

8

3.5

600

34

2.2

Gear Motor Technical Data

Configure 35ZY40-1230 DC Motor (35ZY30-1230 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

8.1

5.8

4.2

Rated speed r/min

620

444

164

121

85

45

32

23

17

12

8.7

6.2

4.5

3.2

Rated torque N.m

0.03

0.042

0.1

0.14

0.2

0.34

0.47

0.66

0.91

1.1

1.5

2.2

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
Configure 35ZY40-1250 DC Motor (35ZY40-1250 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed r/min

1348

965

357

263

185

98

70

50

36

26

19

14

10

6.9

Rated speed r/min

1159

830

307

226

159

84

61

43

31

23

16

12

8.3

6

Rated torque N.m

0.027

0.037

0.09

0.12

0.17

0.3

0.41

0.58

0.81

0.98

1.4

1.9

2.7

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

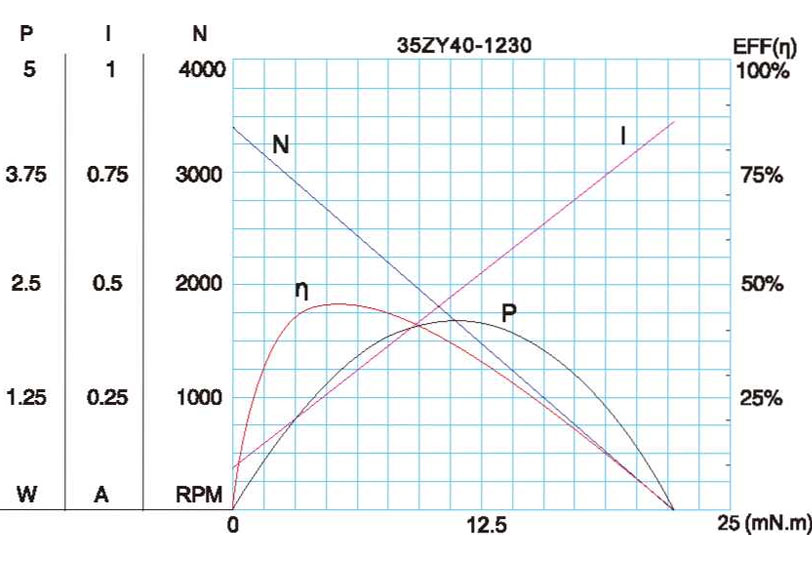

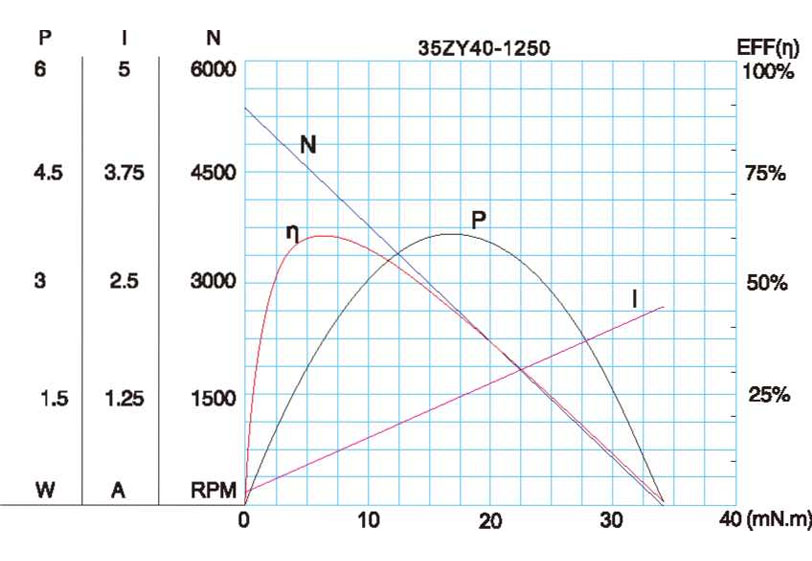

Motor Characteristic Figure

A-16

Technical parameters are subject to change without prior notice.*
