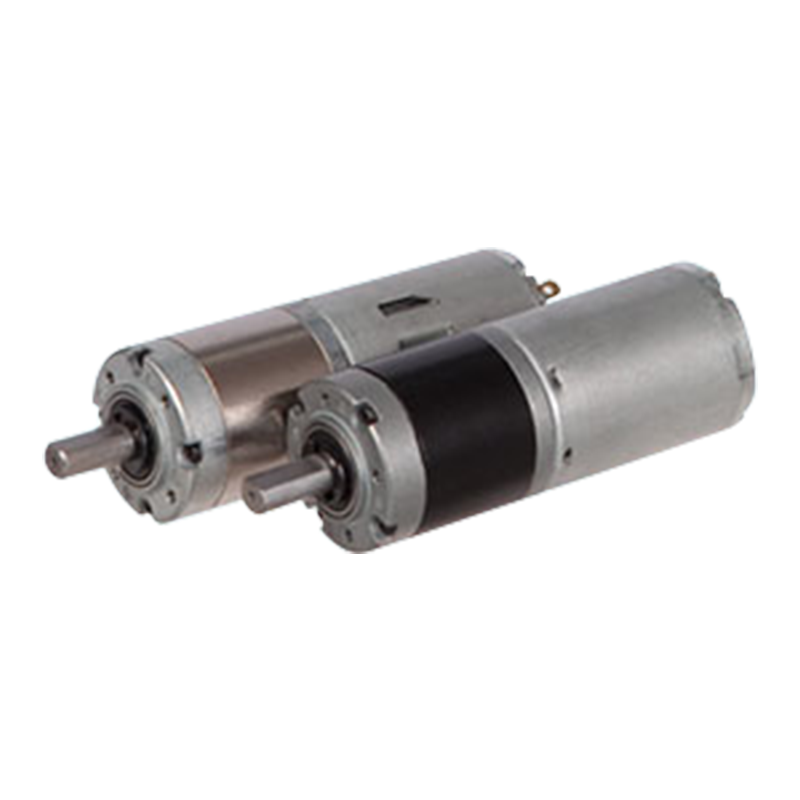

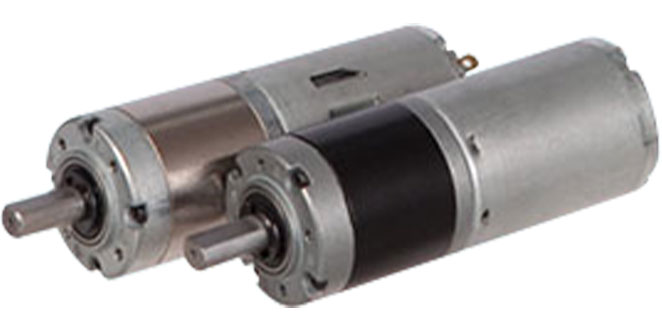

36JXE30K/36ZY50 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

36JXE30K/36ZY50 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

The inner ring material of the 36JXE30K/36ZY50 is made of metal and powder metal, and you can choose between the inner ring of two materials: powder metal (model 36JXF30K) and metal (model 36JXE30K). The outer diameter is 36 mm, its allowable torque range: 0.3N.m~3.0N.m, no-load speed is 3600-4200rpm.
With multiple planetary wheels, the impact force can be distributed and the load capacity increased, combined with the brush motor's high torque output, to cope with heavy load conditions (such as automated production line drive systems). Smooth speed regulation can be achieved by adjusting the voltage, and multi-stage transmission ratio selection of superimposed planetary gears can accurately control the speed and torque in a large range, suitable for scenarios requiring fine adjustment (such as medical equipment, small robots).

  • 36JXE30K/36ZY50 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZY57 36mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JXE30K/35ZY40 36mm 3000-5000rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZY50

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

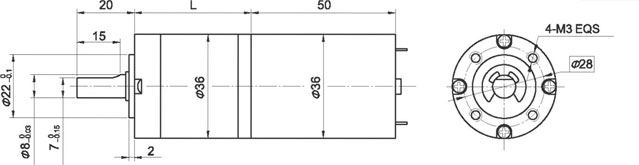

Dimensions

Ring gear can be selected within the two materials: Powder metal (Type:36JXF30K), Metal (Type:36JXE30K)

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

36ZY50-2436

24

3600

100

3000

11

3.4

0.4

58

1.7

36ZY50-2442

24

4200

120

3450

12

4.2

0.43

56

1.6

Gear Motor Technical Data

Configuration 36ZY50-2436 DC Motor (36ZY50-2436 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

No-load speed r/min

970

695

257

189

133

71

51

36

26

19

14

9.8

7

Rated speed r/min

809

579

214

158

111

59

42

30

22

16

11

8.1

5.8

Rated torque N.m

0.037

0.051

0.12

0.17

0.24

0.41

0.57

0.8

1.1

1.4

1.9

2.6

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9
Configuration 36ZY50-2442 DC Motor(36ZY50-2442 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

No-load speed r/min

1132

811

300

221

156

82

59

42

30

22

16

11

8.1

Rated speed r/min

930

666

246

182

128

68

49

35

25

18

13

9.3

6.7

Rated torque N.m

0.04

0.056

0.14

0.18

0.26

0.45

0.62

0.88

1.2

1.5

2.1

2.9

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

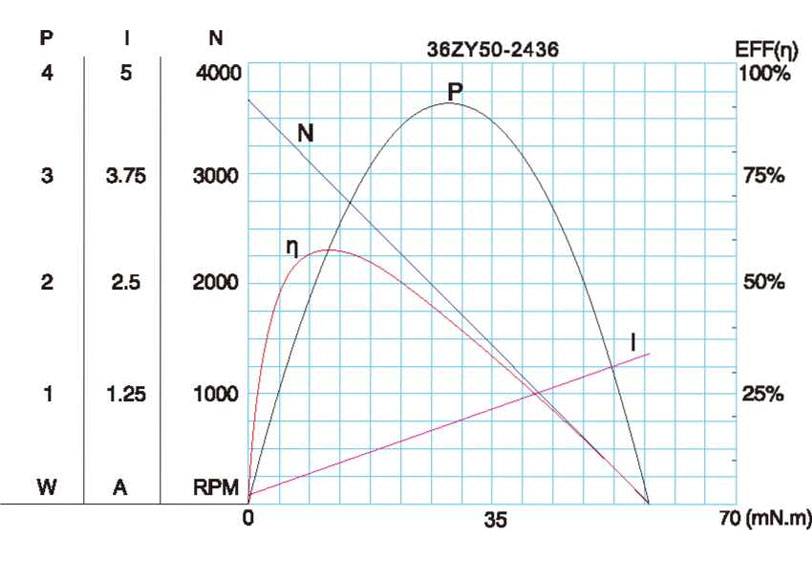

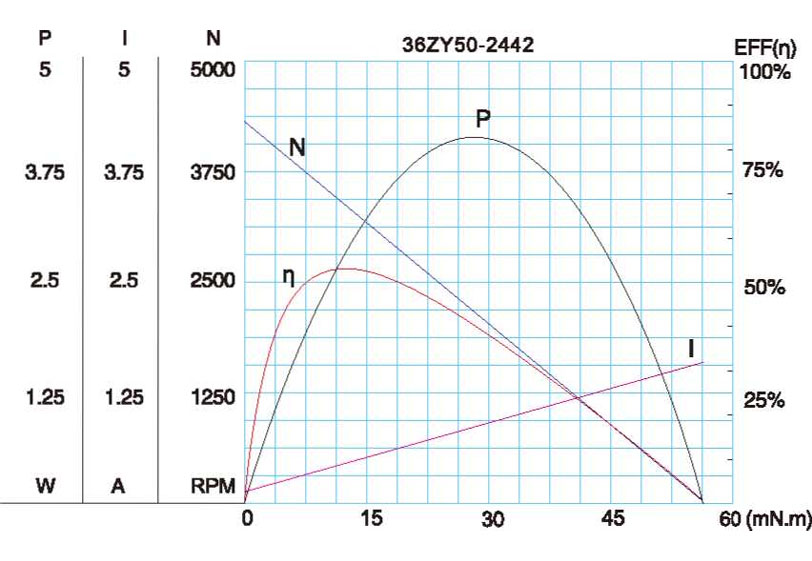

Motor Characteristic Figure

A-17

Technical parameters are subject to change without prior notice.*
