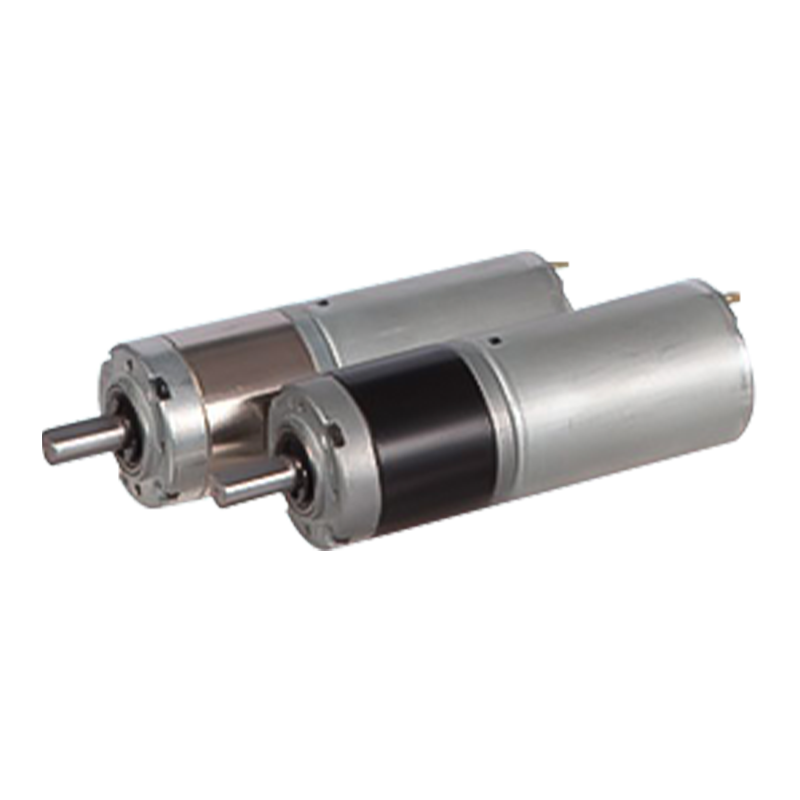

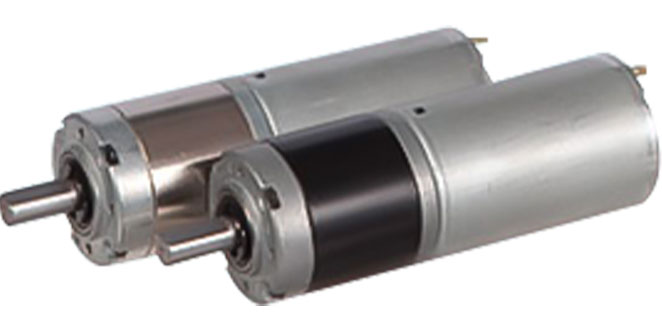

36JXE30K/36ZY57 36mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor

36JXE30K/36ZY57 36mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor

The 36JXE30K/36ZY57 uses a metal and powder metal inner ring. Outer diameter 36 mm, allowable torque range: 0.3N.m~3.0N.m, support 12v/24v dual voltage environment.
The structure of the motor is more intuitive, and for some common faults, such as brush wear, gear damage, etc., maintenance personnel can detect, repair and replace parts relatively easily. In the maintenance of some small equipment, professional tools and complex technologies are not required, reducing the difficulty and cost of maintenance.

  • 36JXE30K/36ZY57 36mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZY66 42mm 2-15N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JXE30K/36ZY50 36mm 0.3-3N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZY57

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

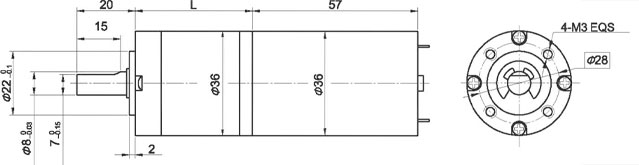

Dimensions

Ring gear can be selected within the two materials: Powder metal (Type:36JXF30K), Metal (Type:36JXE30K)

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

36ZY57-2433

24

3300

90

2700

24.5

6

0.5

130

1.9

36ZY57-2442

24

4200

120

3600

19

7

0.52

125

2.8

Gear Motor Technical Data

Configuration 36ZY57-2433 DC Motor (36ZY57-2433 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

No-load speed r/min

892

635

236

174

122

65

46

33

24

18

15

Rated speed r/min

730

519

193

142

100

53

38

27

19

15

12

Rated torque N.m

0.081

0.11

0.28

0.38

0.54

0.91

1.2

1.8

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9
Configuration 36ZY57-2442 DC Motor (36ZY57-2442 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed r/min

1132

811

300

221

156

82

59

42

30

22

19

17

14

12

Rated speed r/min

970

695

257

189

133

71

51

36

26

19

16

14

12

10

Rated torque N.m

0.063

0.089

0.22

0.29

0.42

0.71

0.98

1.4

1.9

2.3

2.7

3

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

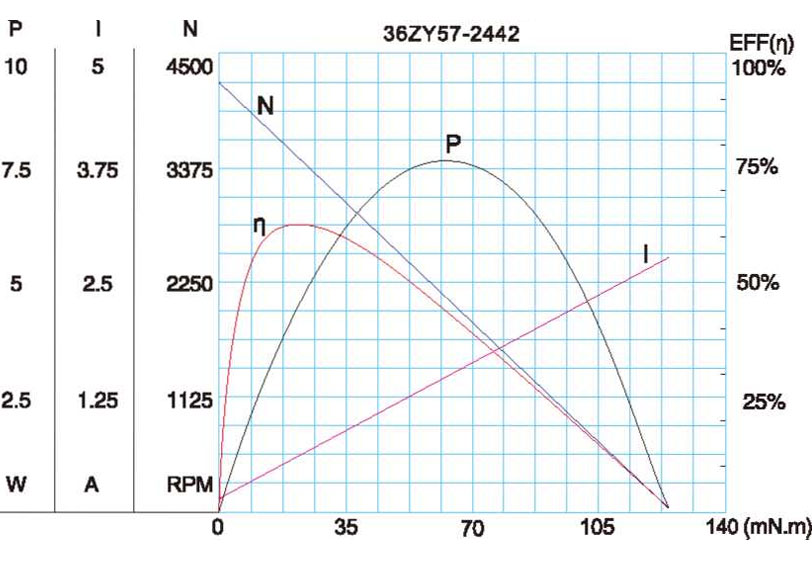

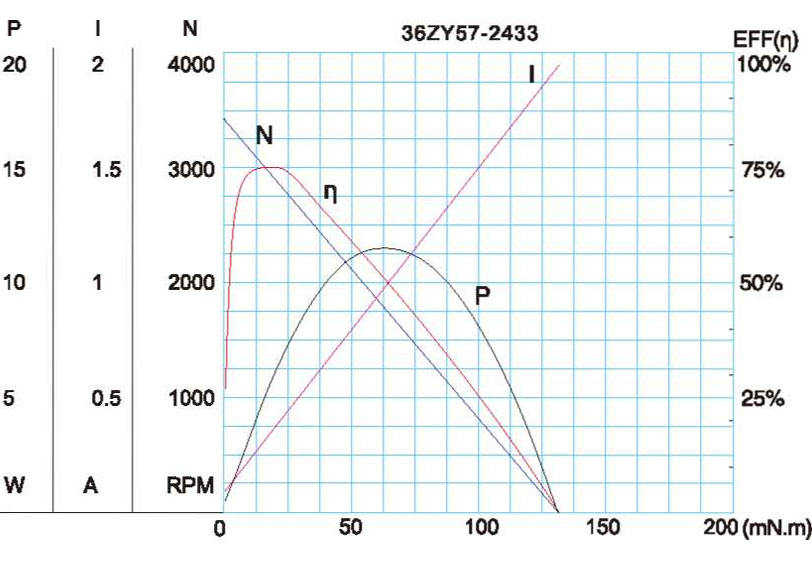

Motor Characteristic Figure

A-18

Technical parameters are subject to change without prior notice.*
