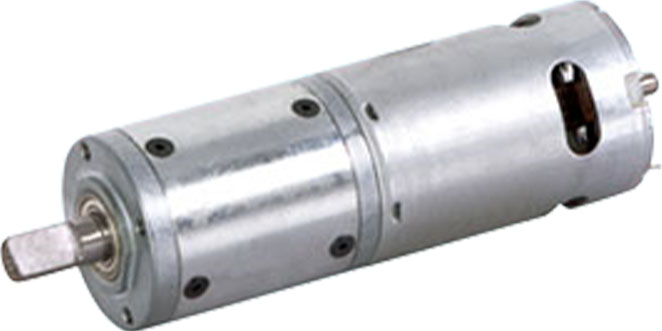

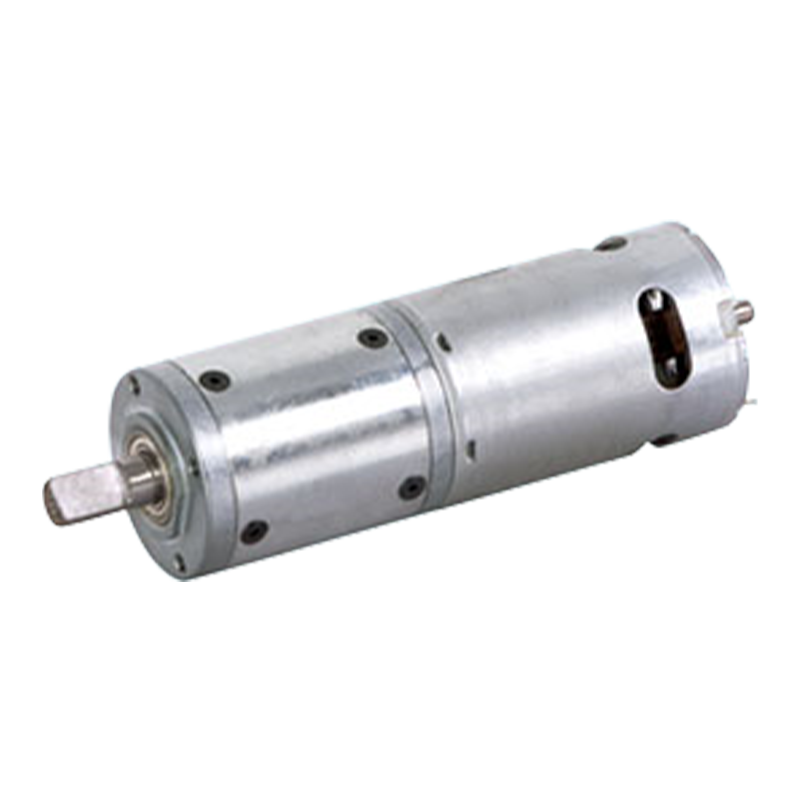

42JX150K/42ZY66 42mm 2-15N.m Permanent Magnet DC Brushed Planetary Gear Motor

42JX150K/42ZY66 42mm 2-15N.m Permanent Magnet DC Brushed Planetary Gear Motor

Permanent magnet DC planetary gear motor 42JX150K/42ZY66 is an external diameter of 42 mm enhanced reducer, allowing torque range: 2N.m~15N.m, no-load speed of 5700-7700rpm.
The interface and control mode of the motor are relatively simple, and the compatibility with various controllers and drive circuits is good. Whether in traditional industrial control systems or in some emerging intelligent devices, it can be easily integrated and adapted with other components, facilitating the design and development of the system.

  • 42JX150K/42ZY66 42mm 2-15N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZY85 42mm 3000/3600rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：36JXE30K/36ZY57 36mm 12v/24v Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZY66

42mm OD Reinforced Gearbox,

Permissible Load Range: 2N.m~15N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

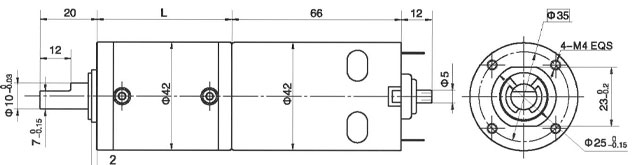

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

42ZY66-1257

12

5700

0.8

4800

45

25

3

280

15.2

42ZY66-1277

12

7700

1.3

6500

65

35

5

240

20.5

Gear Motor Technical Data

Configuration 42ZY66-1257 DC Motor (42ZY66-1257 DC Motor)

Reduction ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

504

Number of gear trains

1

2

2

2

3

3

3

3

3

4

4

4

4

Length(L) mm

32.5

39.2

39.2

39.2

46

46

46

46

46

52.5

52.5

52.5

52.5

No-load speed r/min

1628

407

335

271

116

93

68

55

45

33

27

19

11

Rated speed r/min

1371

343

285

229

98

79

57

47

38

28

23

16

9.5

Rated torque N.m

0.14

0.51

0.61

0.76

1.6

2

2.8

3.4

4.1

5.1

6.3

8.7

15

Max. permissible load in a short time N.m

3

12

12

12

25

25

25

25

25

30

30

30

30
Configuration 42ZY66-1277 DC Motor (42ZY66-1277 DC Motor)

Reduction ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

Number of gear trains

1

2

2

2

3

3

3

3

3

4

4

4

Length(L) mm

32.5

39.2

39.2

39.2

46

39.2

46

46

46

52.5

52.5

52.5

No-load speed r/min

2200

550

453

367

157

126

92

74

61

45

36

26

Rated speed r/min

1857

464

382

310

133

106

77

62

51

38

30

22

Rated torque N.m

0.21

0.74

0.89

1.1

2.3

2.8

4

4.9

6

8.2

9

14

Max. permissible load in a short time N.m

3

12

12

12

25

25

25

25

25

30

30

30

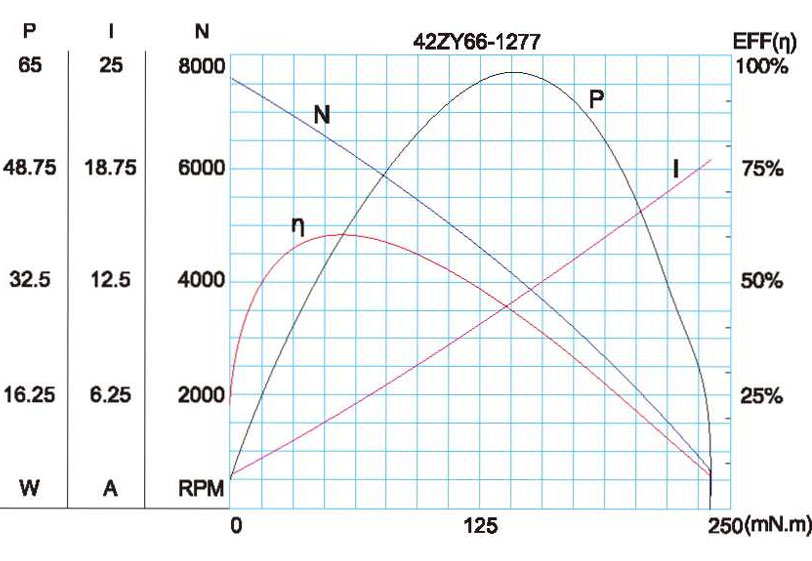

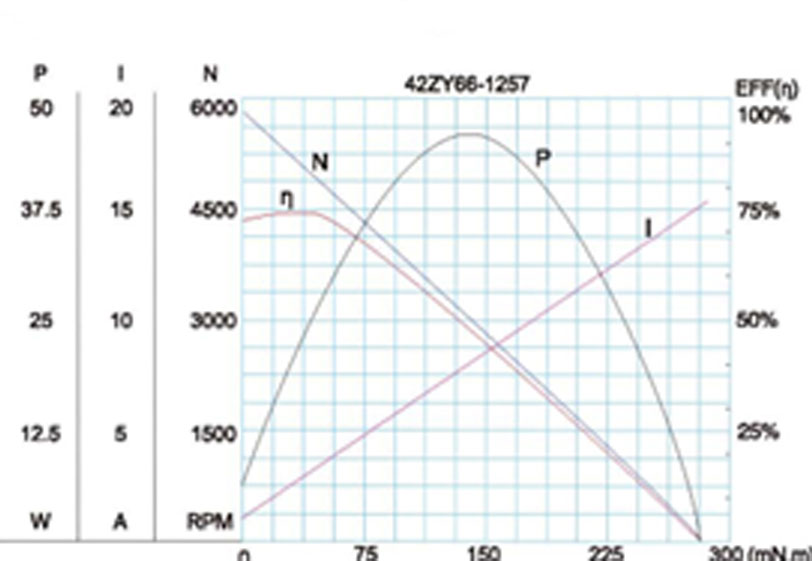

Motor Characteristic Figure

A-19

Technical parameters are subject to change without prior notice.*
