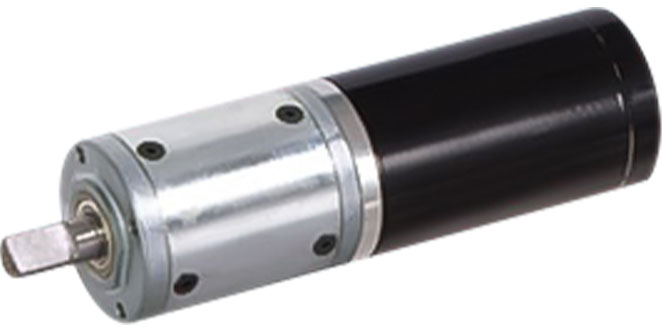

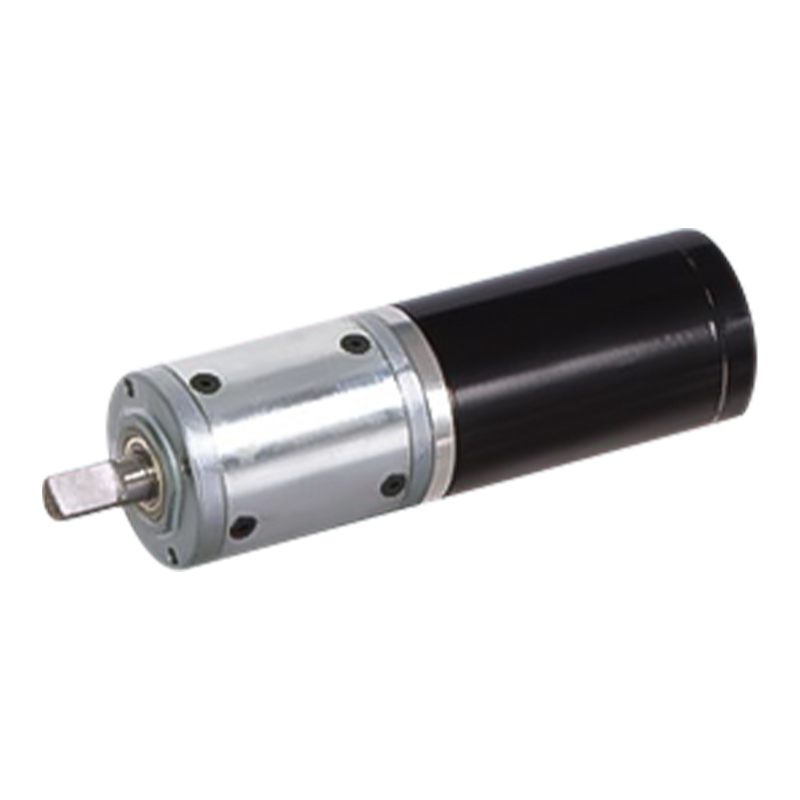

42JX150K/42ZY85 42mm 3000/3600rpm Permanent Magnet DC Brushed Planetary Gear Motor

42JX150K/42ZY85 42mm 3000/3600rpm Permanent Magnet DC Brushed Planetary Gear Motor

42JX150K/42ZY85 permanent magnet DC planetary gear motor, outer diameter 42 mm. It is a reinforced reducer, allowing the torque range of 2N.m~15 N.m.
The short-term overload capacity is strong; the brushed planetary gear motor can withstand a large overload current in a short time, and has a certain overload capacity. This allows it to temporarily provide additional torque in some occasions where a higher power output is required, such as when power tools encounter greater resistance, to overcome difficulties and ensure the smooth progress of work.

  • 42JX150K/42ZY85 42mm 3000/3600rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：42JXE100K/42ZY68P 2000-3000rpm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：42JX150K/42ZY66 42mm 2-15N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZY85

42mm OD Reinforced Gearbox

Permissible Load Range: 2N.m~15 N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

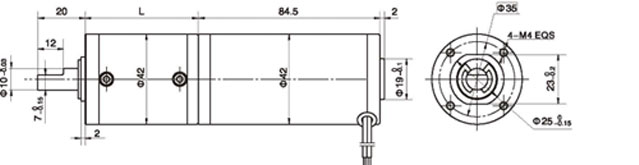

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

42ZY85-2430

24

3000

0.2

2400

70

15

1.2

280

3.7

42ZY85-2436

24

3600

0.3

2850

80

23

1.5

290

4.7

Gear Motor Technical Data

Configure 42ZY85-2430 DC Motor (42ZY85-2430 DC Motor)

Reduction ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

Number of gear trains

1

2

2

2

3

3

3

3

3

4

4

4

Length(L) mm

32.5

39.2

39.2

39.2

46

46

46

46

46

52.5

52.5

52.5

No-load speed r/min

857

214

176

143

61

49

36

28

24

17

14

10

Rated speed r/min

686

171

141

114

49

39

29

23

19

14

11

8

Rated torque N.m

0.22

0.79

0.96

1.2

2.5

3.1

4.2

5.3

6.4

7.9

9.8

13

Max. permissible load in a short time N.m

3

12

12

12

25

25

25

25

25

30

30

30
Configure 42ZY85-2436 DC Motor(42ZY85-2436 DC Motor)

Reduction ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

Number of gear trains

1

2

2

2

3

3

3

3

3

4

4

4

Length(L) mm

32.5

39.2

39.2

39.2

46

46

46

46

46

52.5

52.5

52.5

No-load speed r/min

1028

257

211

171

73

59

43

34

28

21

17

12

Rated speed r/min

814

203

167

136

58

48

34

27

22

16

13

10

Rated torque N.m

0.25

0.9

1.1

1.3

2.8

3.5

4.9

6

7.3

9

11

15

Max. permissible load in a short time N.m

3

12

12

12

25

25

25

25

25

30

30

30

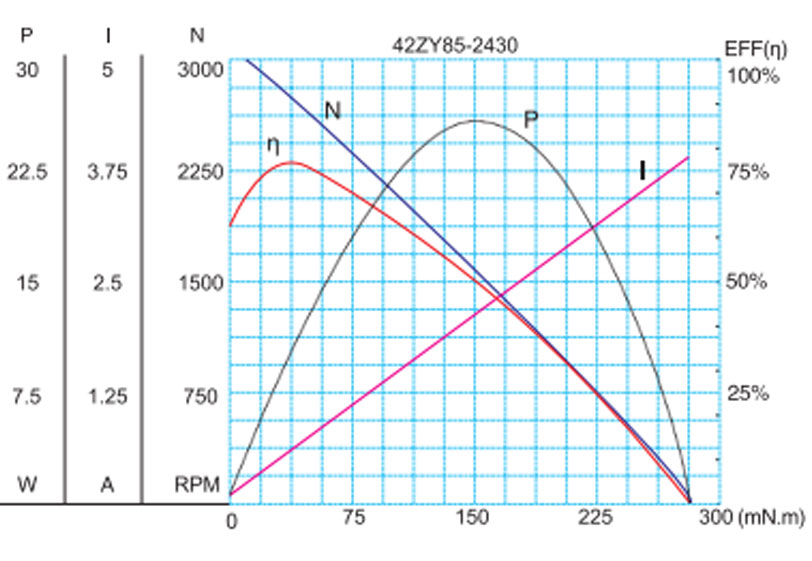

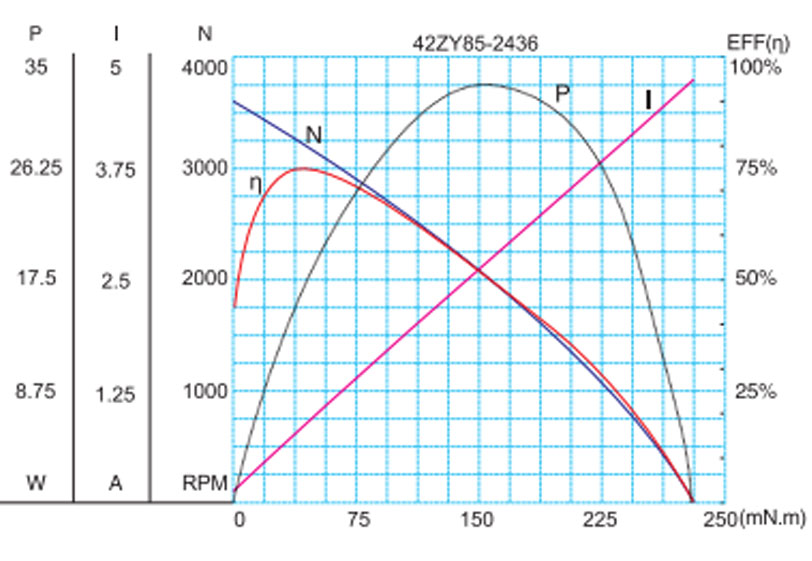

Motor Characteristic Figure

A-20

Technical parameters are subject to change without prior notice.*
