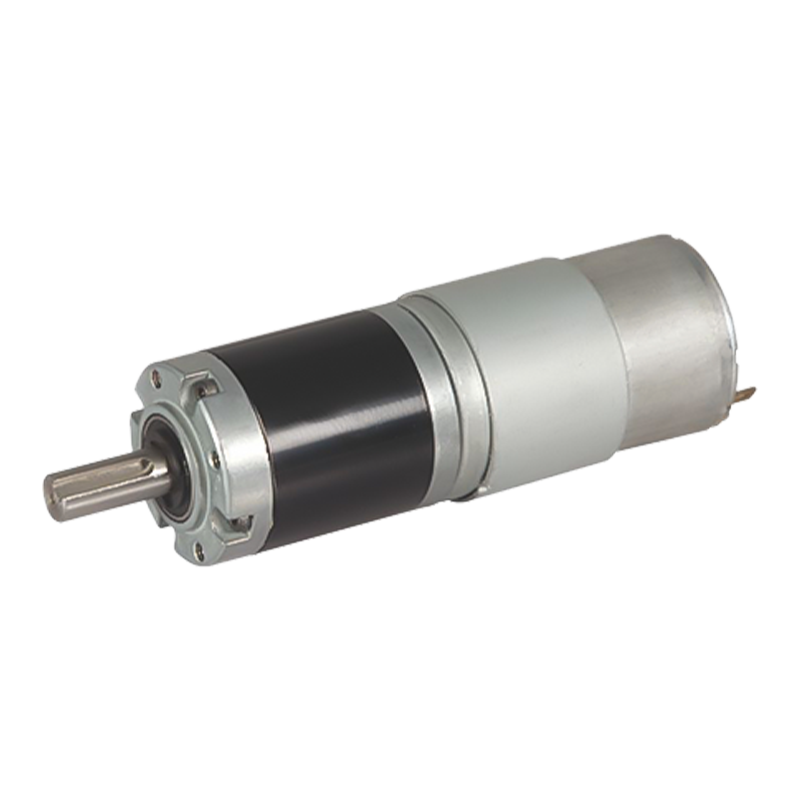

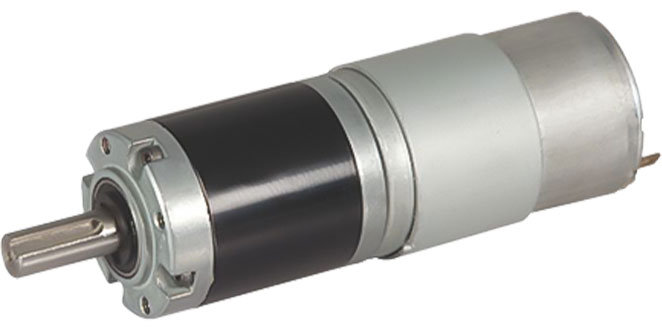

42JXE100K/42ZY68P 2000-3000rpm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

42JXE100K/42ZY68P 2000-3000rpm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

42JXE100K/42ZY68P permanent magnet DC planetary gear motor uses metal and powder metal inner ring, outer diameter of 42 mm, no-load speed 2000-3000 RPM.
This product combines the simple drive characteristics of a DC brush motor with the high torque amplification capabilities of a planetary gear system, with core performance characteristics such as high starting torque, low cost, easy control, and high maintenance flexibility.

  • 42JXE100K/42ZY68P 2000-3000rpm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：45JX100K/45ZY68 45mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：42JX150K/42ZY85 42mm 3000/3600rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JXE100K/42ZY68P

42mm OD Planetary Gearbox,

Permissible Load Range: 1N.m~10N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

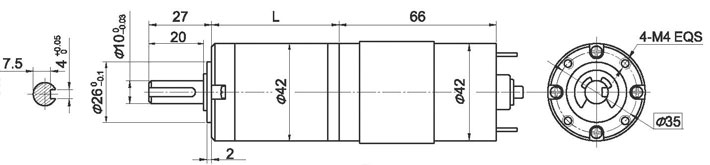

Dimensions

Ring gear can be selected within the two materials : Powder metal(Type:42JXF100K), Metal(Type: 42JXE100K)

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

42ZY68P-2420

24

2000

0.15

1700

50

8.7

0.6

220

2

42ZY68P-2430

24

3000

0.17

2200

40

9

1

150

2.3

Gear Motor Technical Data

Configure 42ZY68P-2420 DC Motor(42ZY68P-2420 DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L) mm

31.5

31.5

42.1

42.1

42.1

52.5

52.5

52.5

52.5

62.9

62.9

62.9

62.9

62.9

No-load speed r/min

539

386

143

105

74

39

28

20

14

11

7.9

6.5

5.6

4.7

Rated speed r/min

458

328

121

89

63

33

24

17

12

9.4

6.7

5.6

4.8

4

Rated torque N.m

0.17

0.23

0.57

0.77

1.1

1.9

2.6

3.7

5.1

6.1

8.3

1

10

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30

30

30
Configure 42ZY68P-2430 DC Motor (42ZY68P-2430 DC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

354

427

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

4

Length(L) mm

31.5

31.5

42.1

42.1

42.1

52.5

52.5

52.5

52.5

62.9

62.9

62.9

62.9

62.9

62.9

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

14

12

10

8.5

7

Rated speed r/min

593

425

157

116

81

43

31

22

16

12

10

8.7

7.2

6.2

5.2

Rated torque N.m

0.13

0.19

0.45

0.62

0.87

1.5

2.1

2.9

4.1

4.9

5.7

6.6

8

9.2

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30

30

30

30

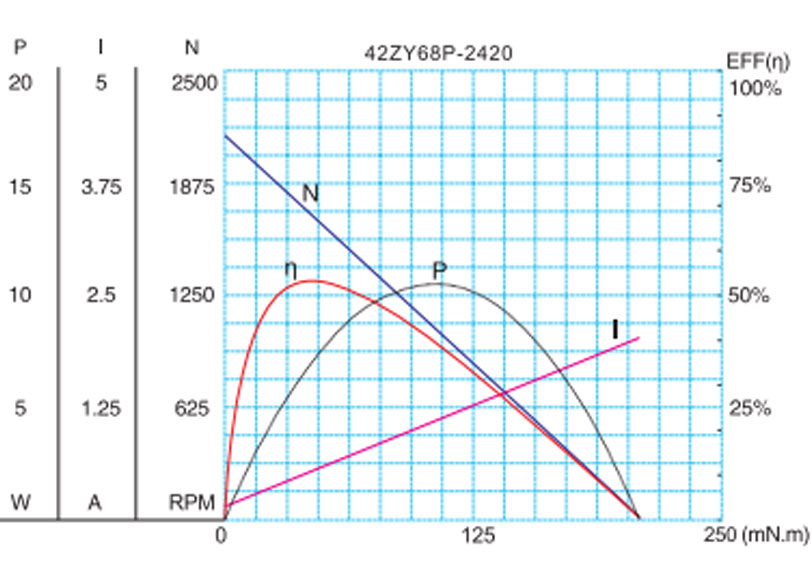

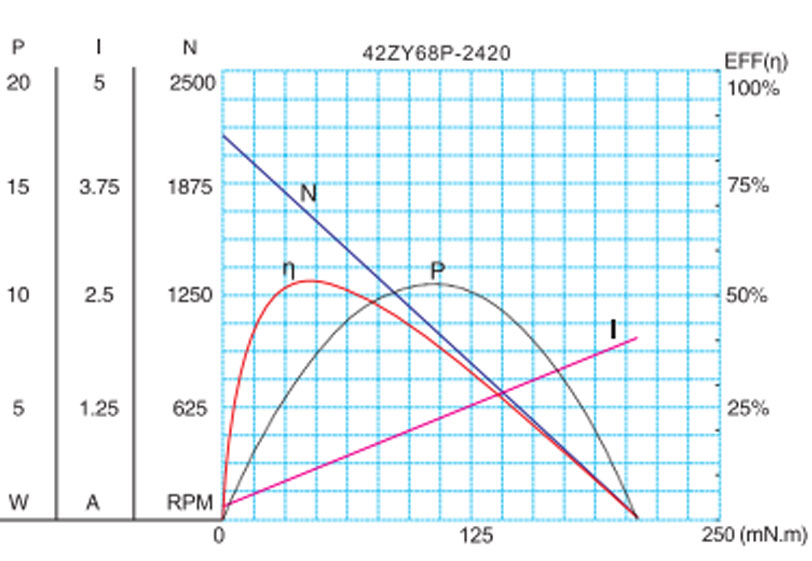

Motor Characteristic Figure

A-21

Technical parameters are subject to change without prior notice.*
