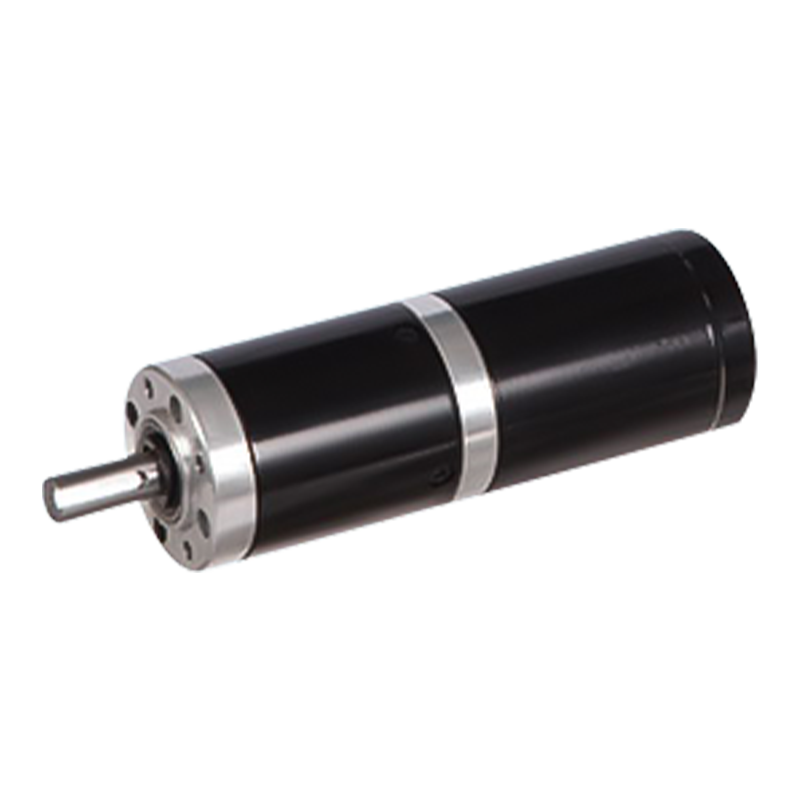

45JX100K/45ZY68 45mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

45JX100K/45ZY68 45mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

45JX100K/45ZY68 is a reinforced reducer with an outer diameter of 45 mm, allowing torque range: 1N.m~10N.m. The no-load speed is 3000-4000rpm.
The product has high starting torque and instantaneous overload capability. The brush is in direct contact with the commutator, and 2-3 times the rated torque can be provided at the start moment, which is suitable for scenes requiring frequent start and stop or sudden load (such as power tools and rolling shutter door drive). The output torque is further amplified by the deceleration ratio to meet heavy-duty requirements such as industrial valve control.

  • 45JX100K/45ZY68 45mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：45JX100K/45ZY78 45mm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：42JXE100K/42ZY68P 2000-3000rpm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

45JX100K/45ZY68

45mm OD Reinforced Gearbox,

Permissible Load Range: 1N.m~10N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

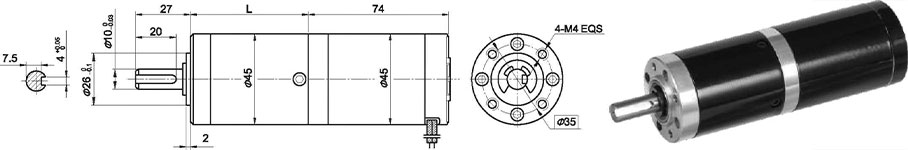

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

45ZY68-2430

24

3000

0.2

2400

45

12

0.8

190

2.7

45ZY68-2440

24

4000

0.3

3200

55

18

1.2

195

3

Gear Motor Technical Data

Configuration 45ZY68-2430 DC Motor(45ZY68-2430 DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

35.3

35.5

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated speed r/min

647

463

171

126

89

47

34

24

17

13

9.1

6.5

Rated torque N.m

0.15

0.21

0.51

0.69

0.98

1.7

2.3

3.3

4.6

5.6

7.8

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30
Configuration 45ZY68-2440 DC Motor(45ZY68-2440 DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

35.3

35.5

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

No-load speed r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated speed r/min

862

617

228

168

118

62

45

32

24

17

12

8.7

Rated torque N.m

0.18

0.26

0.62

0.84

1.2

2

2.8

4

5.6

6.8

9.5

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30

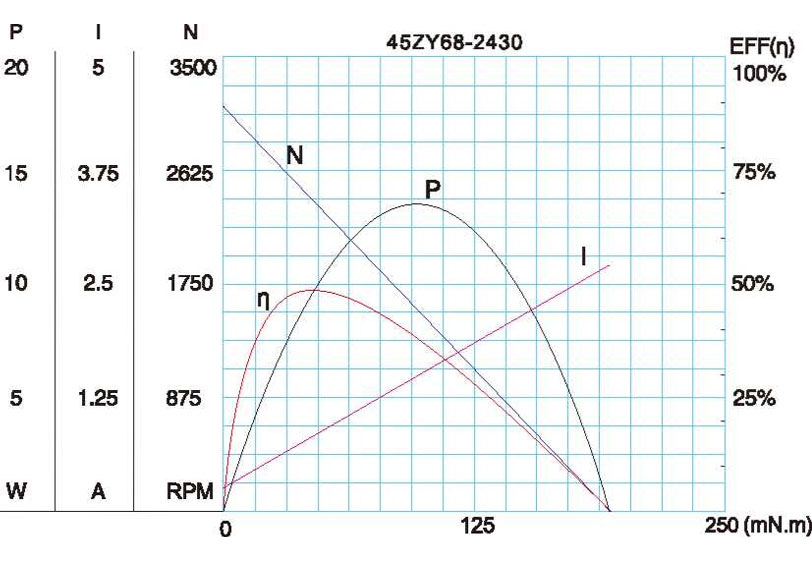

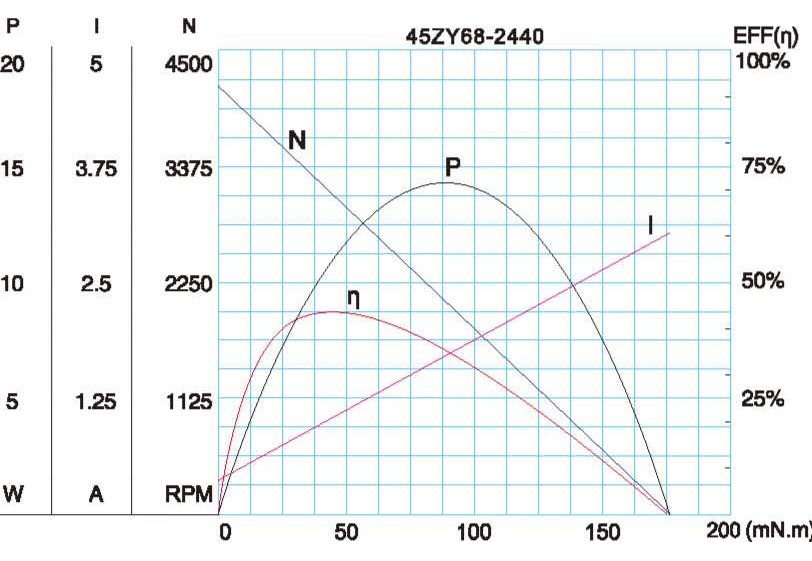

Motor Characteristic Figure

A-22

Technical parameters are subject to change without prior notice.*
