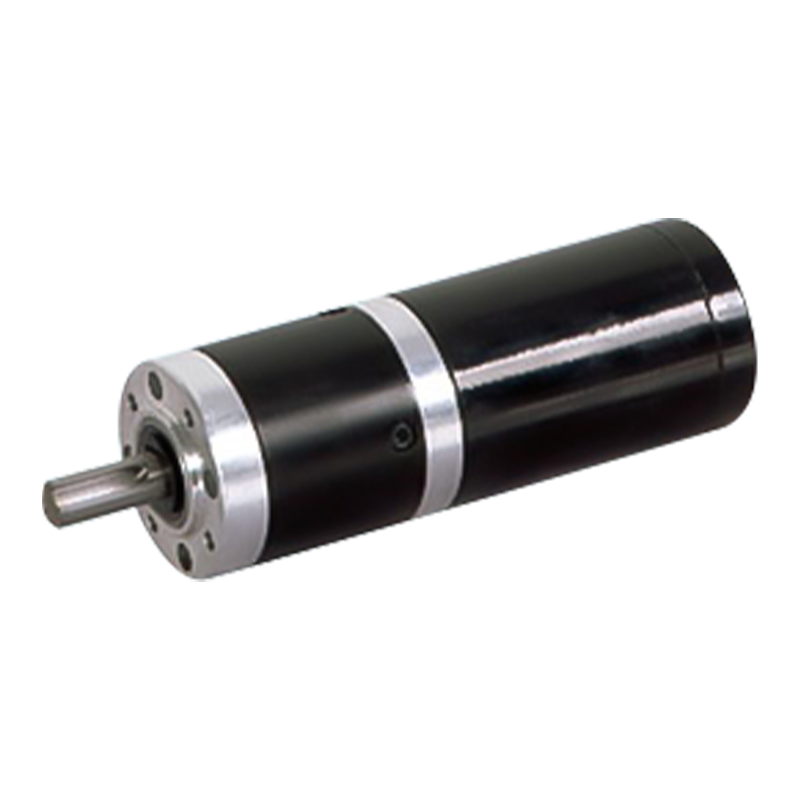

45JX100K/45ZY78 45mm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

45JX100K/45ZY78 45mm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

The permanent magnet DC planetary gear motor 45JX100K/45ZY78 belongs to the enhanced reducer with an outer diameter of 45 mm, allowing the torque range of 1N.m~10N.m, and the no-load speed of 3000-4000rpm.This product has the characteristics of low cost and high cost performance. Simplified structure No electronic commutator (such as Hall sensor), simple circuit design, the overall cost is 30%-50% lower than the brushless scheme, typical used in household appliances (blenders, vacuum cleaners), low-cost automation equipment. It is easier to maintain and the cost can be controlled, and the brush can be replaced after wear to avoid the whole machine being scrapped.

  • 45JX100K/45ZY78 45mm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：45JX100K/45ZYN68 12V/24V 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：45JX100K/45ZY68 45mm 3000-4000rpm Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

45JX100K/45ZY78

45mm OD Reinforced Gearbox,

Permissible Load Range: 1N.m~10N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

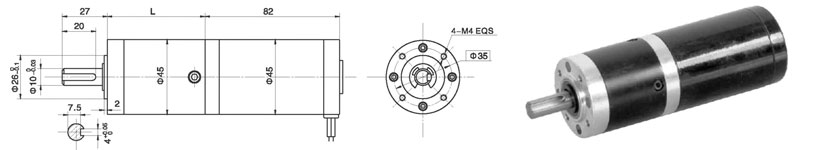

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

45ZY78-2430

24

3000

0.22

2400

55

15

1

240

3

45ZY78-2440

24

4000

0.3

3200

70

23

1.5

310

4.8

Gear Motor Technical Data

Configuration 45ZY78-2430 DC Motor (45ZY78-2430 DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated speed r/min

647

463

171

126

89

47

34

24

17

13

9.3

6.5

Rated torque N.m

0.18

0.26

0.62

0.84

1.2

2

2.8

4

5.6

6.8

9.5

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30
Configuration 45ZY78-2440 DC Motor (45ZY78-2440 DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

No-load speed r/min

1078

772

286

211

148

78

56

40

29

21

15

Rated speed r/min

863

618

229

168

119

63

45

32

23

17

12

Rated torque N.m

0.23

0.32

0.79

1

1.5

2.6

3.6

5.1

7.1

8.7

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

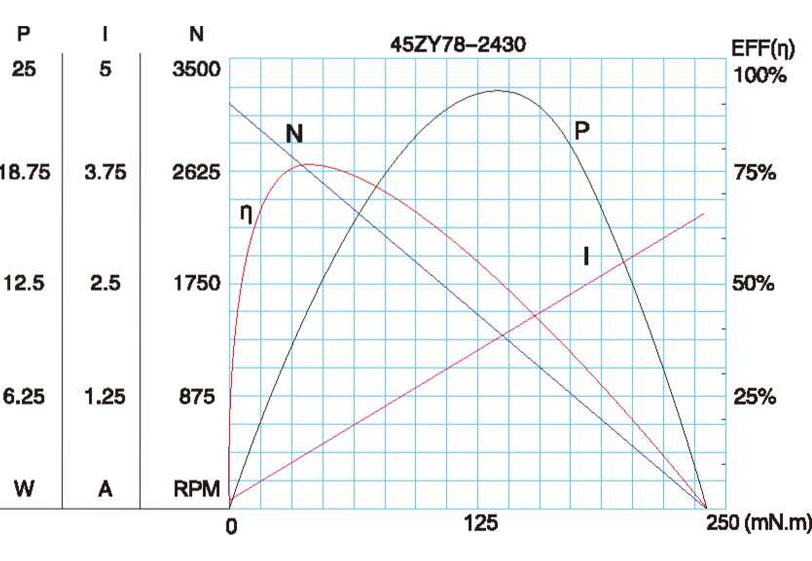

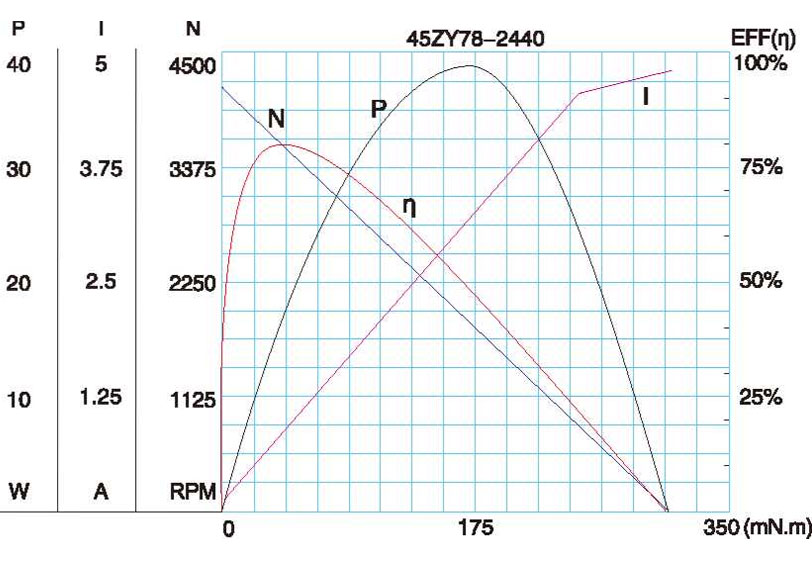

Motor Characteristic Figure

A-23

Technical parameters are subject to change without prior notice.*
