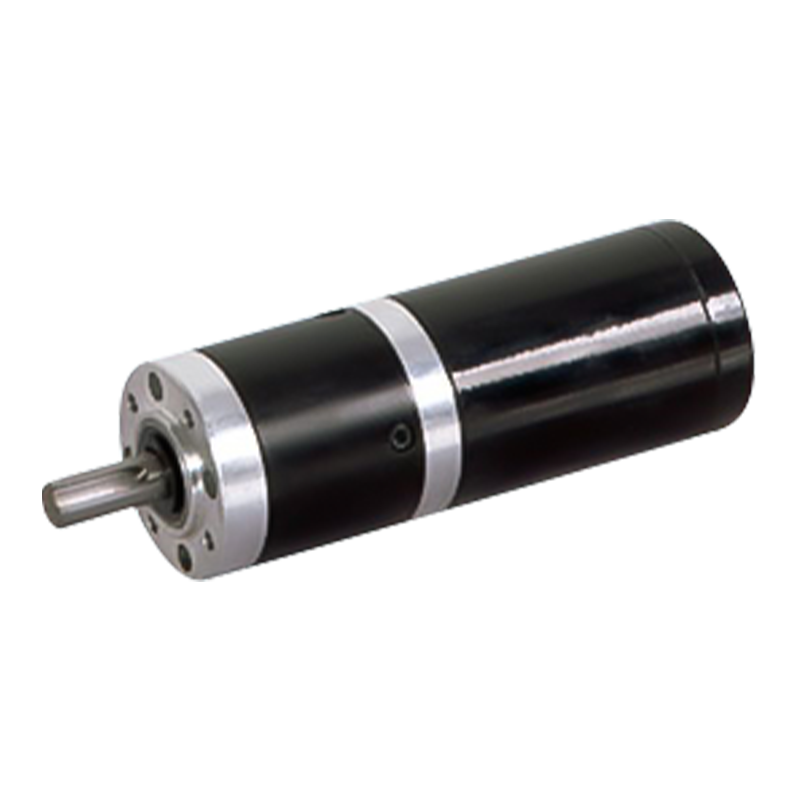

45JX100K/45ZYN68 12V/24V 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

45JX100K/45ZYN68 12V/24V 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 45JX100K/45ZYN68 permanent magnet DC planetary gear motor features a metal planetary gear structure with an outer diameter of 42 mm, combining compact and high torque output. Allowable torque range: 1N.m~10N.m, support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The power output of this product is characterized by high torque and stable output. The planetary gear mechanism can achieve a large transmission ratio, reduce the speed of the motor and convert it into a high torque output, suitable for driving loads requiring greater force. The transmission structure is symmetrical, the force is uniform, and the operation is smooth, which can provide stable power output and reduce torque fluctuation.

  • 45JX100K/45ZYN68 12V/24V 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：52JXM200K/52ZY85 52mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：45JX100K/45ZY78 45mm 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

45JX100K/45ZYN68

42mm OD Reinforced Gearbox,

Permissible Load Range: 13N.m~10N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

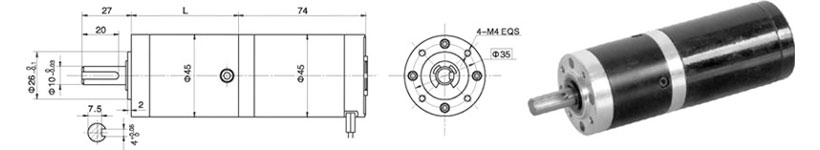

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

45ZYN68-2420

24

2000

0.18

1600

42

7

0.5

220

2

45ZYN68-2430

24

3000

0.25

2400

65

16

1.2

300

4.4

45ZYN68-2440

24

4000

0.3

3200

90

30

2

375

6.8

Gear Motor Technical Data

Configuration 45ZYN68-2420 Rare Earth DC Motor (45ZYN68-2420 Rare Earth DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

No-load speed r/min

539

386

143

105

74

39

28

20

14

11

7.6

5.4

Rated speed r/min

431

309

114

84

59

31

22

16

9.5

8.5

6

4.3

Rated torque N.m

0.14

0.2

0.34

0.65

0.92

1.6

2.2

3.1

4.2

5.2

7.3

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

30
Configuration 45ZYN68-2430 Rare Earth DC Motor (45ZYN68-2430 Rare Earth DC Motor)

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

No-load speed r/min

809

579

214

158

111

59

42

30

22

16

11

Rated speed r/min

647

463

171

126

89

47

34

24

17

13

9.5

Rated torque N.m

0.22

0.3

0.74

1

1.4

2.4

3.4

4.7

6.6

8.1

10

Max. permissible load in a short time N.m

3

3

12

12

12

25

25

25

25

30

30

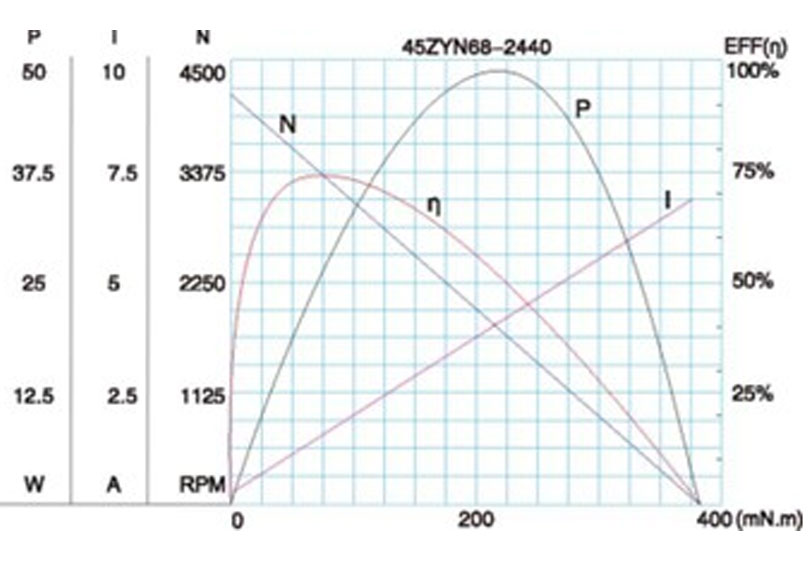

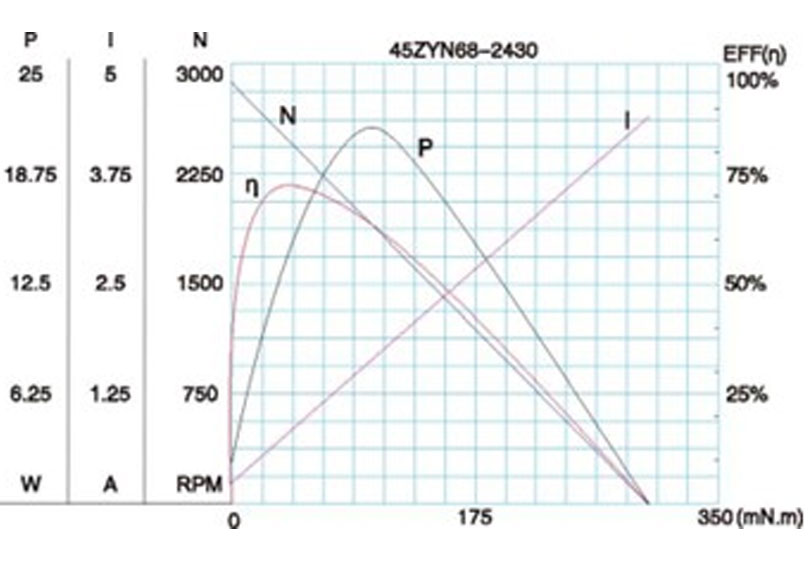

Motor Characteristic Figure

A-24

Technical parameters are subject to change without prior notice.*
