52JXM200K/52ZY85 52mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

52JXM200K/52ZY85 52mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

52JXM200K/52ZY85(Permanent magnet DC planetary gear motor with metal planetary gear construction, outer diameter of 52 mm, both compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The product has a wide speed range, and can adjust the speed of the motor in a wide range by changing the input voltage, etc., to meet the speed requirements of different application scenarios. The control system of the brush motor is relatively simple, and the motor responds quickly to the control signal, enabling quick start, stop and speed switching.

  • 52JXM200K/52ZY85 52mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：52JXM200K/52ZY95 2000-4000rpm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：45JX100K/45ZYN68 12V/24V 1-10N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

52JXM200K/52ZY85

52mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~20N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

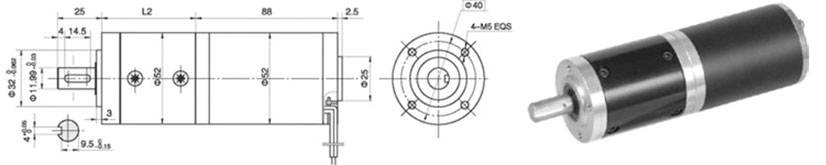

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

52ZY85-2420

24

2000

0.25

1600

60

10

0.9

260

5

52ZY85-2430

24

3000

0.35

2400

75

18

1.5

320

6

52ZY85-2440

24

4000

0.42

3200

80

27

2

446

7.5

Gear Motor Technical Data

Configuration 52ZY85-2420 DC Motor(52ZY85-2420 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

162

225

312

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

50

50

50

65

65

65

65

65

80

80

80

80

80

No-load speed r/min

444

320

250

100

71

55

40

31

22

16

12

9

6.4

Rated speed r/min

356

256

200

80

57

44

32

25

17.5

12

9.8

7

5

Rated torque N.m

0.24

0.34

0.43

0.97

1.3

1.7

2.4

3.1

4

5.5

7

9.8

13.6

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50
Configuration 52ZY85-2430 DC Motor(52ZY85-2430 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

162

225

312

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

50

50

50

65

65

65

65

65

80

80

80

80

80

No-load speed r/min

666

480

375

150

106

88

60

46

33

24

18

13

9

Rated speed r/min

533

384

300

120

85

70

48

37

25

18

13

10

7.5

Rated torque N.m

0.3

0.42

0.54

1.2

1.7

2.2

3

3.9

5

6.9

8.9

12.3

17

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

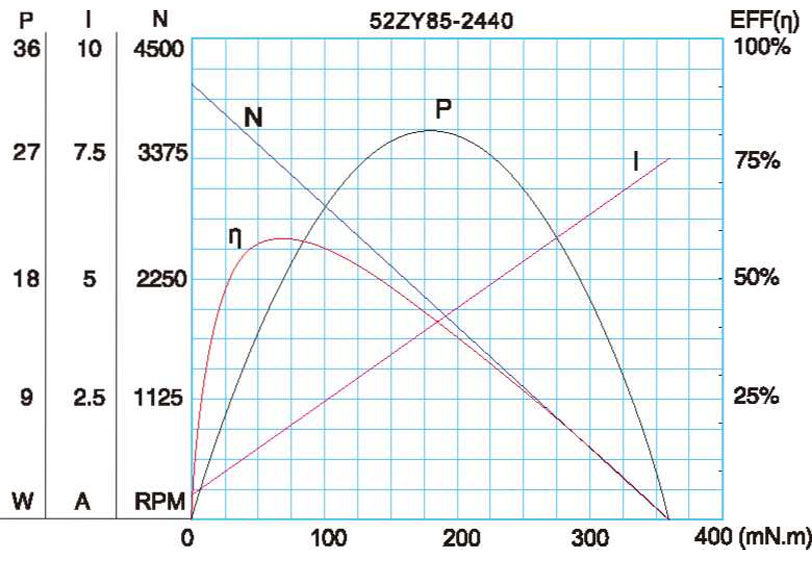

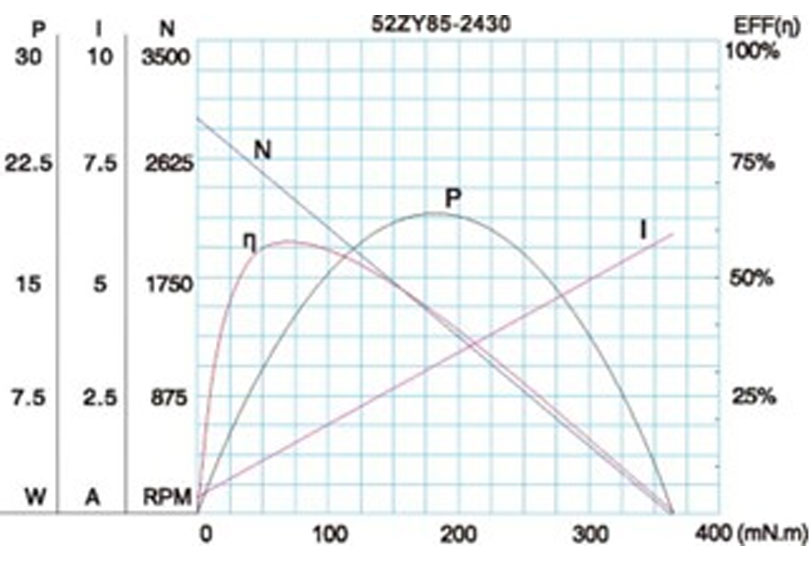

Motor Characteristic Figure

A-25

Technical parameters are subject to change without prior notice.*
