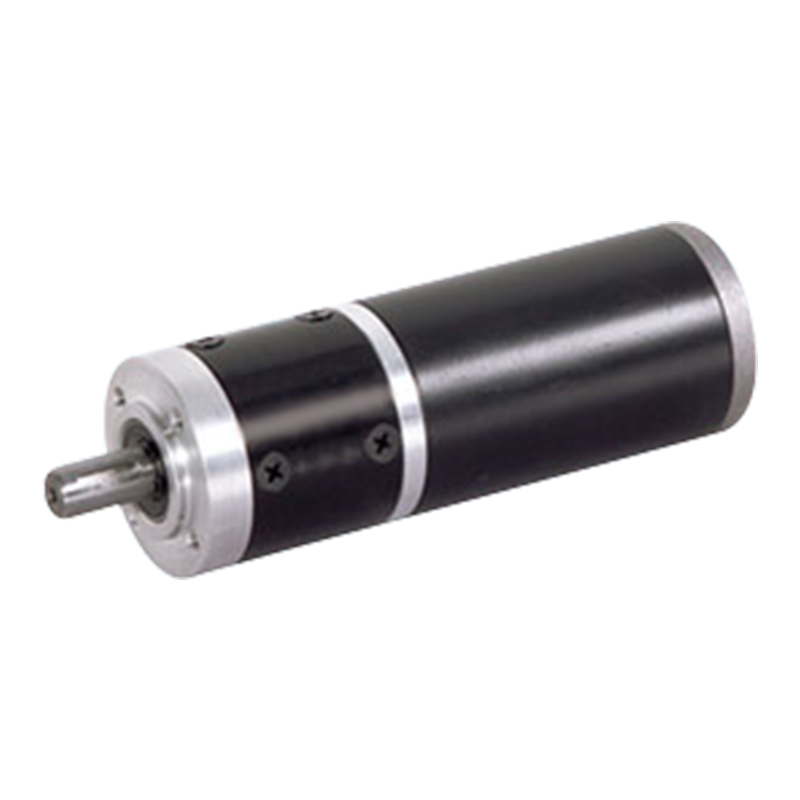

52JXM200K/52ZY95 2000-4000rpm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

52JXM200K/52ZY95 2000-4000rpm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

The outer diameter of the planetary reducer 52JXM200K/52ZY95 is 52 mm, allowing the torque range: 2N.m~20N.m, no-load speed is 2000-4000rpm, suitable for 12v/24v dual voltage environment.
The product combined with the appropriate control system, can achieve a high position accuracy, suitable for some position control requirements strict occasions. Within a certain load range, the efficiency is higher, the planetary gear transmission efficiency is higher, and under the right load conditions, the entire motor system can maintain a good energy conversion efficiency and reduce energy consumption.

  • 52JXM200K/52ZY95 2000-4000rpm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：52JXM200K/52ZY125 12v/24v 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：52JXM200K/52ZY85 52mm 12V/24V Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

52JXM200K/52ZY95

52mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~20N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

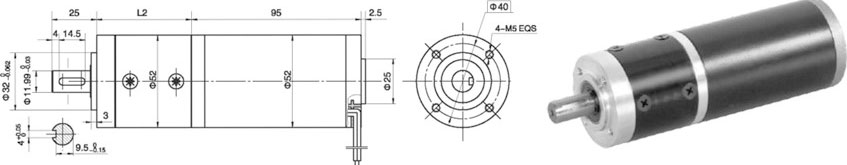

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

52ZY95-2420

24

2000

0.2

1600

80

15

1.2

400

4.2

52ZY95-2430

24

3000

0.3

2400

100

25

1.8

410

6

52ZY95-2440

24

4000

0.4

3200

150

50

3.5

585

11

Gear Motor Technical Data

Configuration 52ZY95-2420 DC Motor(52ZY95-2420 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

162

225

312

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

49

49

49

65

65

65

65

65

80

80

80

80

80

No-load speed r/min

444

320

250

100

71

56

40

31

22

16

12

9

6

Rated speed r/min

356

256

200

80

57

44

32

25

17

12

9

7

5

Rated torque N.m

0.32

0.45

0.58

1.3

1.8

2.2

3.2

4.1

5.3

7.4

9.5

13.1

18.2

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50
Configuration 52ZY95-2430 DC Motor(52ZY95-2430 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

162

225

312

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

Length(L) mm

49

49

49

65

65

65

65

65

80

80

80

80

80

No-load speed r/min

666

480

375

150

106

83

60

46

33

24

18

13

9

Rated speed r/min

533

384

300

120

85

66

48

37

25

18

13

10

7.5

Rated torque N.m

0.4

0.56

0.72

1.6

2.2

2.7

4

5.1

6.6

9.2

11.8

16.3

22

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

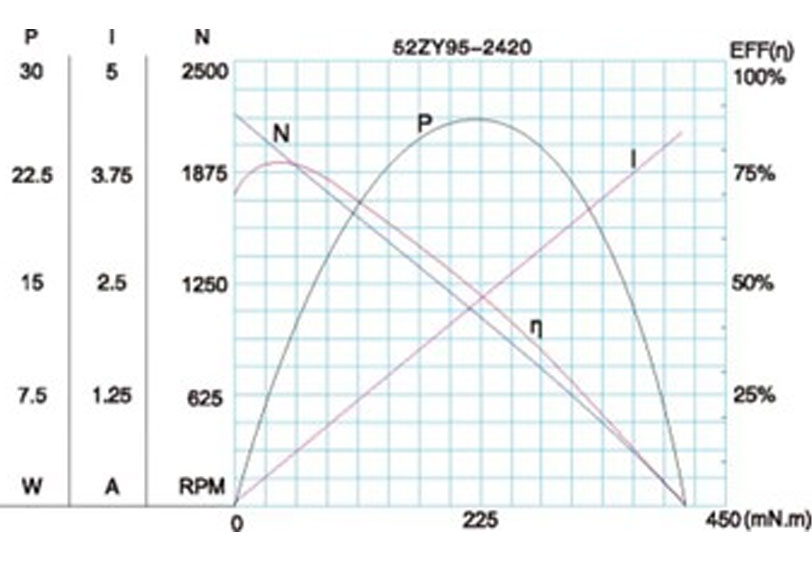

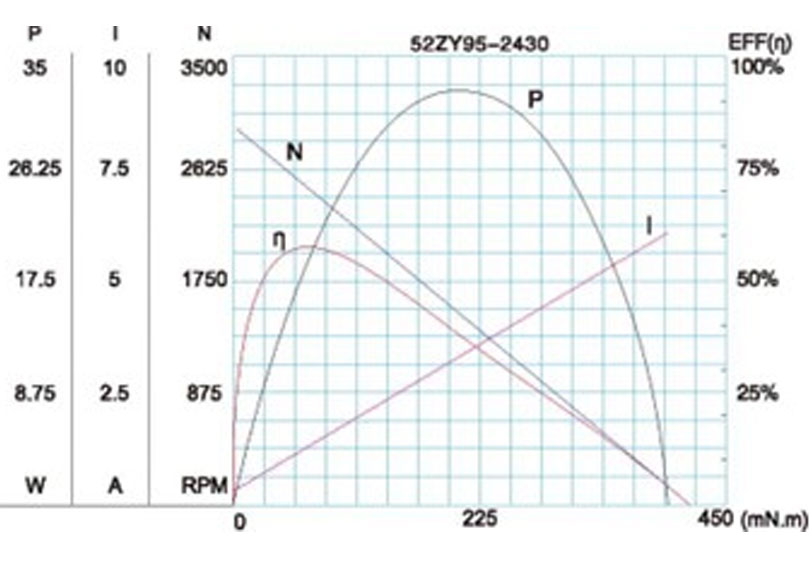

Motor Characteristic Figure

A-26

Technical parameters are subject to change without prior notice.*
