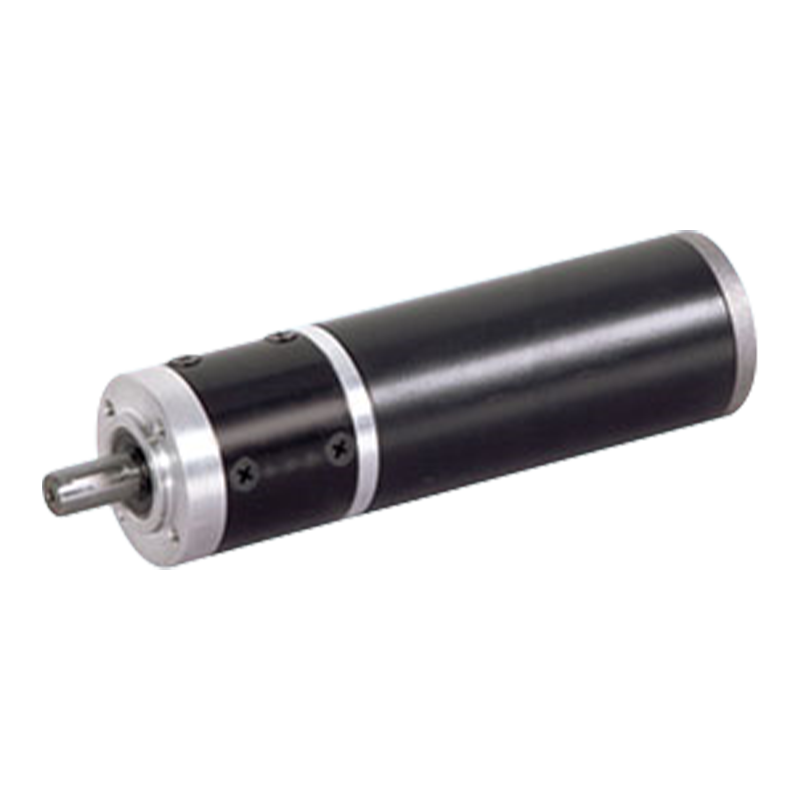

52JXM200K/52ZY125 12v/24v 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

52JXM200K/52ZY125 12v/24v 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

The product 52JXM200K/52ZY125 uses an inner ring made of metal with an outer diameter of 52 mm, which can be used in a dual voltage environment of 12V/24V, and the allowable torque range is 2N.m~20N.m.
Combines the simple drive characteristics of a DC brush motor with the high torque amplification capabilities of a planetary gear system. The planetary gear is compact and durable, takes up little space, and the gear is precision machined and well lubricated, with high wear resistance and reliability, and can run stably for a long time.

  • 52JXM200K/52ZY125 12v/24v 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：56JX200K/60ZY75 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：52JXM200K/52ZY95 2000-4000rpm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

52JXM200K/52ZY125

52mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~20N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

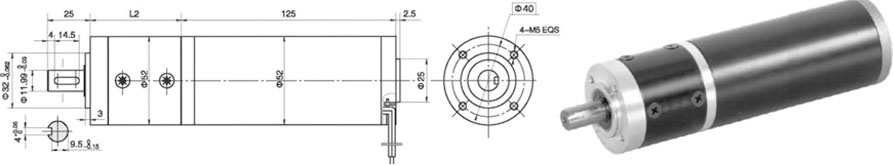

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

52ZY125-2420

24

2000

0.4

1600

160

28

2

620

6.5

52ZY125-2430

24

3000

0.6

2400

190

50

4

700

11.5

52ZY125-2440

24

4000

0.8

3200

220

80

5

838

16.4

Gear Motor Technical Data

Configuration 52ZY125-2430 DC Motor(52ZY125-2430 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

162

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

Length(L) mm

50

50

50

65

65

65

65

65

80

80

80

No-load speed r/min

666

480

375

150

106

83

60

46

33

24

18

Rated speed r/min

533

384

300

120

85

66

48

37

25

18

13

Rated torque N.m

0.76

1

1.3

3

4.3

5.2

7.6

9.8

12.6

17.6

22

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50
Configure 52ZY125-2440 DC Motor (52ZY125-2440 DC Motor)

Reduction ratio

4.5

6.25

8

20

28

36

50

64

91

127

Number of gear trains

1

1

1

2

2

2

2

2

3

3

Length(L) mm

50

50

50

65

65

65

65

65

80

80

No-load speed r/min

888

640

500

200

142

111

80

62

44

31

Rated speed r/min

711

512

400

160

114

88

64

50

35

25

Rated torque N.m

0.9

1.2

1.5

3.5

4.9

6

8.9

11.4

14.6

20

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

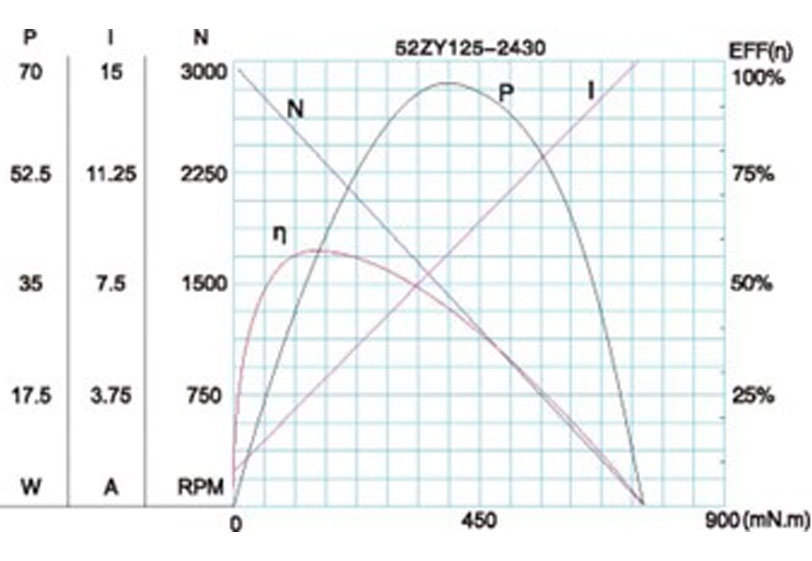

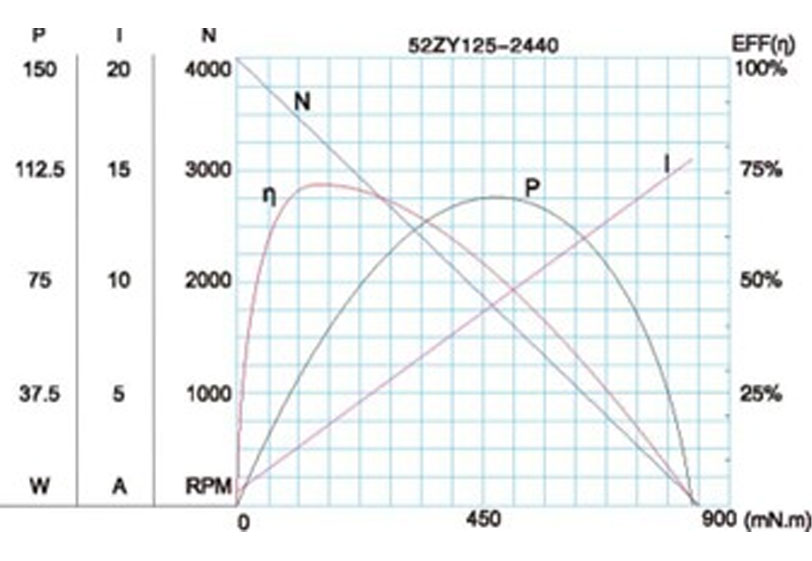

Motor Characteristic Figure

A-27

Technical parameters are subject to change without prior notice.*
