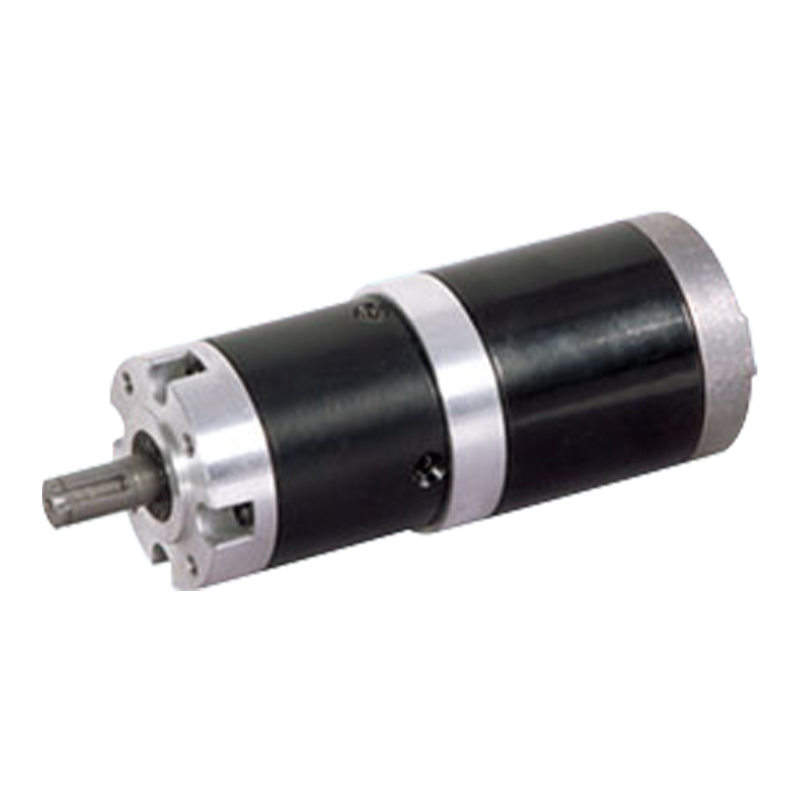

56JX200K/60ZY75 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

56JX200K/60ZY75 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

56JX200K/60ZY75 is a standard reducer with an outer diameter of 56 mm, allowing a torque range of 2N.m~20N.m, supporting 12v/24v dual voltage environment, suitable for different energy efficiency scenarios.
The planetary gear mechanism of the product has a good torque amplification effect, which can double the output torque of the motor to meet the high load demand. For example, in the joint drive of industrial robots, the robot arm can be easily driven to complete various actions.
The product can adjust the speed in a wide range by changing the input voltage or using the speed control controller to adapt to different working scenarios. As in electric vehicles, the motor speed can be adjusted flexibly according to the driving speed requirements.

  • 56JX200K/60ZY75 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：56JX200K/60ZY95 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：52JXM200K/52ZY125 12v/24v 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX200K/60ZY75

56mm OD Standard Gearbox,

Permissible Load Range: 2N.m~20N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

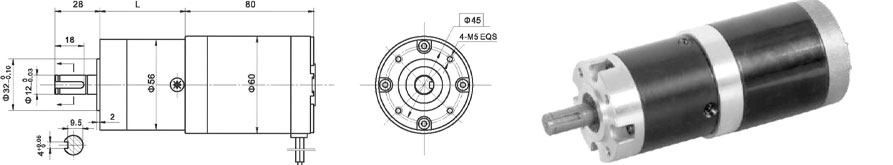

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

60ZY75-2420

24

2000

0.3

1600

50

8

0.8

215

2.1

60ZY75-2430

24

3000

0.4

2400

70

17

1.2

296

5

60ZY75-2440

24

4000

0.5

3200

90

30

2.2

404

8.5

Gear Motor Technical Data

Configuration 60ZY75-2430 DC Motor(60ZY75-2430 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

115

168

198

234

276

326

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

4

4

Length(L) mm

41

41

41

53

53

53

53

53

64

64

64

64

64

76

76

76

76

76

No-load speed r/min

833

706

400

230

200

167

111

94

64

54

46

39

26

18

15

13

11

9

Rated speed r/min

667

565

320

185

160

133

89

75

51

44

37

32

20

14

12

10

9

7.5

Rated torque N.m

0.22

0.26

0.47

0.73

0.85

1

1.5

1.8

2.4

2.8

3.3

3.8

5.8

7.7

9.1

10.8

12.7

15

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

60

60

60

60

60
Configure 60ZY75-2440 DC Motor(60ZY75-2440 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

115

168

198

234

276

326

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

4

4

Length(L) mm

41

41

41

53

53

53

53

53

64

64

64

64

64

76

76

76

76

76

No-load speed r/min

1111

941

533

308

267

222

148

125

85

73

62

53

26

24

20

17

15

12

Rated speed r/min

889

753

426

246

213

177

118

100

68

58

49

42

27

19

16

13

11

9.5

Rated torque N.m

0.29

0.34

0.6

0.94

1.1

1.3

1.9

2.3

3

3.6

4.2

4.9

7.5

10

11.7

13.8

16.3

19.3

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

60

60

60

60

60

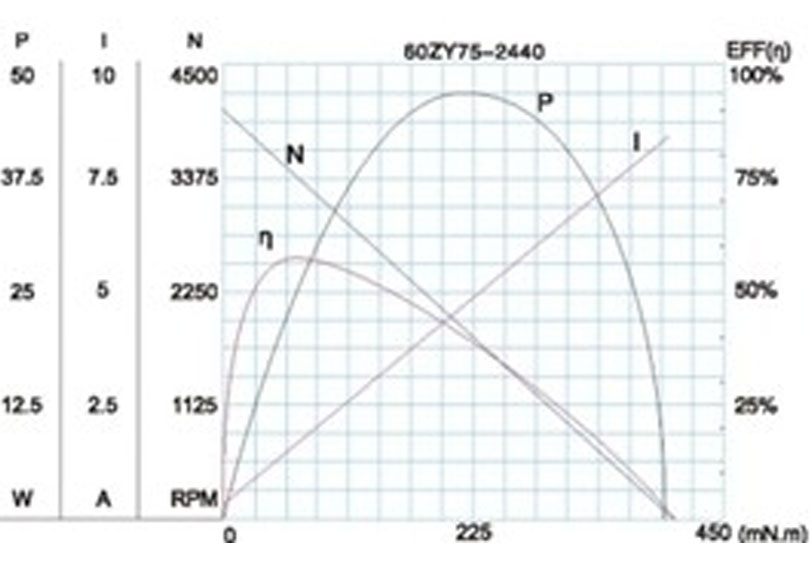

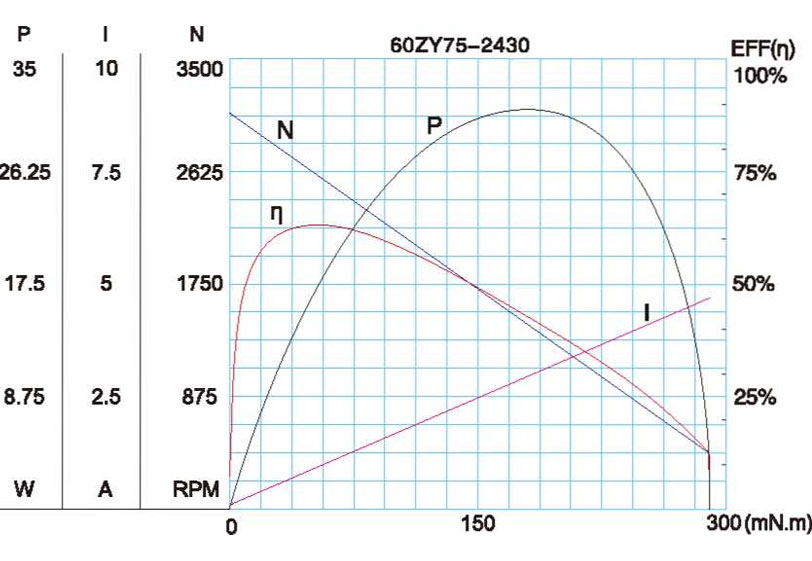

Motor Characteristic Figure

A-28

Technical parameters are subject to change without prior notice.*
