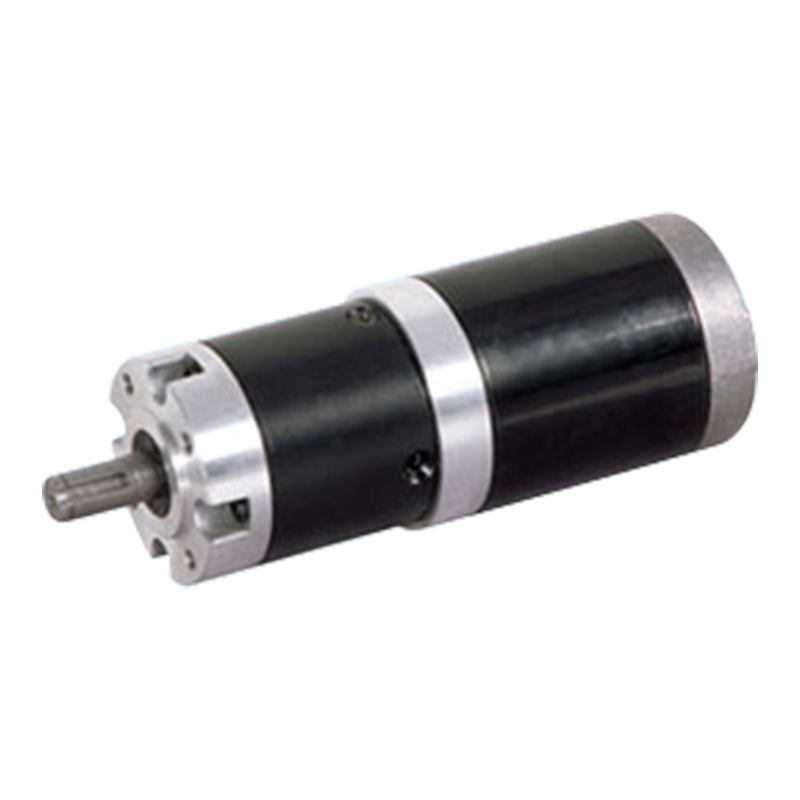

56JX200K/60ZY95 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

56JX200K/60ZY95 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

The 56JX200K/60ZY95 Permanent Magnet DC Planetary Gear Motor features a compact 56mm outer diameter and a metal planetary gear structure, delivering high torque output . Dual voltage options (12V/24V/48V) cater to diverse efficiency requirements, with the 48V version optimized for high-power-density applications.

Rated current (1.3A–3.0A) ensures adaptable energy consumption, while multi-stage reduction ratios (36/43/75/13/15) enable precise speed adjustment (114–765 RPM) with ±2% tolerance for stable transmission. High reduction ratios (e.g., 75:1) enhance low-speed torque for heavy-load scenarios, whereas low ratios (e.g., 13:1) prioritize rapid response in light-duty operations.

The planetary gear system ensures high transmission efficiency, and metal gears improve durability for automation equipment, logistics sorting systems, and power tools. Modular shaft diameter/length design simplifies integration, reducing installation costs. Its broad torque range, high torque density, and precise speed control address complex industrial demands.

  • 56JX200K/60ZY95 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquiry
PREV：56JX300K/60ZY105 2000-5000rpm 2-30N.m Permanent Magnet DC Brushed Planetary Gear Motor
NEXT：56JX200K/60ZY75 56mm 2-20N.m Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX200K/60ZY95

56mm OD Standard Gearbox,

Permissible Load Range: 2N.m~20N.m

PM DC Planetary Gear Motor (Ring Gear Material: Metal)

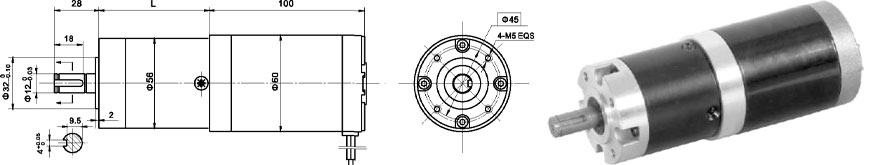

Dimensions

Motor Technical Data

Type

Rated Voltage VDC

No-load Speed r/min

No-load current mA

Rated Speed r/min

Rated torquemN.m

Output Power W

Rated current mA

Stall torque mN.m

Stall Current A

60ZY95-2420

24

2000

0.4

1600

150

25

1.8

560

6

60ZY95-2430

24

3000

0.5

2400

180

40

3

690

11

Gear Motor Technical Data

Configuration 60ZY95-2420 DC Motor(60ZY95-2420 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

115

168

198

234

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

4

Length(L) mm

41

41

41

53

53

53

61

61

64

64

64

64

64

76

76

76

No-load speed r/min

556

470

266

154

133

111

74

63

43

36

31

26

17

12

10

9

Rated speed r/min

444

376

213

123

106

88

59

50

34

29

24

21

14

9.5

8

6.8

Rated torque N.m

0.48

0.57

1

1.5

1.8

2.1

3.2

3.8

5.1

6

7.1

8.3

12.5

16.5

19.6

20

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

60

60

60
Configuration 60ZY95-2430 DC Motor(60ZY95-2430 DC Motor)

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

76

115

168

198

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

3

4

4

Length(L) mm

41

41

41

53

53

53

53

53

64

64

64

64

64

76

76

No-load speed r/min

833

706

400

230

200

167

111

94

64

54

46

39

26

18

15

Rated speed r/min

667

565

320

185

160

133

89

75

51

44

37

32

20

14

12

Rated torque N.m

0.58

0.68

0.82

1.9

2.1

2.6

3.9

4.6

6.1

72

8.5

10

15

19

20

Max. permissible load in a short time N.m

6

6

6

25

25

25

25

25

50

50

50

50

50

60

60

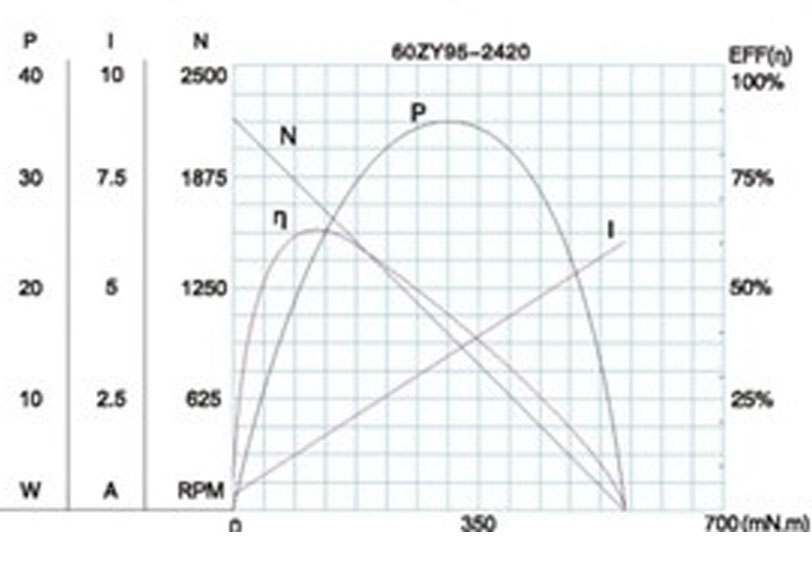

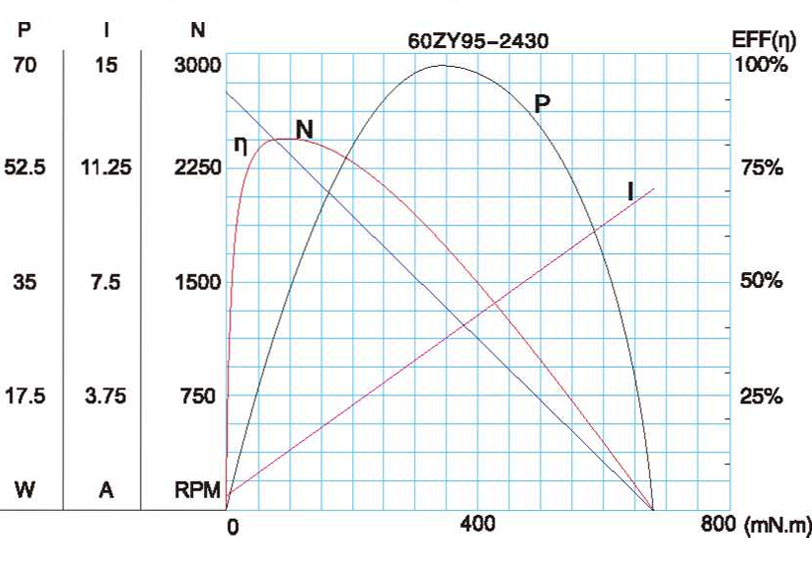

Motor Characteristic Figure

A-29

Technical parameters are subject to change without prior notice.*
