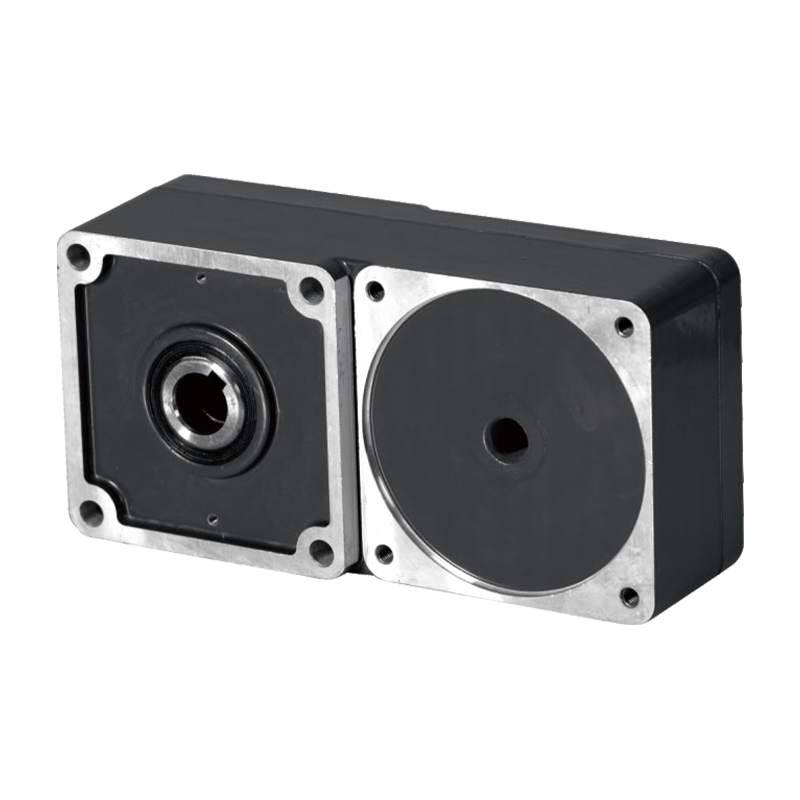

80CJB250K 80mm Durable Spur Gear Gearbox

80CJB250K 80mm Durable Spur Gear Gearbox

The 80CJB250K is a high-performance square gear reducer for a wide range of applications requiring precise torque control. With a maximum allowable torque range of 25N.m, the product offers transmission efficiency and durability.
The gear of parallel gear box can ensure the gear shape accuracy and pitch accuracy through high-precision machine tool and advanced processing technology. During installation, through accurate assembly process and adjustment, the meshing gap between the gears can be controlled in a small range, so as to achieve high-precision transmission. In some equipment requiring high transmission accuracy, such as precision machine tools, automated production lines, etc., parallel gear boxes can meet the precise motion transmission and positioning requirements.

  • 80CJB250K 80mm Durable Spur Gear Gearbox
Download Product Inquiry
PREV：80JB100K 80mm Reinforce Spur Gear Gearbox
NEXT：70JB80K 70mm Small Square Spur Gear Gearbox

+86 0579-86817938-836

[email protected]

80mm Spur Gear Gearbox 80CJB250K

80mm Spur Gearbox,

Permissible Load Range: 25N.m

Spur Gearbox

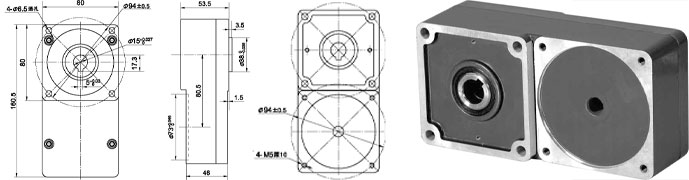

Dimensions

Parameter

Parameter

Stage 3

Transmission efficiency

73%

Rated tolerance torque

25N.m

Input and output direction

Reverse direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃ ~ +80℃

Operating ambient humidity

20% 〜85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤1500N

Max. shaft axial load

≤600N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤ 0.4mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤2000N
