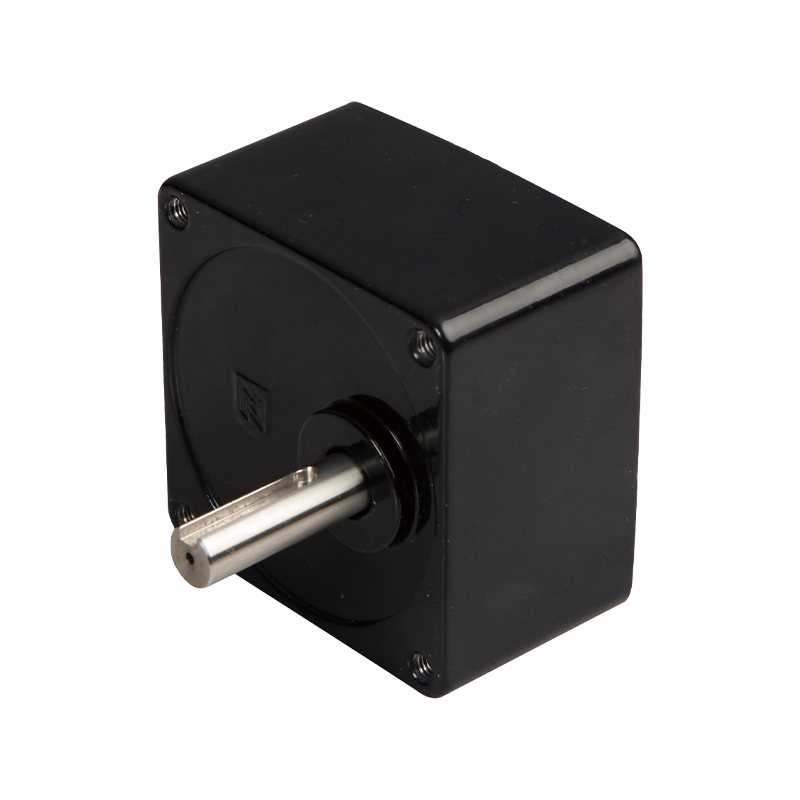

70JB80K 70mm Small Square Spur Gear Gearbox

70JB80K 70mm Small Square Spur Gear Gearbox

The 70JB80K 70mm Small Spur Gear Gearbox is a high-performance square gear reducer designed for applications requiring precise torque control. This product allows a maximum torque range of 8N.m, featuring transmission efficiency and durability. The output shaft bearing is designed with rolling bearings, capable of handling a maximum radial load of 100N and a maximum axial load of 40N, ensuring stable operation under high load conditions. The radial play and axial play are controlled within 0.08mm and 0.4mm respectively, guaranteeing accurate transmission. The backlash at no-load does not exceed 2°, further enhancing the smoothness and precision of the transmission. The input and output direction can be selected as same or reverse according to different application scenarios. The operating temperature range is from -10°C to +80°C, and the operating ambient humidity is between 20% and 85%RH, ensuring reliable operation in various environmental conditions. The recommended input speed does not exceed 3000rpm, to ensure performance and longevity.

  • 70JB80K 70mm Small Square Spur Gear Gearbox
Download Product Inquiry
PREV：80CJB250K 80mm Durable Spur Gear Gearbox
NEXT：60JB50K 60mm Parallel Shaft Spur Gear Gearbox

+86 0579-86817938-836

[email protected]

70mm Small Spur Gear Gearbox 70JB80K

70mm Spur Gearbox,

Permissible Load Range: 8N.m

Spur Gearbox

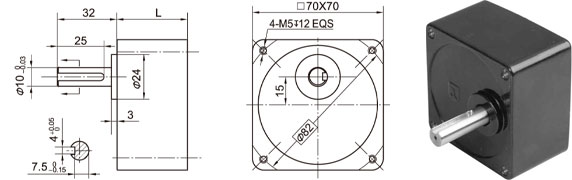

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

5 ~18

32

Stage2

20 ~ 50

42

Stage3

60 ~200
Parameter

Parameter

Stage2

Stage3

Stage4

Transmission efficiency

81%

73%

66%

Rated tolerance torque

2N.m

4N.m

8N.m

Input and output direction

Same direction

Reverse direction

Same direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤100N

Max. shaft axial load

≤40N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤0.4mm

Backlash at no-load

≤ 2°

Shaft press fit force, max

≤180N
