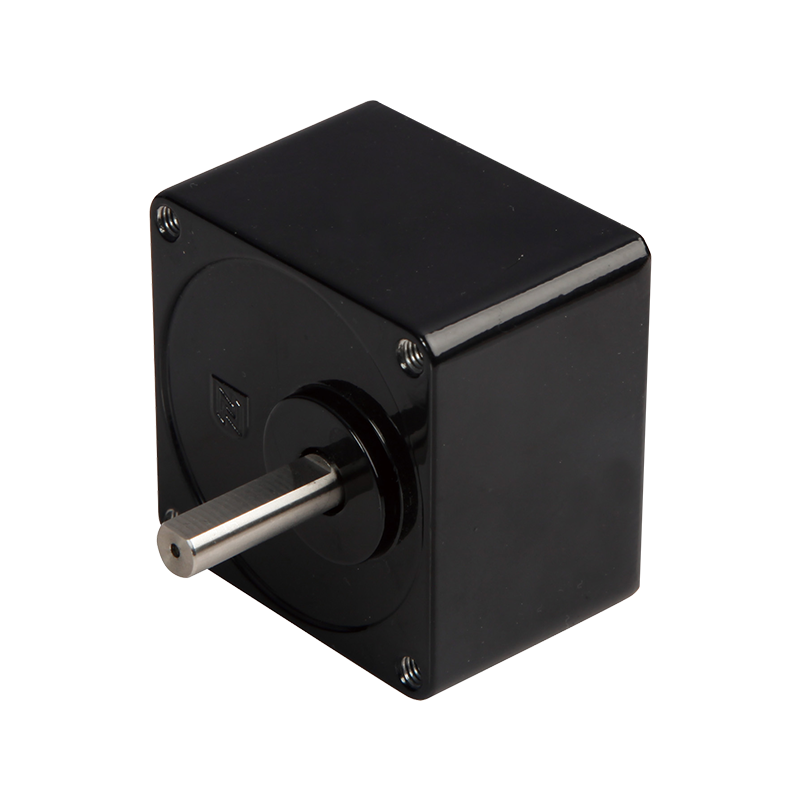

60JB50K 60mm Parallel Shaft Spur Gear Gearbox

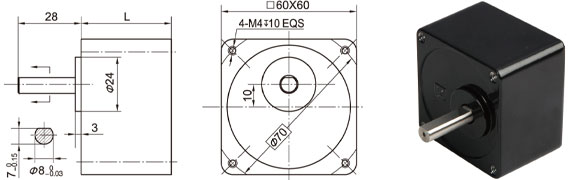

The 60mm Parallel Shaft Spur Gear Gearbox, model 60JB50K, is a high-performance mechanical transmission device. This product utilizes advanced design and manufacturing processes to ensure stability and reliability in various industrial applications. The gearbox has a maximum allowable radial load of 80 Newtons, a maximum allowable axial load of 30 Newtons, a radial clearance of less than 0.08 millimeters, an axial clearance of less than 0.4 millimeters, and a backlash of less than 2 degrees under no load. The output shaft can withstand a maximum pressing force of 150 Newtons. These parameters indicate that the gearbox possesses load-bearing capacity and precise transmission performance. Additionally, the gearbox has dimensions of 60x60 millimeters and offers multiple gear ratio options, including second, third, and fourth stages, to meet the requirements of different application scenarios. The transmission efficiency of the gearbox is 81%, 73%, and 66%, respectively, with rated tolerance torques of 1 Newton-meter, 2 Newton-meters, and 5 Newton-meters. The input and output directions can be selected as same or reverse according to needs. The operating temperature range is -10°C to +80°C, with a relative humidity usage range of 20% to 85% RH, and the recommended input speed does not exceed 3000 revolutions per minute. This gearbox is widely used in automation equipment, robots, conveyor systems, and other fields, making it an ideal choice for improving production efficiency and reducing costs.
