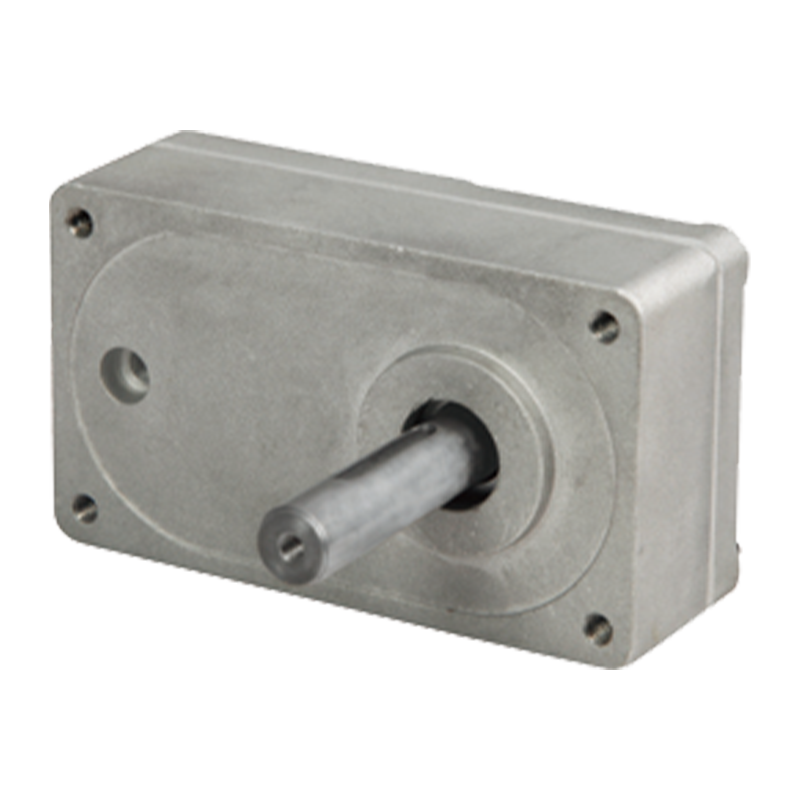

60CJB50K 60mm 25N.m Spur Gear Gearbox

60CJB50K 60mm 25N.m Spur Gear Gearbox

The 60CJB50K has an outer diameter of 60 mm and combines compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The gear transmission in the parallel gear box is based on the meshing of the straight or helical cylindrical gear, the contact line between the gears is parallel to the axis, and the relative sliding between the tooth surfaces in the transmission process is small, so the friction loss is small. High-quality parallel gearboxes use high-precision gear processing and good lubrication systems, and their transmission efficiency is generally up to 95%-98%, which can effectively transfer the input power to the output shaft and reduce energy loss.

  • 60CJB50K 60mm 25N.m Spur Gear Gearbox
Download Product Inquiry
PREV：60JB50K 60mm Parallel Shaft Spur Gear Gearbox
NEXT：42JB30K 42mm Easy Installation Spur Gear Gearbox

+86 0579-86817938-836

[email protected]

60mm Spur Gear Gearbox 60CJB50K

60mm Spur Gearbox,

Permissible Load Range: 5N. m

Spur Gearbox

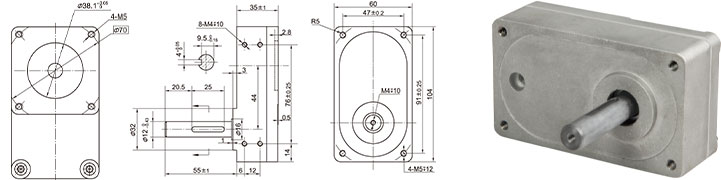

Dimensions

Parameter

Parameter

Stage2

Transmission efficiency

81%

Rated tolerance torque

5N.m

Input and output direction

Same direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃ ~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤150N

Max. shaft axial load

≤50N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤ 0.4mm

Backlash at no-load

≤ 3°

Shaft press fit force, max

≤200N

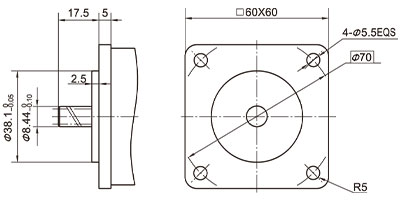

Motor matching scheme

Module

No.of teeth

Stage2

0.6

11

7.5

15
