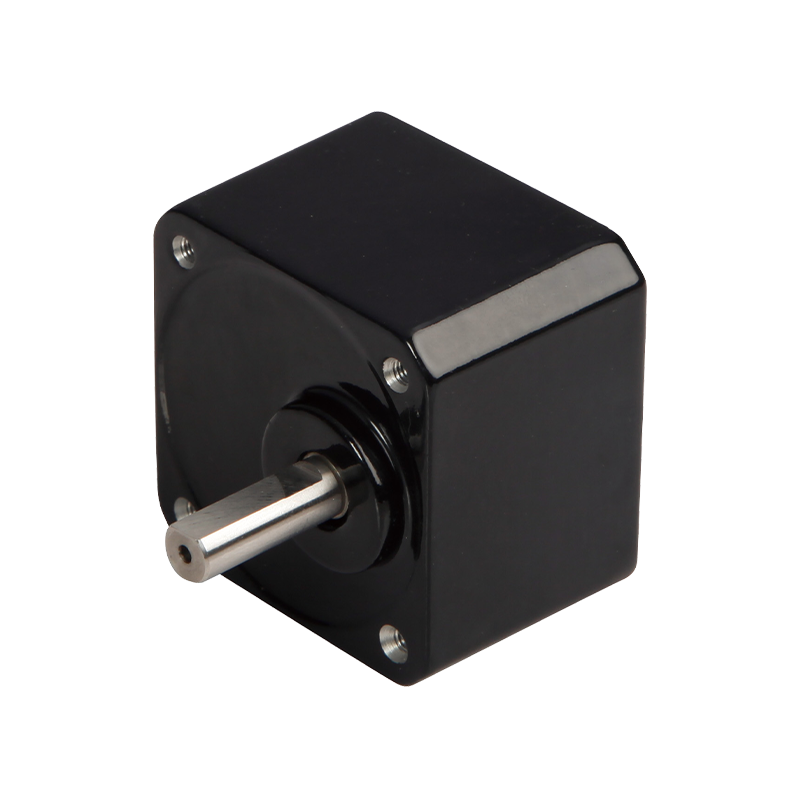

42JB30K 42mm Easy Installation Spur Gear Gearbox

42JB30K 42mm Easy Installation Spur Gear Gearbox

The 42JB30K is a high-performance square gear reducer for a variety of applications requiring precise torque control.
The parallel gear box is composed of parallel arrangement of gear shaft and gear, the structure is relatively simple, there is no complex planetary gear train or other special mechanism. This simple structure makes the design, manufacturing and assembly process relatively easy, reducing production costs and production cycles. Its shape is usually a regular cuboid, which is easy to install and fix on various equipment, and can adapt to different installation space and location requirements.

  • 42JB30K 42mm Easy Installation Spur Gear Gearbox
Download Product Inquiry
PREV：60CJB50K 60mm 25N.m Spur Gear Gearbox
NEXT：No next article

+86 0579-86817938-836

[email protected]

42mm Spur Gear Gearbox 42JB30K

42mm Spur Gearbox,

Permissible Load Range: 3N.m

Spur Gearbox

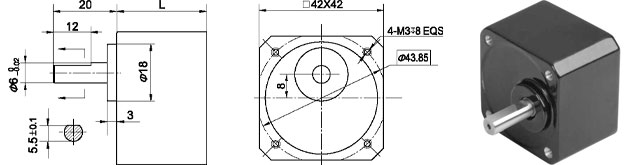

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.6 〜 10

28.5

Stage2

18 〜 20

Stage3

24 〜 45
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

81%

73%

66%

Rated tolerance torque

0.5N.m

1.5N.m

3N.m

Input and output direction

Same direction

Reverse direction

Same direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤50N

Max. shaft axial load

≤15N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤ 0.4mm

Backlash at no-load

≤ 2°

Maximum indentation force on output shaft

≤100N
