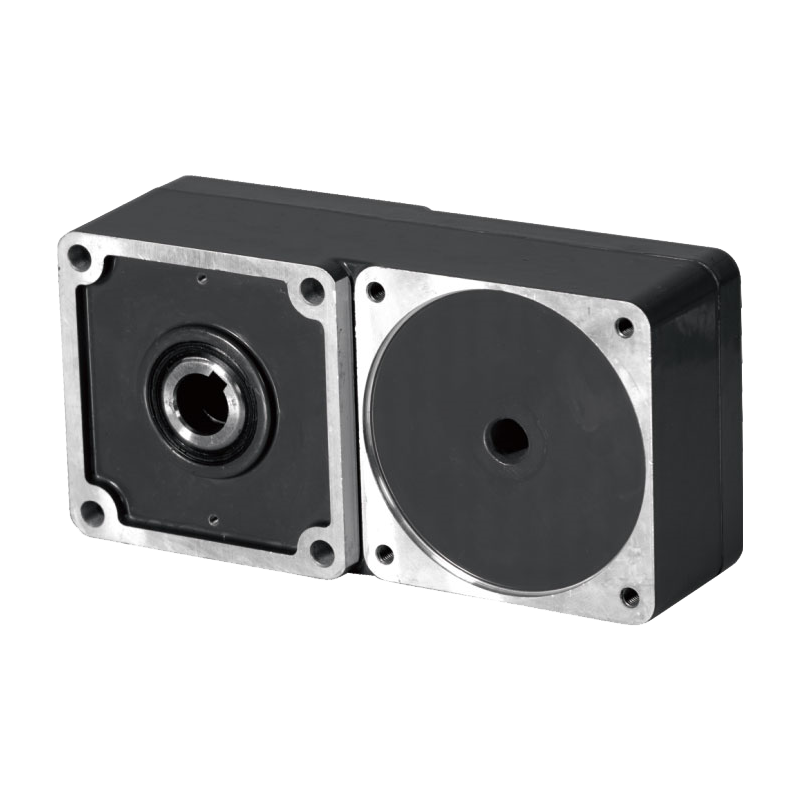

90CJB400K 90mm 12V/24V Spur Gear Gearbox

90CJB400K 90mm 12V/24V Spur Gear Gearbox

The 90CJB400K has an outer diameter of 90 mm and combines compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
By changing the tooth ratio of the meshing gears in the parallel gearbox, different transmission ratios can be achieved. From the smaller transmission ratio (such as 1:1, 2:1) to the larger transmission ratio (such as 10:1, 20:1 or even higher), can be achieved by reasonable design of the number of teeth of the gear. This wide range of transmission ratios allows parallel gearboxes to adapt to a wide range of operating conditions and equipment requirements, whether for high-speed, low-torque drives or low-speed, high-torque drives, which can be met by selecting the right transmission ratio.

  • 90CJB400K 90mm 12V/24V Spur Gear Gearbox
Download Product Inquiry
PREV：90JB200K 90mm 20N.m Spur Gear Gearbox
NEXT：80JB100K 80mm Reinforce Spur Gear Gearbox

+86 0579-86817938-836

[email protected]

90mm Spur Gear Gearbox 90CJB400K

90mm Spur Gearbox,

Permissible Load Range: 40N.m

Spur Gearbox

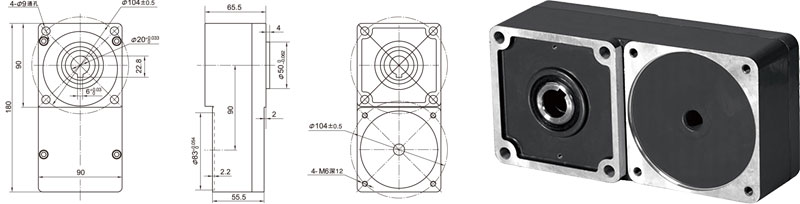

Dimensions

Parameter

Parameter

Stage3

Transmission efficiency

73%

Rated tolerance torque

40N.m

Input and output direction

Reverse direction

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃ ~ +80℃

Operating ambient humidity

20% 〜85%RH

Recommend input speed

≤3000rpm

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from the shaft end）

≤1500N

Max. shaft axial load

≤600N

Radial play of shaft （near to flange）

≤O.08mm

Axial play of shaft

≤ 0.4mm

Backlash at no-load

≤1.5°

Sha代 press fit force, max

≤2000N
