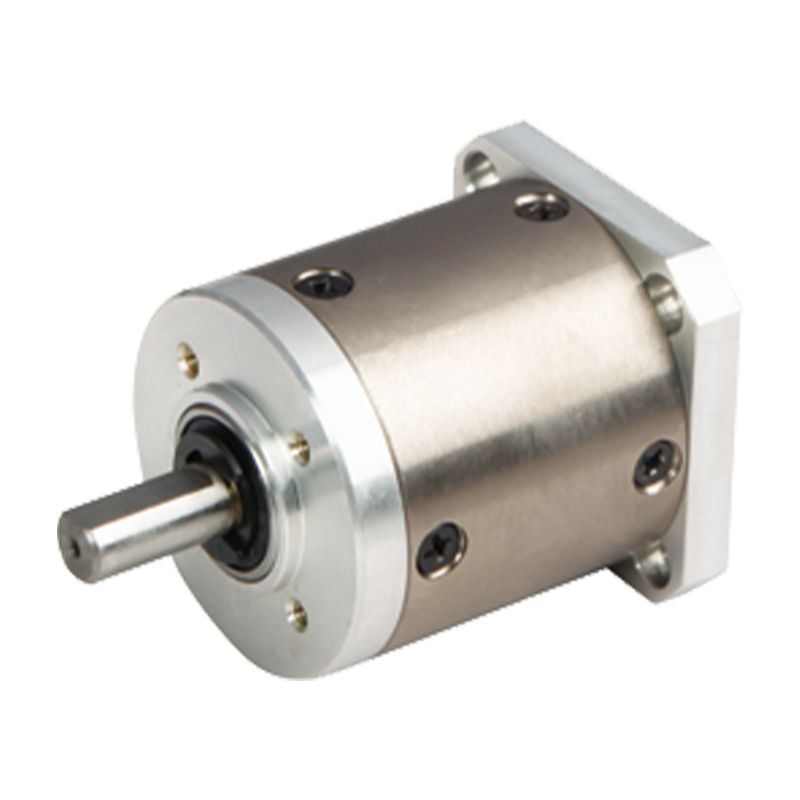

42JXK150K 42mm High Stability Miniature Planetary Small Backlash Gearbox

42JXK150K 42mm High Stability Miniature Planetary Small Backlash Gearbox

The 42JXK150K is a high performance, high precision mechanical transmission. This product uses metal shell, durable, long service life. The output shaft adopts rolling bearing design, the maximum radial load is 80N, the maximum axial load is 30N.
The low back backlash design enables a more even distribution of loads between gears, reduces local wear and fatigue wear due to back backlash, and extends the service life of gears and other transmission components. In wind power generation equipment, the maintenance cost and replacement frequency of the gearbox can be reduced. The small back clearance means that the gear system is more stable, reducing the risk of parts loosening and falling off due to excessive back clearance, improving the reliability of the entire equipment, reducing downtime and maintenance costs.

  • 42JXK150K 42mm High Stability Miniature Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：60JBK50K 60mm High Torque Output Miniature Planetary Small Backlash Gearbox
NEXT：42JXK100K 42mm Small Backlash Miniature Planetary Small Backlash Gearbox

+86 0579-86817938-836

[email protected]

42mm Miniature Planetary Gearbox 42JXK150K

42mm Small backlash Planetary Gearbox,

Permissible Load Range: 2N.m- 15N.m

Small back lash Planetary Gearbox

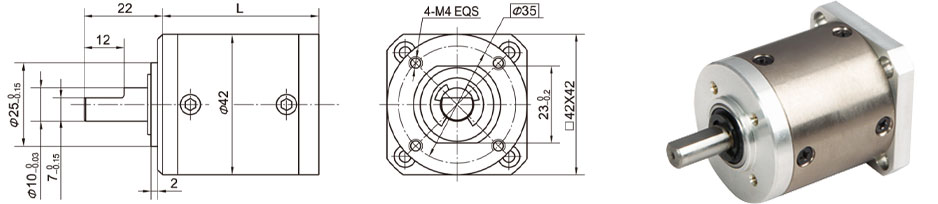

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.5~6

37

Stage2

14 ~30

43.7

Stage3

49 ~144

50.5

Stage4

172 ~504

57
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

2N.m

4N.m

8N.m

15N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤4000rpm

Input and output direction

同向 Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤0.5°

Shaft press fit force, max

≤150N
