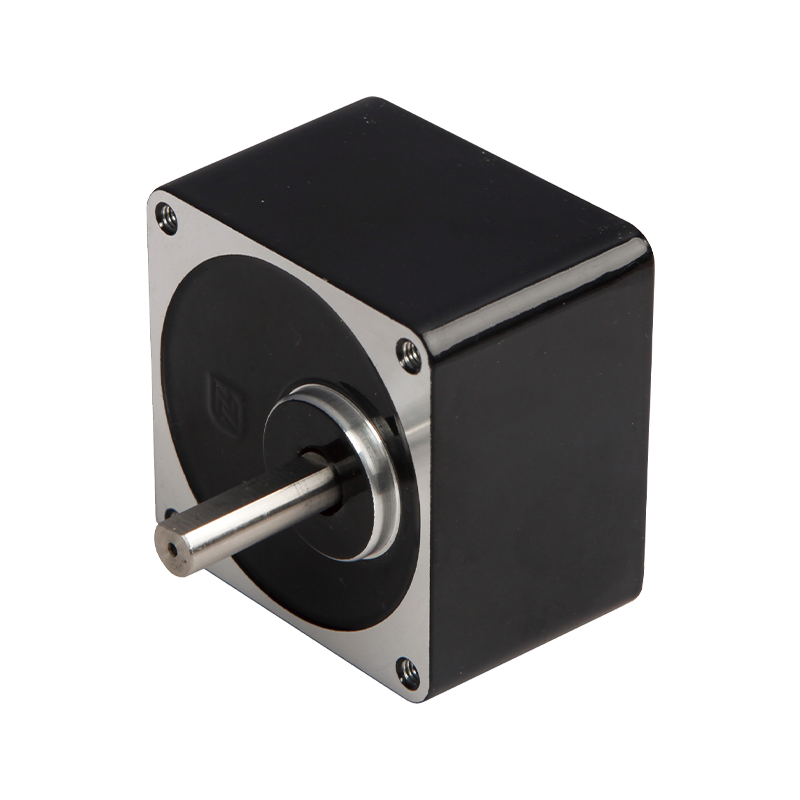

60JBK50K 60mm High Torque Output Miniature Planetary Small Backlash Gearbox

60JBK50K 60mm High Torque Output Miniature Planetary Small Backlash Gearbox

The 60JBK50K is a high performance small backlash planetary gear reducer designed for high precision applications. The gearbox features small backlash and high transmission efficiency, making it ideal for applications requiring precise control and large torque output.
In the indexing device, such as the indexing table in the machining center, the low-backlash gear box can achieve accurate indexing motion to ensure the machining accuracy of the workpiece at different stations. It can effectively reduce the transmission error caused by the back backlash, so that the movement of the output shaft follows the input shaft more accurately, and in the robot joint transmission, it can ensure the precise movement of the robot end effector according to the preset trajectory, and improve the working accuracy.

  • 60JBK50K 60mm High Torque Output Miniature Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：No previous article
NEXT：42JXK150K 42mm High Stability Miniature Planetary Small Backlash Gearbox

+86 0579-86817938-836

[email protected]

60mm Miniature Planetary Gearbox 60JBK50K

60mm Small back lash Planetary Gearbox,

Permissible Load Range: 5N.m

Small back lash Planetary Gearbox

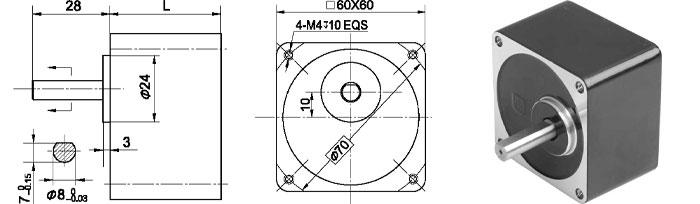

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage2

3.6 ~18

32

Stage3

20 ~ 50

40

Stage4

60 ~ 200

40
Parameter

Parameter

Stage2

Stage3

Stage4

Transmission efficiency

81%

73%

66%

Rated tolerance torque

1 N.m

2N.m

5N.m

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤3000rpm

Input and output direction

Same direction

Reverse direction

Same direction

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤50N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤0.4 mm

Backlash at no-load

≤0.5。

Shaft press fit force, max

≤150N
