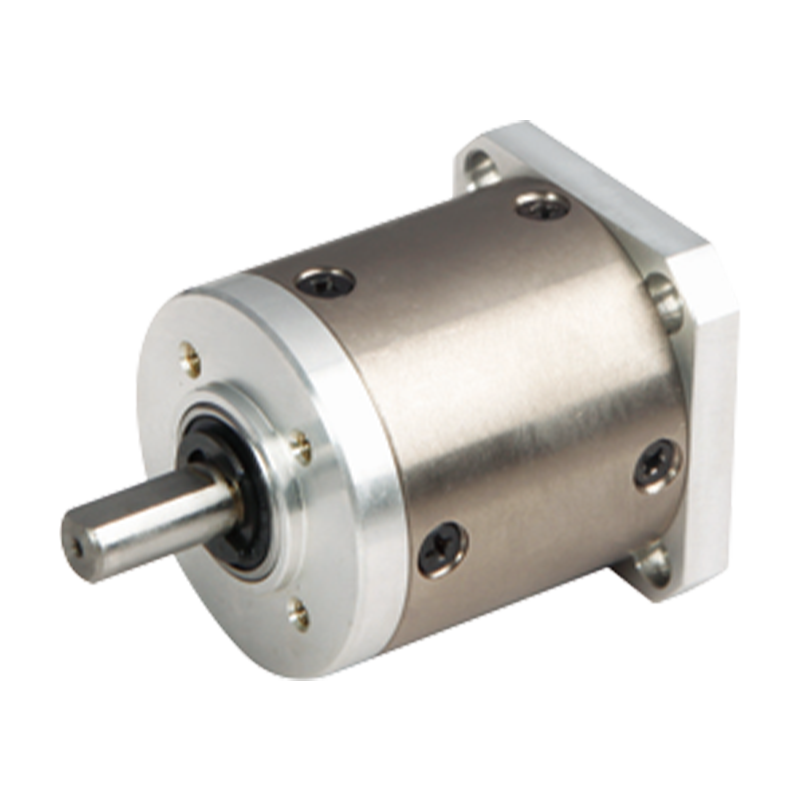

42JXK100K 42mm Small Backlash Miniature Planetary Small Backlash Gearbox

42JXK100K 42mm Small Backlash Miniature Planetary Small Backlash Gearbox

The 42JXK100K is a high-performance product designed for high-precision applications. The gearbox features small backlash and high transmission efficiency, making it ideal for applications requiring precise control and large torque output.
Due to the small back clearance, there is no obvious empty stroke during power transmission, the movement of the input shaft can be quickly transmitted to the output shaft, the system response speed is accelerated, and the production efficiency can be improved in the rapid start and stop of the automatic production line and frequent reversing operation. It can reduce the impact and vibration of gear meshing and make the transmission more stable. In the elevator drive system, it can ensure the smooth operation of the elevator and improve the ride comfort.

  • 42JXK100K 42mm Small Backlash Miniature Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：42JXK150K 42mm High Stability Miniature Planetary Small Backlash Gearbox
NEXT：42JBK30K 42mm High Precision Planetary Small Backlash Gearbox

+86 0579-86817938-836

[email protected]

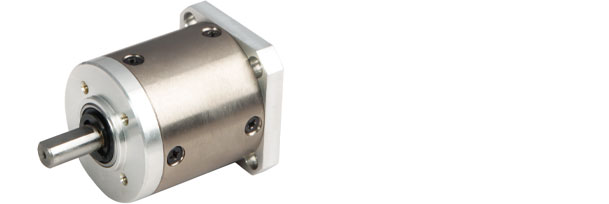

42mm Miniature Planetary Gearbox 42JXK100K

42mm Small back lash Planetary Gearbox,

Permissible Load Range: 1N.m-10N.m

Small back lash Planetary Gearbox

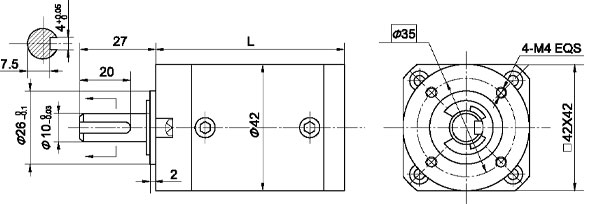

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 5.2

31.5

Stage2

14 ~ 27

42.1

Stage3

51 ~ 139

52.5

Stage4

189 ~369

62.9
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

1 N.m

4N.m

8N.m

10N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤0.5。

Shaft press fit force, max

≤150N
