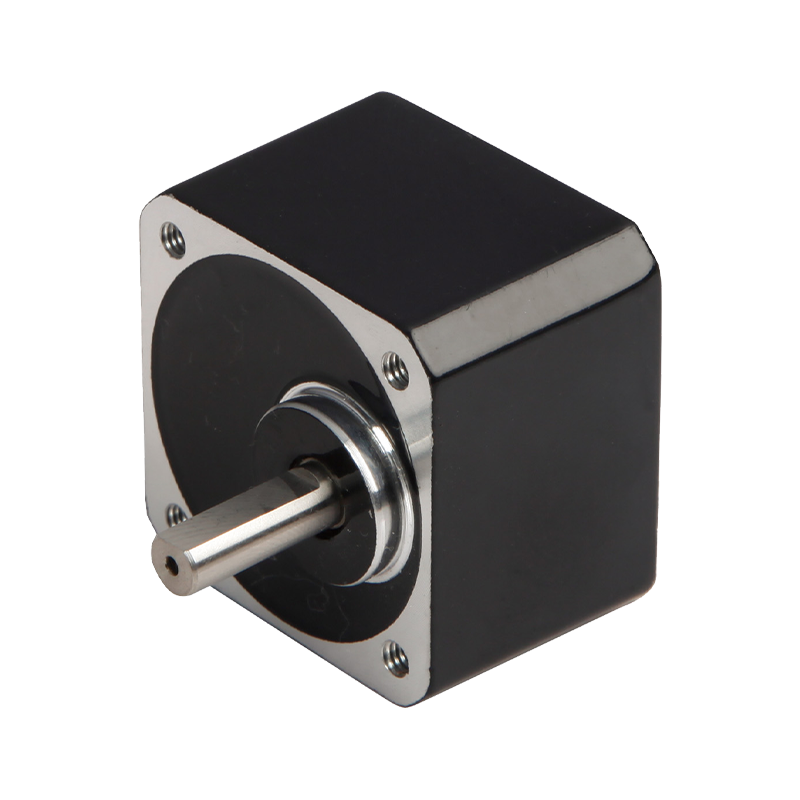

42JBK30K 42mm High Precision Planetary Small Backlash Gearbox

42JBK30K 42mm High Precision Planetary Small Backlash Gearbox

The 42JBK30K 42mm High Precision Small Backlash Planetary Gearbox is a high-performance product specifically designed for applications requiring high precision. This gearbox features small backlash and high transmission efficiency, making it ideal for scenarios that demand precise control and high torque output. With a maximum permissible radial load of 50N and a maximum shaft axial load of 15N, it ensures stable operation under various complex conditions. The radial play of the shaft is less than 0.08mm, and the axial play is less than 0.4mm, with a backlash at no-load of less than 0.5°, guaranteeing outstanding performance in high-precision requirements. Additionally, the output shaft of this gearbox uses rolling bearing ball bearings, with a maximum shaft press fit force of 100N, further enhancing its durability and reliability. The operating temperature range is from -10°C to +80°C, and the operating ambient humidity is between 20% and 85%RH, adapting to various environmental conditions. The recommended input speed does not exceed 3000rpm, ensuring efficient operation and long service life of the gearbox.

  • 42JBK30K 42mm High Precision Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：42JXK100K 42mm Small Backlash Miniature Planetary Small Backlash Gearbox
NEXT：36JXK30K 36mm low Error Margin Miniature Planetary Small Backlash Gearbox

+86 0579-86817938-836

[email protected]

42mm High Precision Planetary Gearbox 42JBK30K

42mm Small back lash Planetary Gearbox,

Permissible Load Range: 3N.m

Small back lash Planetary Gearbox

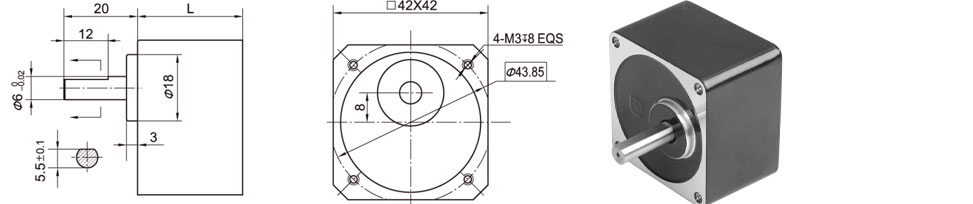

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage2

3.6 ~ 10

28.5

Stage3

18 ~ 20

Stage4

24 ~ 45
Parameter

Parameter

Stage2

Stage3

Stage4

Transmission efficiency

81%

73%

66%

Rated tolerance torque

0.5N.m

1.5N.m

3N.m

Max momentary tolerance torque

Two times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤3000rpm

Input and output direction

Same direction

Reverse direction

Same direction

Technical Data

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤50N

Max. shaft axial load

≤15N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤0.4 mm

Backlash at no-load

≤0.5°

Shaft press fit force, max

≤100N
