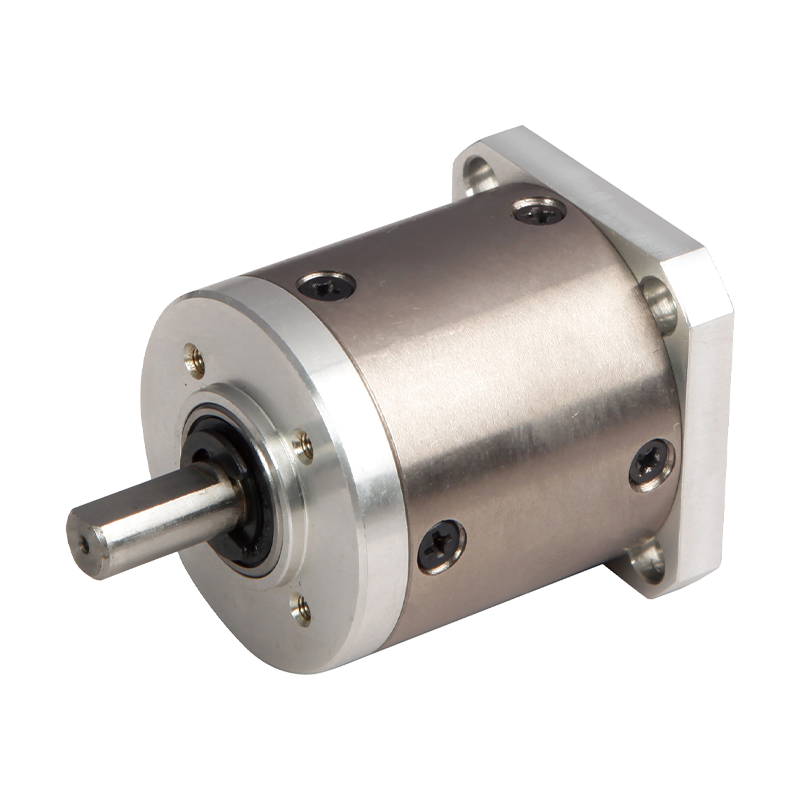

36JXK30K 36mm low Error Margin Miniature Planetary Small Backlash Gearbox

36JXK30K 36mm low Error Margin Miniature Planetary Small Backlash Gearbox

The 36JXK30K is a high performance, high precision mechanical transmission. This product uses metal shell, durable, long service life. The output shaft adopts rolling bearing design, the maximum radial load is 50N, the maximum axial load is 30N.
By optimizing the design and manufacturing process, the gap between the gears is controlled within a very small range, which can achieve accurate Angle and position positioning. In precision machine tool processing, it can ensure that the tool accurately reaches the specified position and machined high-precision parts. In equipment requiring frequent forward and reverse rotation, such as the feed mechanism of a printing press, the low-backlash gearbox effectively avoids the accumulation of errors caused by the back backlash and ensures the accuracy of each forward and reverse rotation.

  • 36JXK30K 36mm low Error Margin Miniature Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：42JBK30K 42mm High Precision Planetary Small Backlash Gearbox
NEXT：28JXK30K 28mm Miniature Planetary Small Backlash Gearbox

+86 0579-86817938-836

[email protected]

36mm Miniature Planetary Gearbox 36JXK30K

36mm Small back lash Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

Small back lash Planetary Gearbox

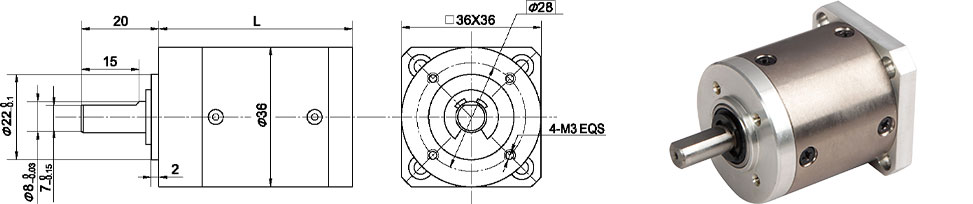

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 5.2

27

Stage2

14 ~ 27

34.2

Stage3

51 〜139

41.1
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

0.3N.m

1.2N.m

3.0N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤50N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.07mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤0.5°

Shaft press fit force, max

≤120N
