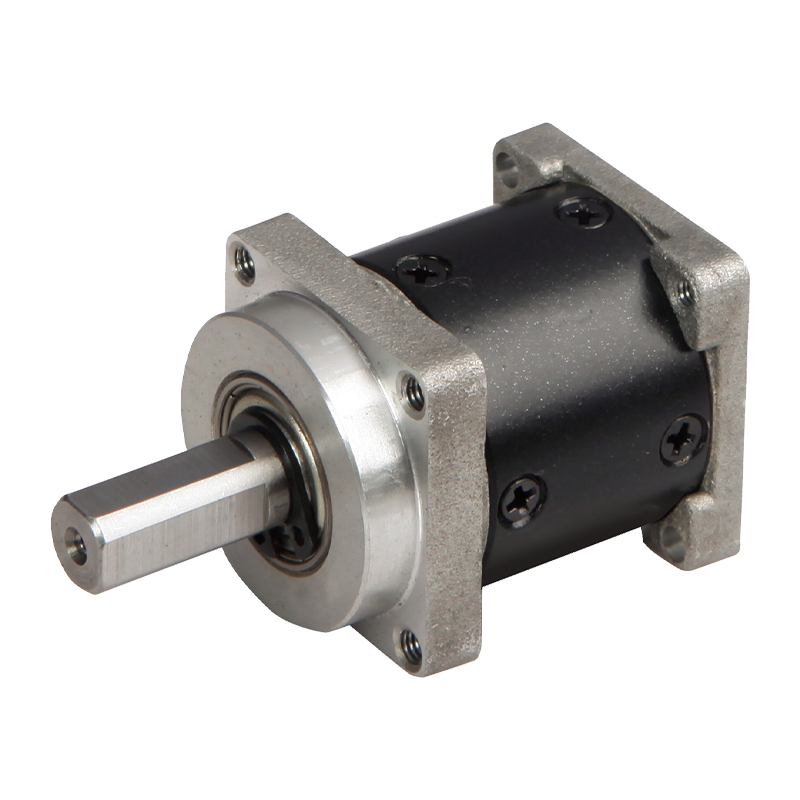

28JXK30K 28mm Miniature Planetary Small Backlash Gearbox

28JXK30K 28mm Miniature Planetary Small Backlash Gearbox

The 28JXK30K 28mm Miniature Small Backlash Planetary Gearbox is a high-performance, high-precision mechanical transmission device. This product features a metal housing, ensuring its robustness and long service life. The output shaft is designed with rolling bearings, allowing a maximum radial load of 35N and a maximum axial load of 25N. The radial play and axial play are controlled within 0.07mm and 0.3mm respectively, guaranteeing smooth and accurate operation. The backlash at no-load does not exceed 0.50mm, further enhancing the stability of the transmission. The gearbox supports various gear ratio parameters, including stage one 3.75.2, stage two 14 27, and stage three 51139, catering to different application requirements. With a transmission efficiency as high as 90%, the rated tolerance torque is 0.3N.m, and the max momentary tolerance torque is three times the rated torque. The operating temperature range is from -10°C to +80°C, with an operating ambient humidity of 20% 85%RH. The recommended input speed does not exceed 4000rpm, and the input and output directions are the same.

  • 28JXK30K 28mm Miniature Planetary Small Backlash Gearbox
Download Product Inquiry
PREV：36JXK30K 36mm low Error Margin Miniature Planetary Small Backlash Gearbox
NEXT：No next article

+86 0579-86817938-836

[email protected]

28mm Miniature Planetary Gearbox 28JXK30K

28mm Small backlash Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

Small back lash Planetary Gearbox

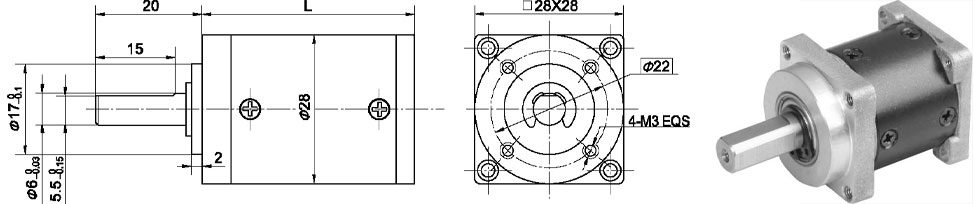

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 5.2

31

Stage2

14 ~ 27

40.1

Stage3

51 ~139

49
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

0.3N.m

1.2N.m

3.0N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤35N

Max. shaft axial load

≤25N

Radial play of shaft （near to flange）

≤0.07mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤.50

Shaft press fit force, max

≤100N
