72JX850K 72mm 15-85N.m Planetary Gearbox

72JX850K 72mm 15-85N.m Planetary Gearbox

The 72JX850K features a metal planetary gear construction with an outer diameter of 72 mm for both compact and high torque output. The allowable torque ranges from 15N.m to 85N.m, and supports dual voltages of 12V/24V to adapt to different energy efficiency scenarios.
The transmission ratio of the single-stage planetary gearbox is generally between 3-10, and when the multistage planetary gearbox is used in series, the transmission ratio can reach dozens or even hundreds, which can meet the requirements of different equipment for the transmission ratio. Compared to conventional parallel-shaft gearboxes, planetary gearboxes can be 30% to 50% smaller in volume and lighter in weight than conventional parallel-shaft gearboxes with the same transmission ratio and load capacity, making them easy to install and deploy in space-constrained equipment.

  • 72JX850K 72mm 15-85N.m Planetary Gearbox
Download Product Inquiry
PREV：82JX1200K 82mm 20-120N.m Planetary Gearbox
NEXT：56JX300K 56mm 3-30N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

72mm Planetary Gearbox 72JX850K

72mm Planetary Gearbox,

Permissible Load Range: 15N.m〜85N.m

Planetary Gearbox

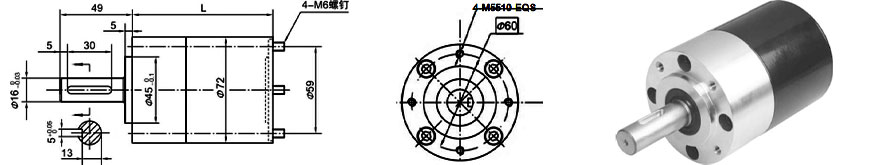

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 6.75

56

Stage2

14 ~46

75.5

Stage3

51 ~ 308

95.5
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

15N.m

45N.m

85N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% 〜85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤320N

Max. shaft axial load

≤160N

Radial play of shaft （near to flange）

≤0.08mm

Axial play of shaft

≤0.4mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤400N
