82JX1200K 82mm 20-120N.m Planetary Gearbox

82JX1200K 82mm 20-120N.m Planetary Gearbox

The 82JX1200K is a high-performance product designed for high precision and low noise applications. Allowable torque ranges from 20N.m to 120N.m, suitable for a variety of industrial automation equipment and precision machinery.
Compared to conventional parallel-shaft gearboxes, planetary gearboxes can be 30% to 50% smaller in volume and lighter in weight than conventional parallel-shaft gearboxes with the same transmission ratio and load capacity, making them easy to install and deploy in space-constrained equipment.

  • 82JX1200K 82mm 20-120N.m Planetary Gearbox
Download Product Inquiry
PREV：No previous article
NEXT：72JX850K 72mm 15-85N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

82mm Planetary Gearbox 82JX1200K

82mm Planetary Gearbox,

Permissible Load Range: 20N.m〜120N.m

Planetary Gearbox

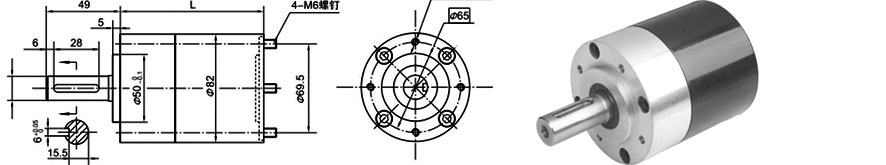

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 7

66

Stage2

14 ~ 48

90

Stage3

50 ~ 329

115
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

20N.m

60N.m

120N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% 〜85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（20mm from flange）

≤400N

Max. shaft axial load

≤200N

Radial play of shaft （near the flange）

≤0.08mm

Axial play of shaft

≤0.4mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤500N
