56JX300K 56mm 3-30N.m Planetary Gearbox

56JX300K 56mm 3-30N.m Planetary Gearbox

The 56JX300K is a high-performance product designed for high precision and low noise applications. The allowable torque range from 3N.m to 30N.m is suitable for various industrial automation equipment and precision machinery.
The planetary gearbox can not only achieve deceleration transmission, but also achieve a variety of transmission forms such as acceleration transmission and differential transmission by changing the combination of gears. For example, in the rear axle transmission of the car, the planetary gearbox can achieve the differential movement of the left and right wheels, ensuring that the vehicle can run smoothly when turning. The structure of the planetary gearbox is relatively simple, easy to disassemble and assemble, and easy to carry out daily inspection, maintenance and maintenance work. At the same time, due to its high reliability, the wear of parts is relatively small, the replacement cycle is long, reducing maintenance costs and downtime, and improving the efficiency of the use of equipment.

  • 56JX300K 56mm 3-30N.m Planetary Gearbox
Download Product Inquiry
PREV：72JX850K 72mm 15-85N.m Planetary Gearbox
NEXT：52JXM200K 52mm 2-20N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

56mm Planetary Gearbox 56JX300K

56mm Planetary Gearbox,

Permissible Load Range: 3N.m〜30N.m

Planetary Gearbox

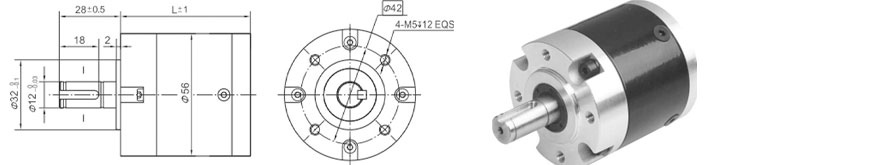

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension (mm)

Axle teeth, starting structure

Combined starting structure

Stage1

3.6 ~7.5

47

62

Stage2

13 ~32

59

72

Stage3

47 ~ 135

78

91

Stage4

168 ~ 575

90

103
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

3N.m

12N.m

20N.m

30N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃ ~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（12mm from flange）

≤200N

Max. shaft axial load

≤100N

Radial play of shaft （near to flange）

≤0.04mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤300N
