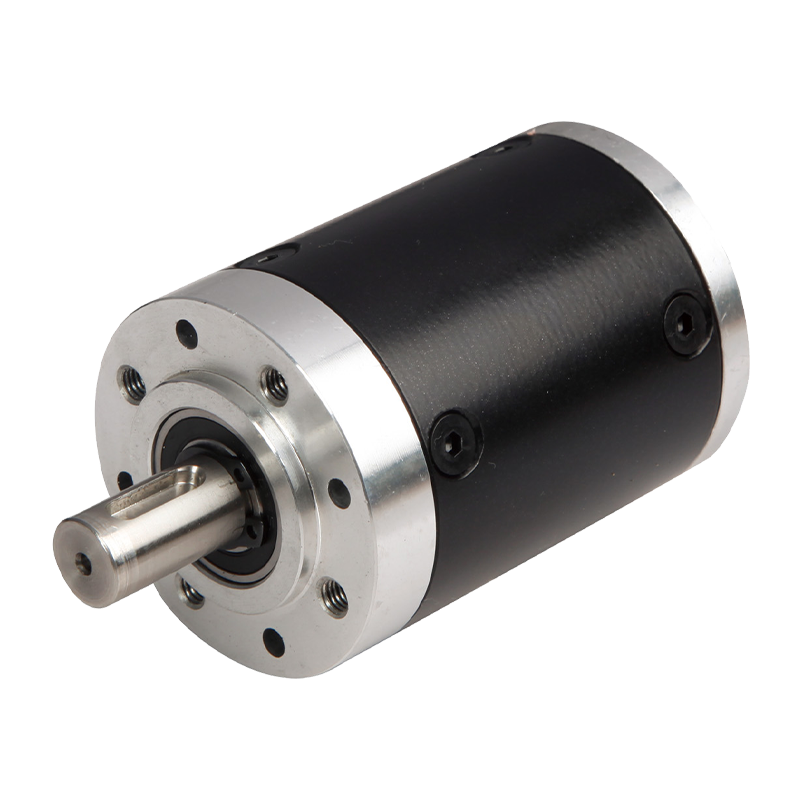

52JXM200K 52mm 2-20N.m Planetary Gearbox

52JXM200K 52mm 2-20N.m Planetary Gearbox

The 52JXM200K is a planetary deceleration power unit with an outer diameter of 52 mm and a first-stage transmission efficiency of 90%, suitable for dual voltage environments of 12v/24v.
The planetary gear train structure of the planetary gear box makes the radial force and axial force generated during the meshing process balance each other, reducing vibration and noise. In addition, high-precision gear processing and assembly processes, as well as reasonable gear parameter design, also help to reduce the impact and noise of gear meshing, and the noise during operation can usually be controlled below 40-60 dB. The structure of the planetary gearbox is simple and compact, and the number of parts is relatively small, which reduces the possibility of system failure due to parts failure. At the same time, the key components such as gears have undergone strict quality control and performance testing, with high reliability and stability, and can maintain a good working condition under long-term continuous operation, and the average trouble-free operation time can reach more than 20,000 hours.

  • 52JXM200K 52mm 2-20N.m Planetary Gearbox
Download Product Inquiry
PREV：56JX300K 56mm 3-30N.m Planetary Gearbox
NEXT：42JX150K 42mm 2-15N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

52mm Planetary Gearbox 52JXM200K

52mm Planetary Gearbox,

Permissible Load Range: 2N.m〜20N.m

Planetary Gearbox

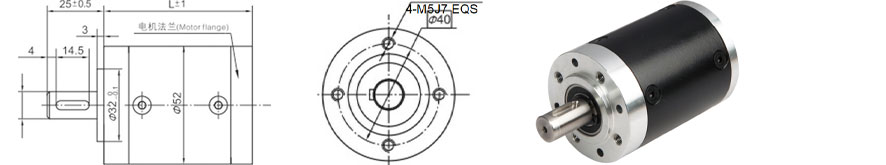

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension (mm)

Axle teeth, starting structure

Combined starting structure

Stage1

4.5 ~ 8

56

65

Stage2

20 ~ 64

71

80

Stage3

91 ~ 512

87

96
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

4N.m

12N.m

20N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~ 85% RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（12mm from flange）

≤200N

Max. shaft axial load

≤100N

Radial play of shaft （near to flange）

≤0.04mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1°

Shaft press fit force, max

≤300N
