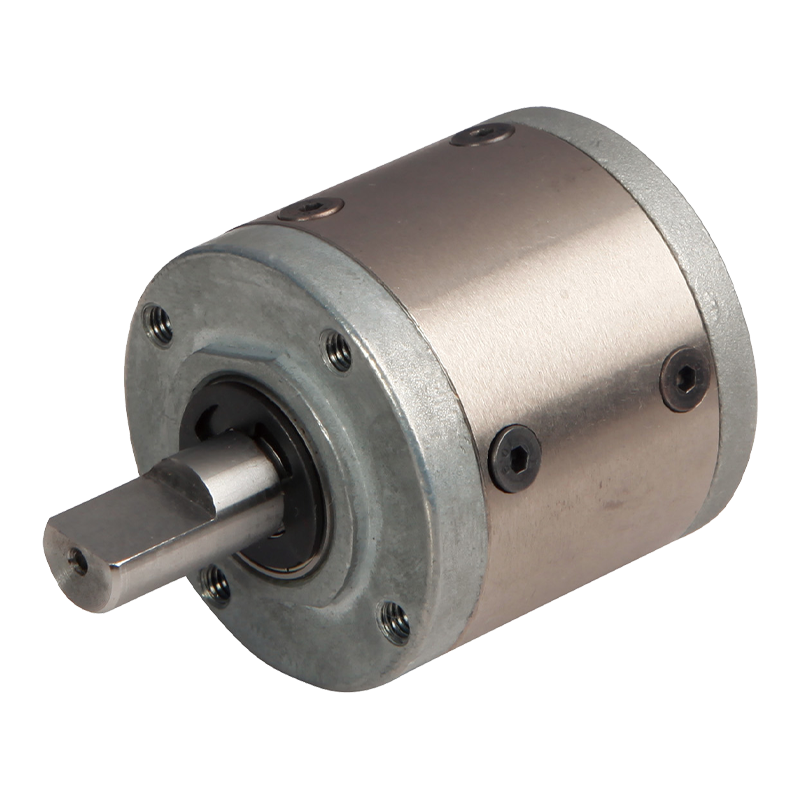

42JX150K 42mm 2-15N.m Planetary Gearbox

42JX150K 42mm 2-15N.m Planetary Gearbox

42JX150K is a high-performance planetary reducer with an outer diameter of 423 mm, allowing a torque range of 2N.m ~ 15N.m, and an operating temperature of -10℃~ +80℃.
The planetary gear train structure of the planetary gear box enables multiple gears to mesh with each other in a limited space to achieve power transmission and deceleration and torque increase. Compared with traditional parallel shaft gearboxes, with the same transmission ratio and load capacity, the volume of the planetary gearbox can be reduced by 30% to 50%, and the weight is also lighter, which is easy to install and arrange in space-limited equipment. Multiple planetary wheels share the load, making the force on each gear relatively small. At the same time, the gear is usually made of high-strength alloy steel, after quenching, grinding and other processes, the tooth surface hardness is high, good wear resistance, can withstand large torque and impact loads, suitable for heavy-duty transmission occasions.

  • 42JX150K 42mm 2-15N.m Planetary Gearbox
Download Product Inquiry
PREV：52JXM200K 52mm 2-20N.m Planetary Gearbox
NEXT：42JX100K 42mm 1-10N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

42mm Planetary Gearbox 42JX150K

Φ42 planetary reducer

Allowable torque range: 2N.m~15N.m

Planetary Gearbox

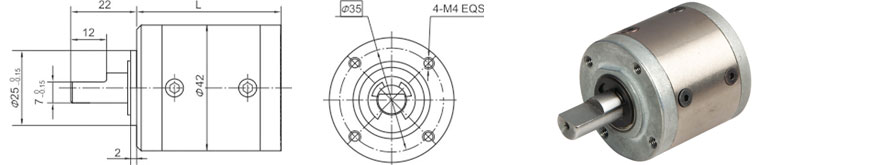

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.5~6.0

32.5

Stage2

14~30

39.2

Stage3

49~144

46

Stage4

172~504

52.5
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

2N.m

4N.m

8N.m

15N.m

Max momentary tolerance torque

Three times the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（12mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06mm

Axial play of shaft

≤ 0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤150N
