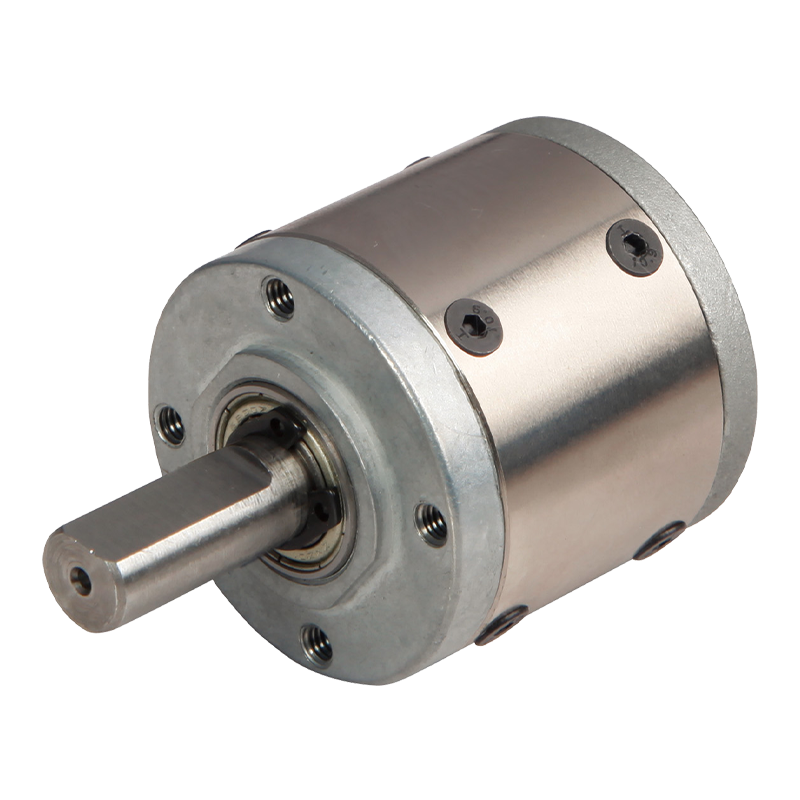

42JX100K 42mm 1-10N.m Planetary Gearbox

42JX100K 42mm 1-10N.m Planetary Gearbox

42JX100K Planetary Gearbox is a high-performance 42mm planetary gearbox designed for various applications requiring precise torque control. The maximum permissible load range of this gearbox is from 1N.m to 10N.m, catering to different load requirements. Its internal gear material consists of E-type metal and F-type metal powder, ensuring high precision and durability. The output shaft bearings use rolling bearings and ball bearings, with a maximum allowable radial load of 80N and a maximum allowable axial load of 30N. The radial play and axial play are controlled within 0.06mm and 0.3mm respectively, guaranteeing smooth operation and accuracy. Additionally, the transmission efficiency of this gearbox reaches up to 90%, with a rated tolerance torque of 1N.m and an instantaneous tolerance torque of three times the rated torque. The operating temperature range is from -10℃ to +80℃, with a relative humidity usage range of 20% to 85%RH. The recommended input speed is ≤4000rpm, and the input and output direction is the same. These parameters make the 42JX100K Planetary Gearbox widely applicable in industrial automation, machinery equipment, and other fields.

  • 42JX100K 42mm 1-10N.m Planetary Gearbox
Download Product Inquiry
PREV：42JX150K 42mm 2-15N.m Planetary Gearbox
NEXT：36JX30K 36mm 0.3-3N.m Planetary Gearbox

+86 0579-86817938-836

[email protected]

42mm DC Motor Planetary Gearbox 42JX100K

42mm Planetary Gearbox,

Permissible Load Range: 1 N.m〜10N.m

Planetary Gearbox

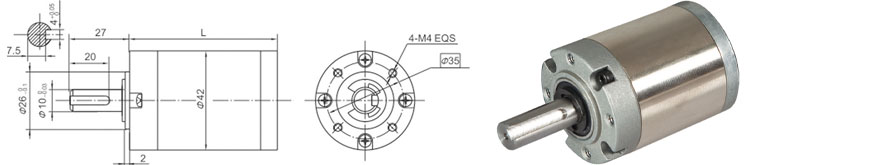

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 5.2

31.5

Stage2

14 ~ 27

42.1

Stage3

51 ~ 139

52.5

Stage4

189 ~ 720

62.9
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

1 N.m

4N.m

8N.m

10N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

E type: Metal F type: Powder metal

Bearing at output

Ballbearings

Max. Radial load（12mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤150N
