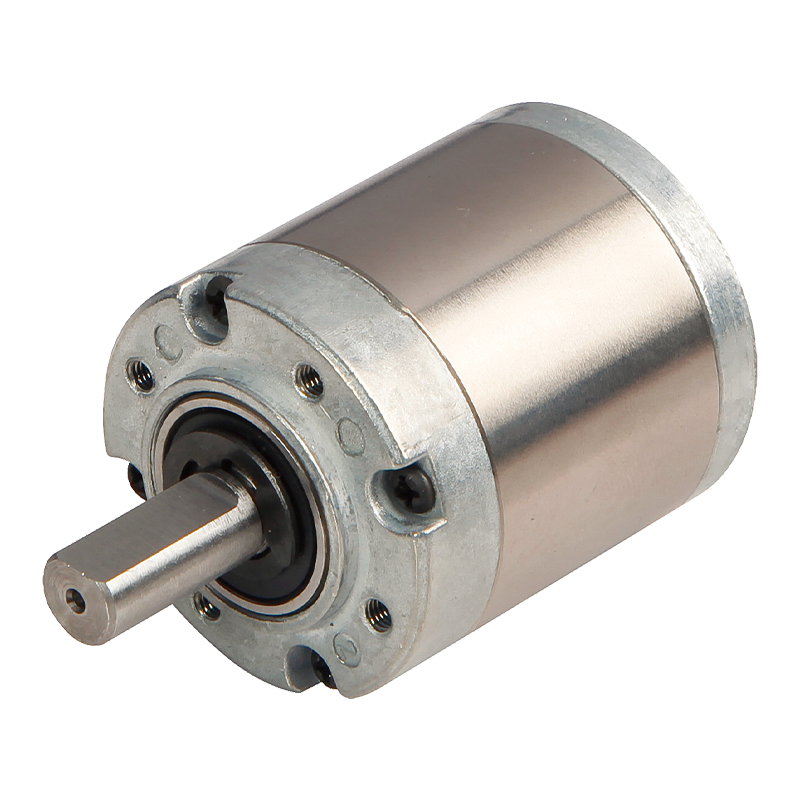

36JX30K 36mm 0.3-3N.m Planetary Gearbox

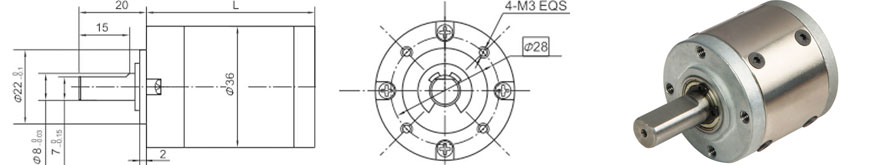

36JX30K 36mm Planetary Gearbox is a high-performance 36mm planetary gearbox designed for various applications requiring precise torque control. The gearbox allows a permissible load range of 0.3N.m to 3.0N.m, offering transmission efficiency and durability. Its internal gear material is made of metal powder metallurgy, while the housing uses metal F-type material, ensuring the product's robustness and reliability. The output shaft bearing employs rolling bearings, with a maximum allowable radial load of 50N and a maximum allowable axial load of 30N. The radial play and axial play are controlled within 0.07mm and 0.3mm respectively, guaranteeing smooth operation and precision. Additionally, the backlash at no-load does not exceed 1.5°, and the maximum shaft press fit force is 120N, further enhancing stability and safety. The gearbox features gear ratio parameters including stage one, two, three, and four, corresponding to different L dimensions and transmission efficiencies, meeting the needs of various application scenarios. The operating temperature range is from -10°C to +80°C, with a relative humidity of 20% to 85%RH. The recommended input speed does not exceed 4000rpm, and the input and output direction are the same.
