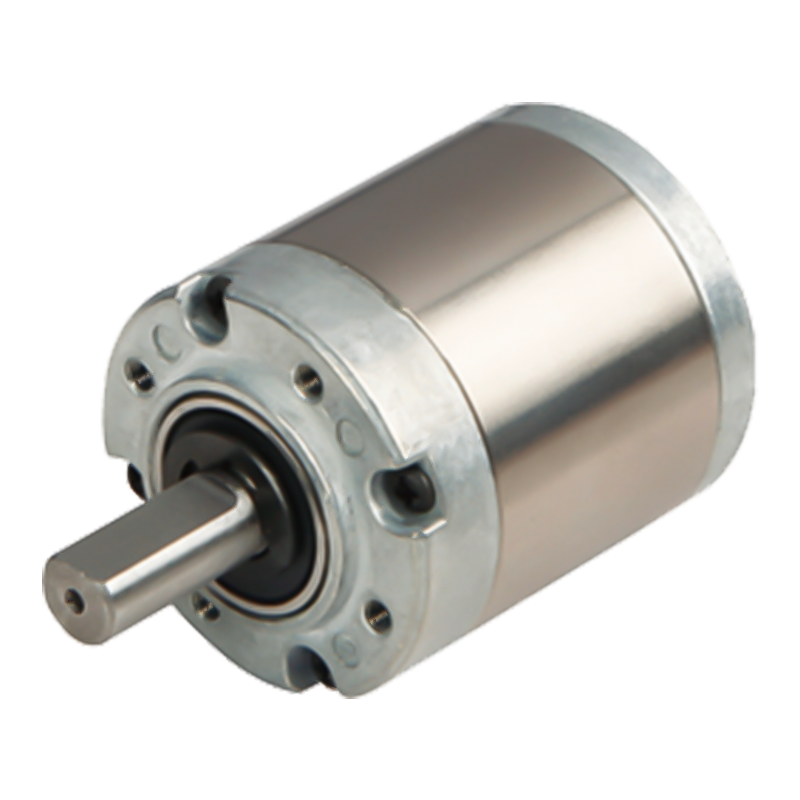

32JX30K 32mm 0.3-3N.m Planetary Gearbox

32JX30K 32mm 0.3-3N.m Planetary Gearbox

32JX30K is a planetary reducer with an outer diameter of 32 mm, allowing a torque range of 0.3N.m ~ 3.0N.m, a first-stage transmission efficiency of 90%, and an operating temperature of -10℃~ +80℃.
The planetary gear box is driven by the inner meshing planetary gear train, and the meshing friction loss between the gears is small. At the same time, the planetary wheel is evenly distributed around the sun wheel, and the load is evenly distributed, so that the carrying capacity of the gear is fully utilized, and the transmission efficiency is usually up to 90%-97%. By changing the combination of the number of teeth of the sun wheel, the planet wheel and the gear ring, a variety of different transmission ratios can be achieved. The transmission ratio of the single-stage planetary gearbox is generally between 3-10, and when the multistage planetary gearbox is used in series, the transmission ratio can reach dozens or even hundreds, which can meet the requirements of different equipment for the transmission ratio.

  • 32JX30K 32mm 0.3-3N.m Planetary Gearbox
Download Product Inquiry
PREV：36JX30K 36mm 0.3-3N.m Planetary Gearbox
NEXT：No next article

+86 0579-86817938-836

[email protected]

32mm Planetary Gearbox 32JX30K

32mm Planetary Gearbox,

Permissible Load Range: 0.3N.m〜3.0N.m

Planetary Gearbox

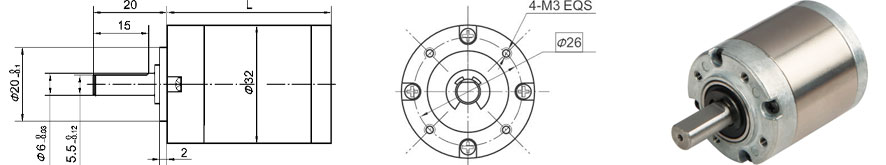

Dimensions

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7 ~ 5.2

25.7

Stage2

14 ~ 27

32.8

Stage3

51 ~ 139

39.7

Stage4

189 ~720

46.6
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

0.3N.m

1.2N.m

2.5N.m

3.0N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% ~ 85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤35N

Max. shaft axial load

≤25N

Radial play of shaft （near to flange）

≤0.07mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤100N
