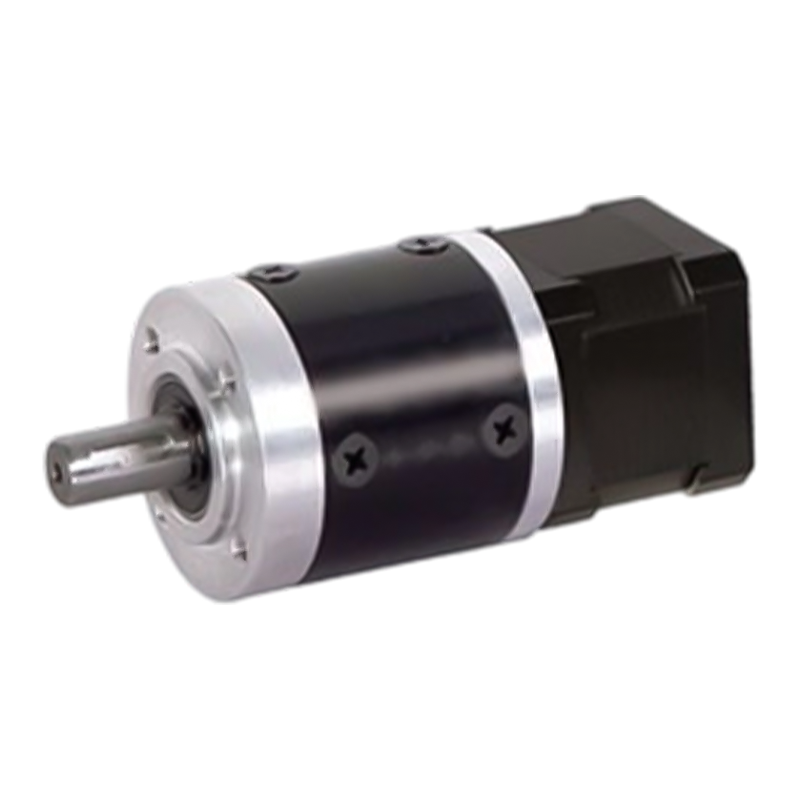

52JXM200K/42STH Low Energy Loss Planetary Gear Stepping Motor

52JXM200K/42STH Low Energy Loss Planetary Gear Stepping Motor

Product 52JXM200K/42STH is a high performance hybrid walking star gear motor with a maximum allowable radial load ≤80N.
Multi-gear synchromesh reduces energy loss and achieves better energy efficiency when paired with a stepper motor, especially for long running industrial scenarios. Using high-strength materials and precision machining of the planetary reducer, with impact resistance and long life, even in the dust, vibration and other harsh environment can be stable operation. Its multi-tooth uniform load design distributes instantaneous impact loads and reduces component wear.

  • 52JXM200K/42STH Low Energy Loss Planetary Gear Stepping Motor
Download Product Inquiry
PREV：56JXS300K/57STH High Precision Hybrid Planetary Gear Stepper Motor
NEXT：42JXGTS200K/42STH 42mm 6N.m~20N.m Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

52JXM200K/42STH

42mm Planetary Gearbox

Permissible Load Range: 6N.m~20N.m

Planetary Gear Stepping Motor (Ring Gear Material: Metal）

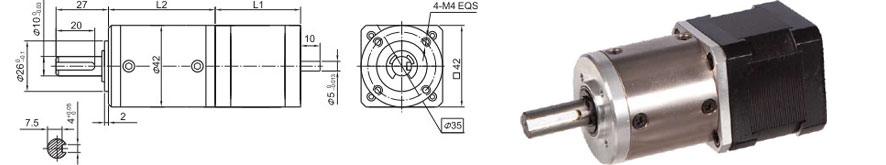

Dimensions

Planetary Gearbox

Ring material

Metal

Bearing at output

Ball bearings

Max. Radial load （12mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06 mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Technical Data

42STH Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

42STH38-1684A

2.8

1.68

1.65

3.2

3.6

4

54

0.28

40

≤ 1:247

42STH47-1684A

2.8

1.68

1.65

2.8

4.4

4

68

0.35

48

≤1:106

A Single Shaft, B Double shaft

40JXGTS200K Planetary Gearbox Specifications

Reduction ratio

4.44

17

22

65

83

106

247

316

403

515

Number of gear trains

1

2

3

4

Length(L2) mm

38.2

49.7

60

70.3

Max. rated torque kg. cm

60

100

160

200

Short time permissible torque kg.cm

180

300

480

600

Efficiency %

0.9

0.81

0.73

0.66

Weight g

350

450

550

650

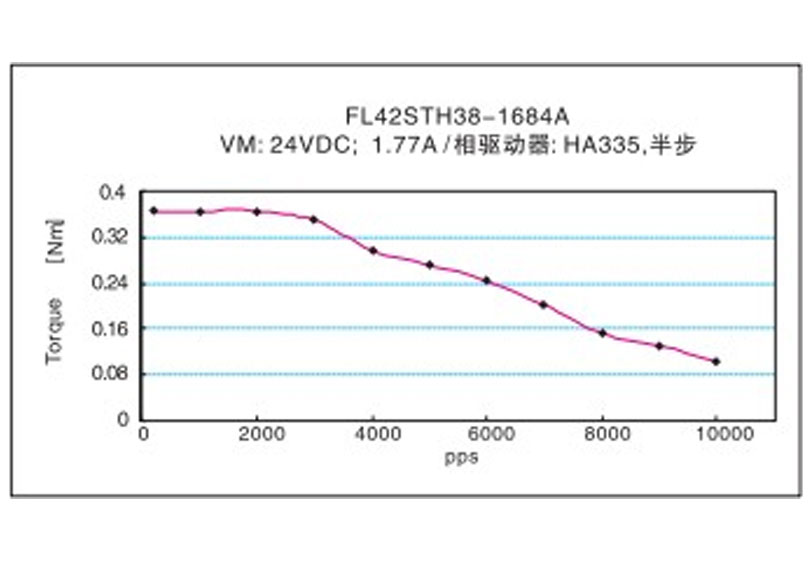

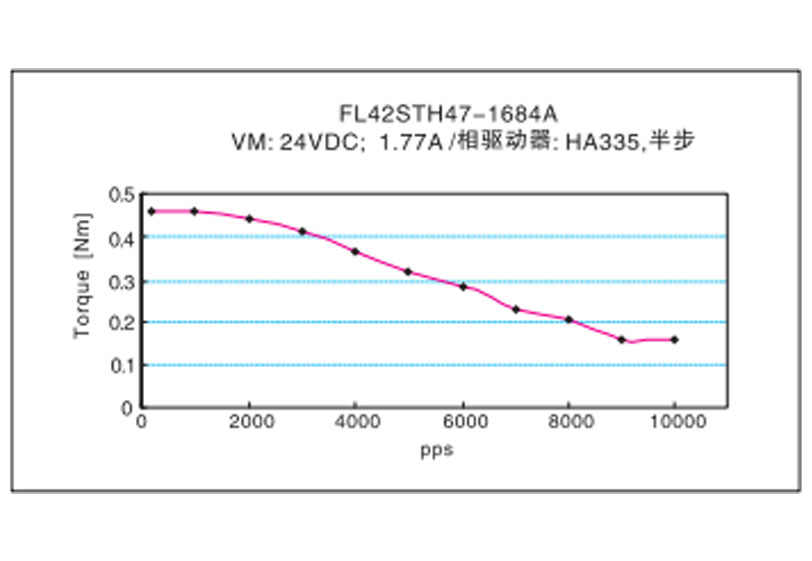

Frequency-torque Characteristics
